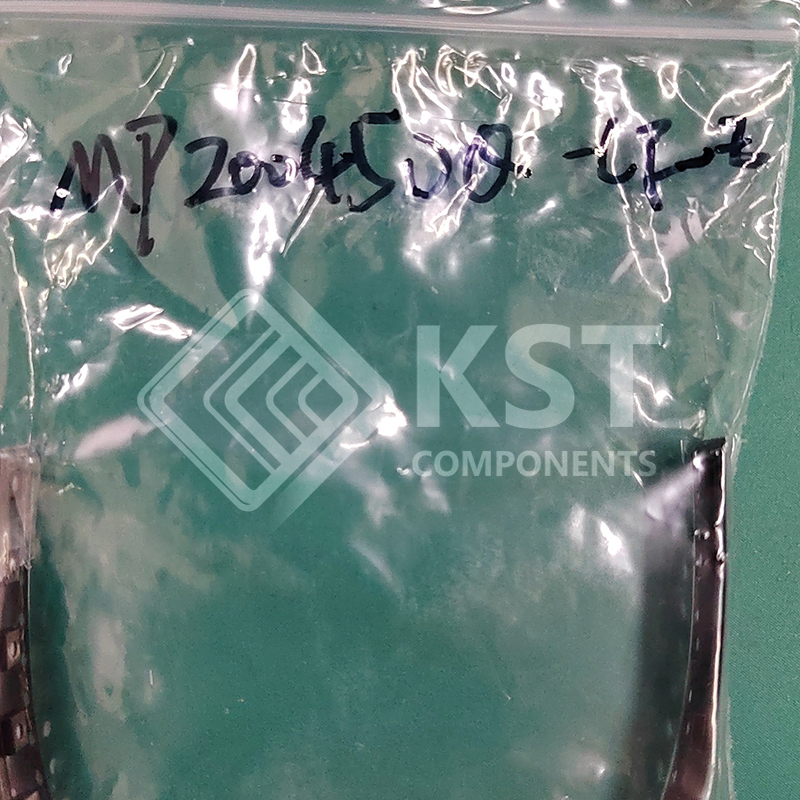

    MP20045DQ-LF-Z

    The MP20045 is a low-dropout linear regulator
    supplies up to 1A current with 140mV dropout
    voltage. The output voltage is set externally
    which ranges from 1.5V to 5V by operating from
    +2.5V to +5.5V input or can be preset internally
    from 1.5V to 5V.
    An internal PMOS pass element is used to
    allow a low 110μA ground current, making the
    MP20045 suitable for battery-power devices.
    Other features include low-power shutdown,
    short-circuit and thermal protection. The

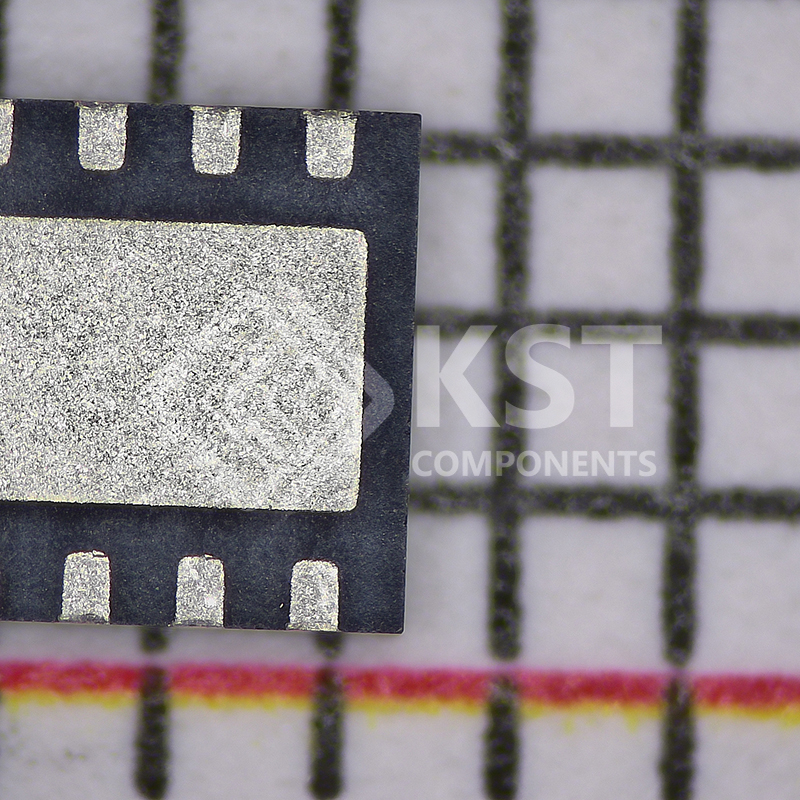

    MP20045 is available in 8-pin QFN (3mm x
    3mm) and SOIC8E packages.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

       Up to 1A Output Current
       Low 140mV Dropout at 1A
       Low 110μA Ground Current
       Fixed Output Versions Ranging from 1.5V to
      5V and Adjustable Versions
       Open Drain Power-Good Status Output
       13μVRMS Low Noise Output
       56dB PSRR at 1kHz
       Current Limiting and Thermal Protection
       3mm×3mm QFN8 and SOIC8E Packages
