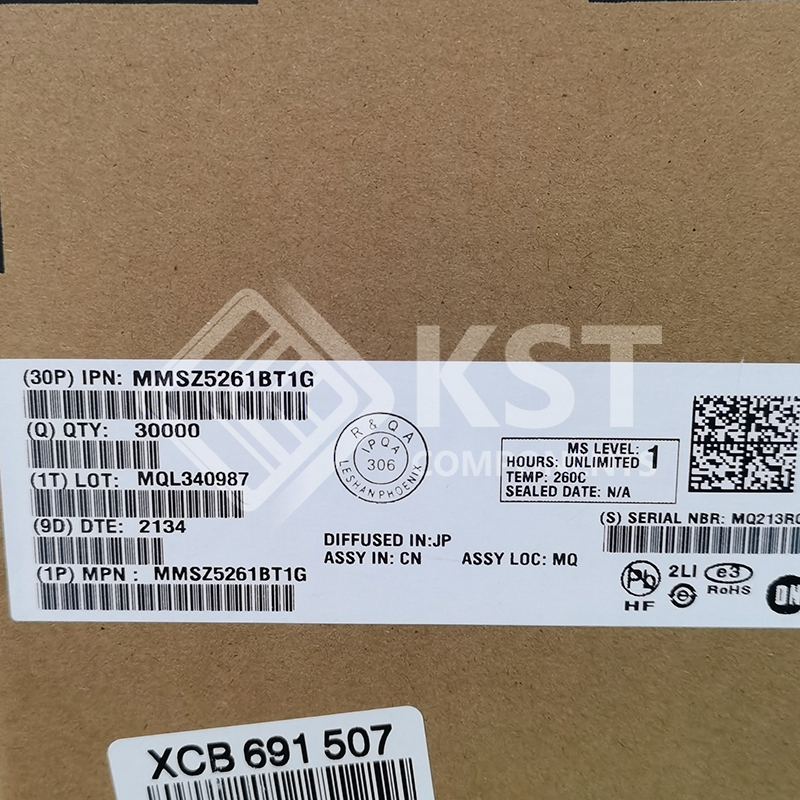

MMSZ5261BT1G
INQUIRY ONLINE
|
Category
|
Discrete Semiconductor Products
Diodes
Zener
Single Zener Diodes
|
|
|
Mfr
|
onsemi
|
|
|
Series
|
MMSZ52xxxT1G
|
|
|
Packaging
|

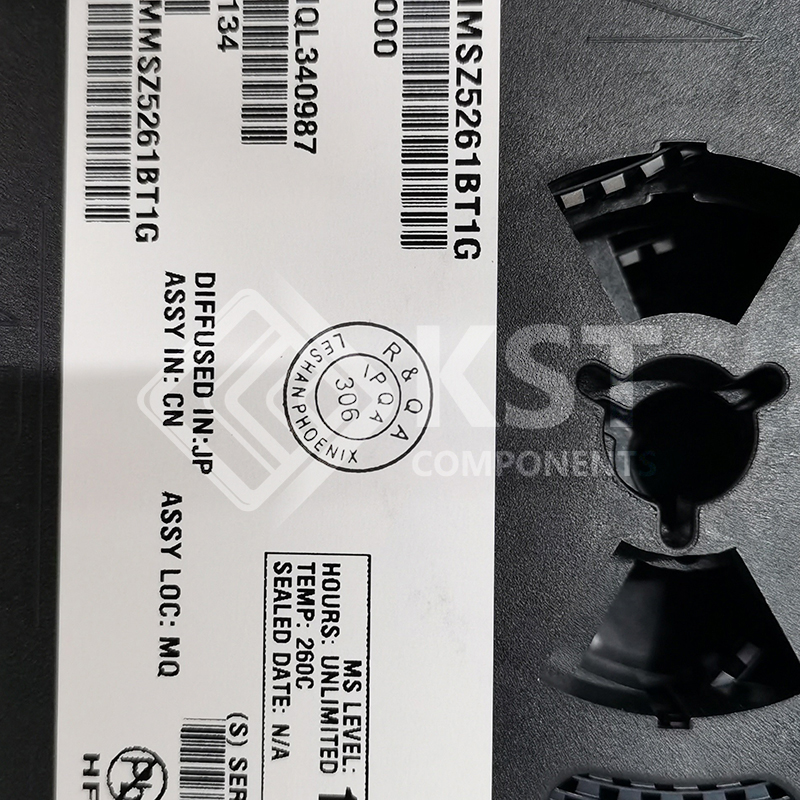

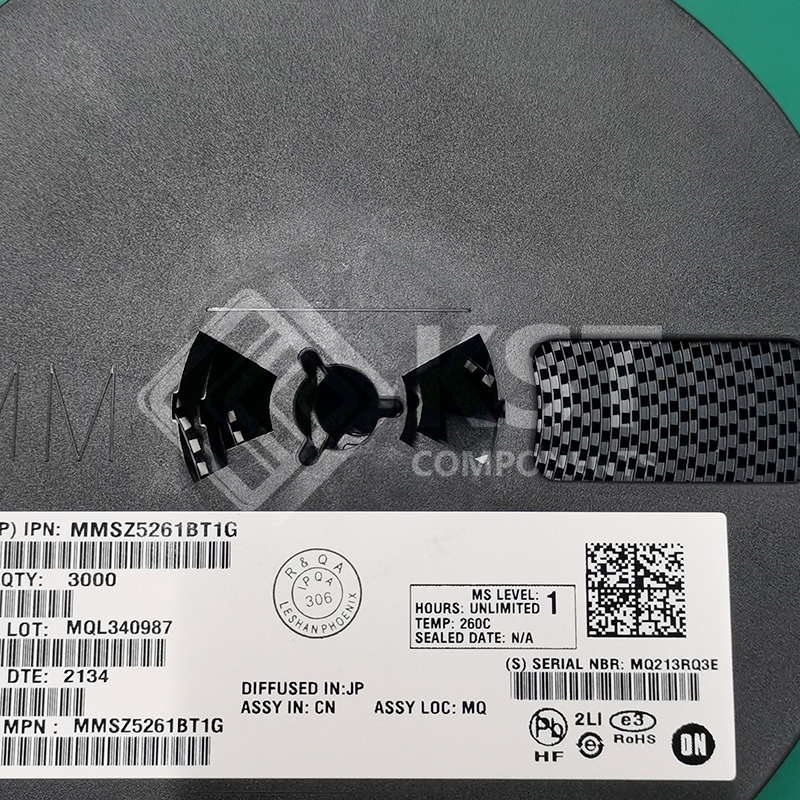

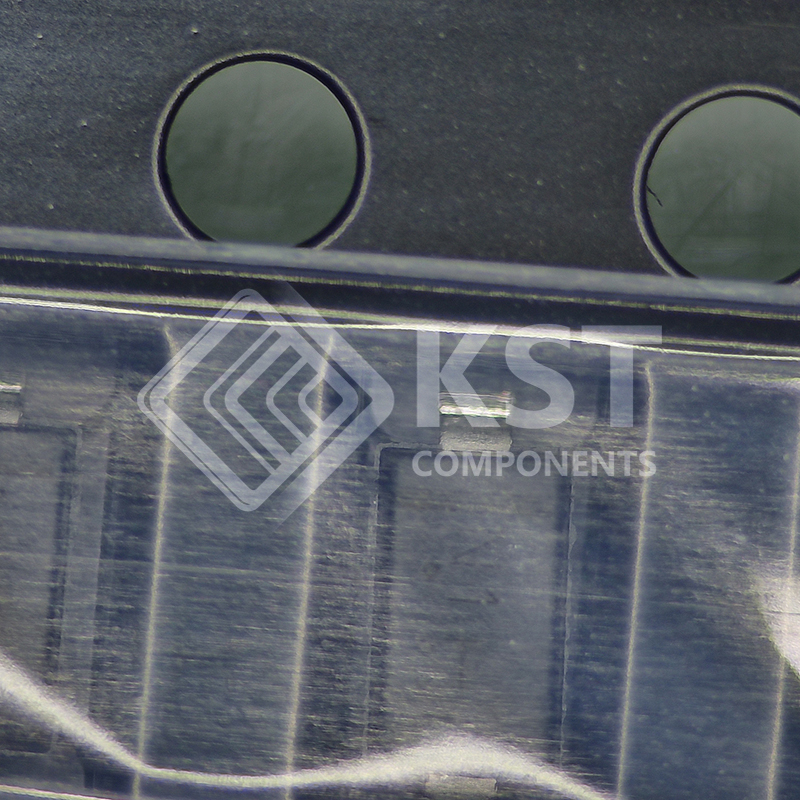

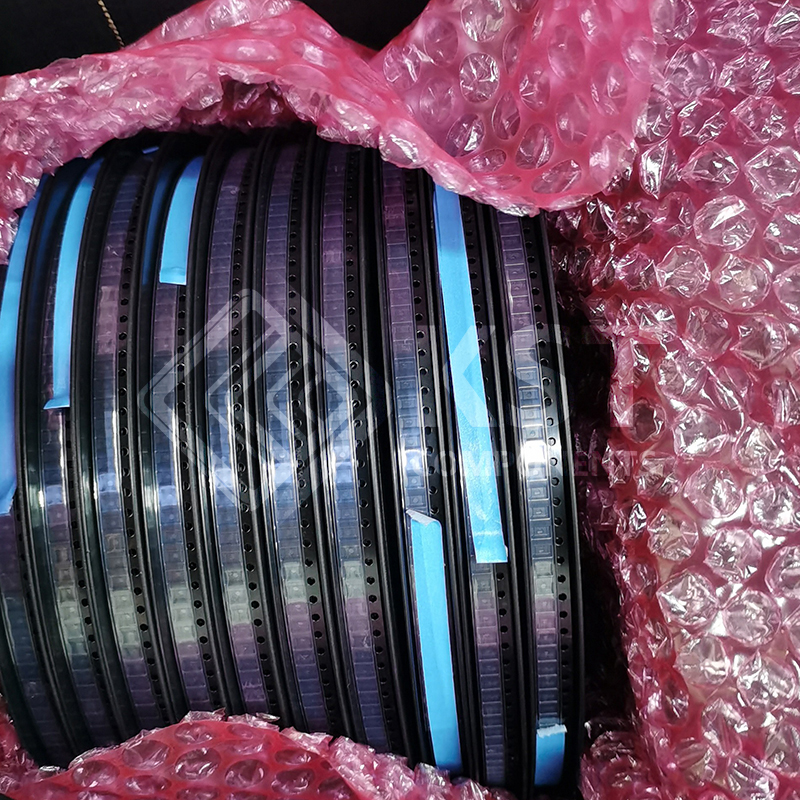

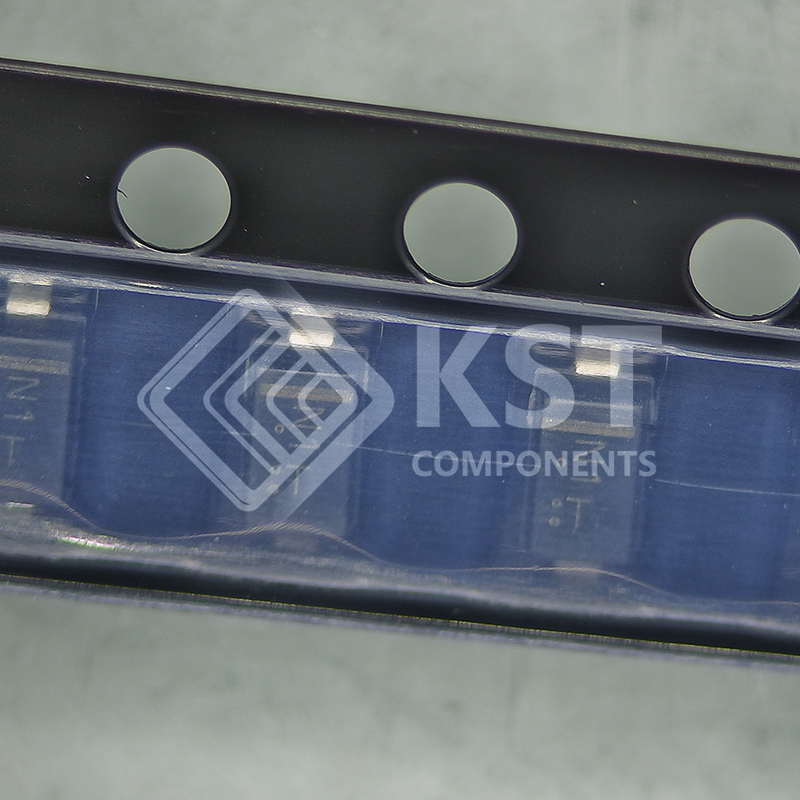

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Voltage – Zener (Nom) (Vz)
|
47 V
|
|
|
Tolerance
|
±5%
|
|
|
Power – Max
|
500 mW
|
|
|
Impedance (Max) (Zzt)
|
105 Ohms
|
|
|
Current – Reverse Leakage @ Vr
|
100 nA @ 36 V
|
|
|
Voltage – Forward (Vf) (Max) @ If
|
900 mV @ 10 mA
|
|
|
Operating Temperature
|
-55°C ~ 150°C
|
|
|
Grade
|
–
|
|
|
Qualification
|
–
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|

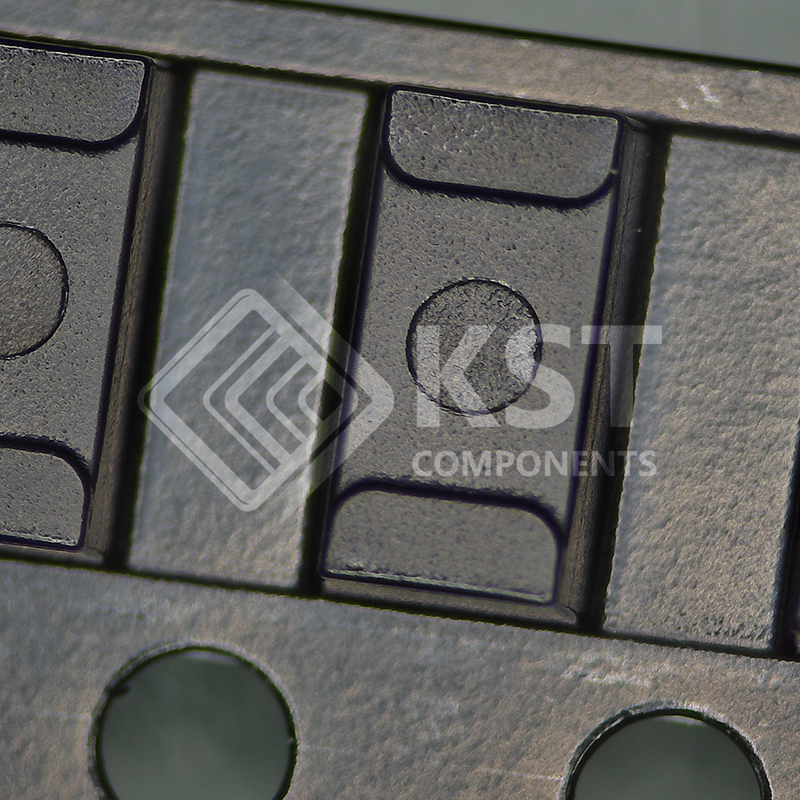

SOD-123
|
|
|
Supplier Device Package
|
SOD-123
|
|
|
Base Product Number
|
MMSZ526
|
