MMBT3904WT1G
INQUIRY ONLINE
|
Category
|
Discrete Semiconductor Products
Transistors
Bipolar (BJT)
Single Bipolar Transistors
|
|
|
Mfr
|
onsemi
|
|
|
Series
|
–
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Transistor Type
|
NPN
|
|
|
Current – Collector (Ic) (Max)
|
200 mA
|
|
|
Voltage – Collector Emitter Breakdown (Max)
|
40 V
|
|
|
Vce Saturation (Max) @ Ib, Ic
|
300mV @ 5mA, 50mA
|
|
|
Current – Collector Cutoff (Max)
|
–
|
|
|
DC Current Gain (hFE) (Min) @ Ic, Vce
|
100 @ 10mA, 1V
|
|
|
Power – Max
|
150 mW
|
|
|
Frequency – Transition
|
300MHz
|
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type
|
Surface Mount
|
|
|

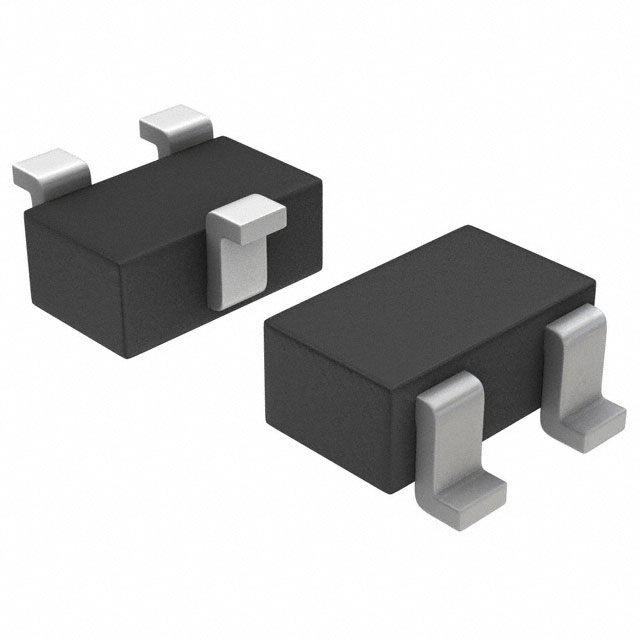

Package / Case
|
SC-70, SOT-323
|
|
|
Supplier Device Package
|
SC-70-3 (SOT323)
|
|
|
Base Product Number
|
MMBT3904
|
