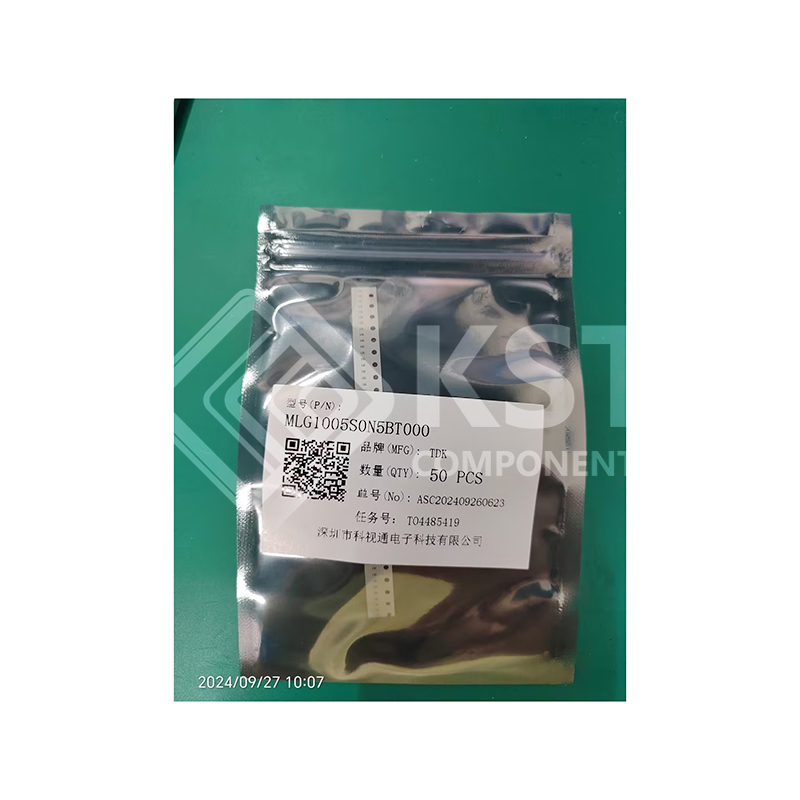

MLG1005S0N5BT000
INQUIRY ONLINE
|
Category
|
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr
|
TDK Corporation
|
|
|
Series
|
MLG
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Type
|
Multilayer
|
|
|
Material – Core
|
Ceramic, Non-Magnetic
|
|
|
Inductance
|
0.5 nH
|
|
|
Tolerance
|
±0.1nH
|
|
|
Current Rating (Amps)
|
1 A
|
|
|
Current – Saturation (Isat)
|
–
|
|
|
Shielding
|
Unshielded
|
|
|
DC Resistance (DCR)
|
100mOhm Max
|
|
|
Q @ Freq
|
–
|
|
|
Frequency – Self Resonant
|
10GHz
|
|
|
Ratings
|
–
|
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
|
Inductance Frequency – Test
|
100 MHz
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
0402 (1005 Metric)
|
|
|
Supplier Device Package
|
0402 (1005 Metric)
|
|
|
Size / Dimension
|
0.039″ L x 0.020″ W (1.00mm x 0.50mm)
|
|
|
Height – Seated (Max)
|
0.022″ (0.55mm)
|
