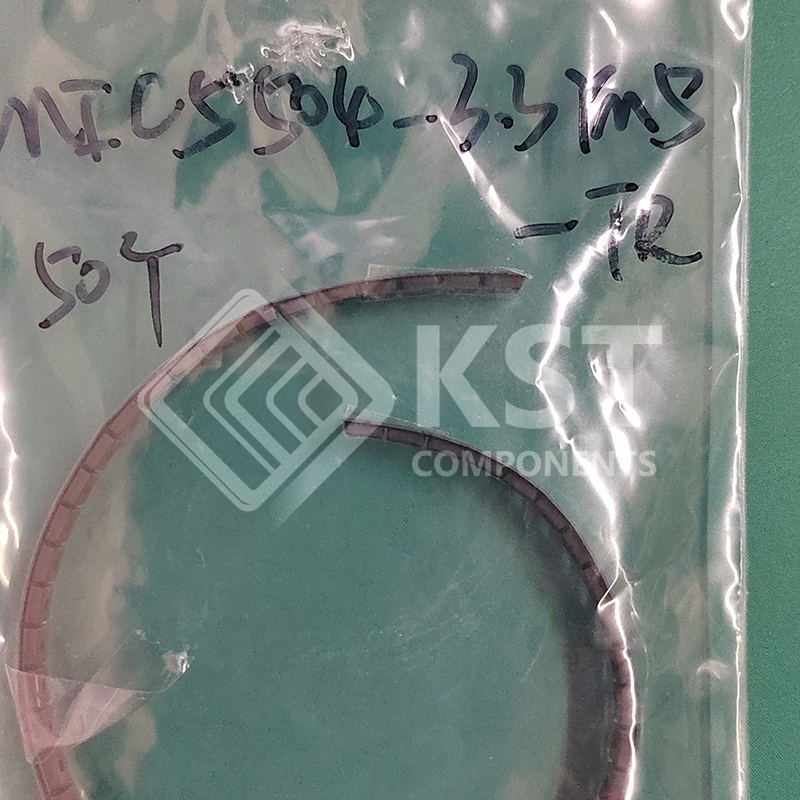

MIC5504-3.3YM5-TR

The MIC5501/2/3/4 is an advanced general-purpose
LDO ideal for powering general-purpose portable
devices. The MIC5501/2/3/4 family of products
provides a high-performance 300 mA LDO in an
ultra-small 1 mm x 1 mm package. The MIC5502 and
MIC5504 LDOs include an auto-discharge feature on
the output that is activated when the enable pin is low.
The MIC5503 and MIC5504 have an internal pull-down
resistor on the enable pin that disables the output when
the enable pin is left floating. This is ideal for
applications where the control signal is floating during
processor boot up.
Ideal for battery-powered applications, the
MIC5501/2/3/4 offers 2% initial accuracy, low dropout
voltage (160 mV at 300 mA), and low ground current
(typically 38 μA). The MIC5501/2/3/4 can also be put
into a zero-off-mode current state, drawing virtually no
current when disabled.
The MIC5501/2/3/4 has an operating junction
temperature range of –40°C to +125°C.


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    • Input Voltage Range: 2.5V to 5.5V
    • Fixed Output Voltages from 1.0V to 3.3V
    • 300 mA Guaranteed Output Current
    • High Output Accuracy (±2%)
    • Low Quiescent Current: 38 μA
    • Stable with 1 μF Ceramic Output Capacitors
    • Low Dropout Voltage: 160 mV @ 300 mA
    • Output Discharge Circuit: MIC5502, MIC5504
    • Internal Enable Pull-Down: MIC5503, MIC5504
    • Thermal-Shutdown and Current-Limit Protection
    • 4-Lead 1.0 mm x 1.0 mm Thin DFN Package

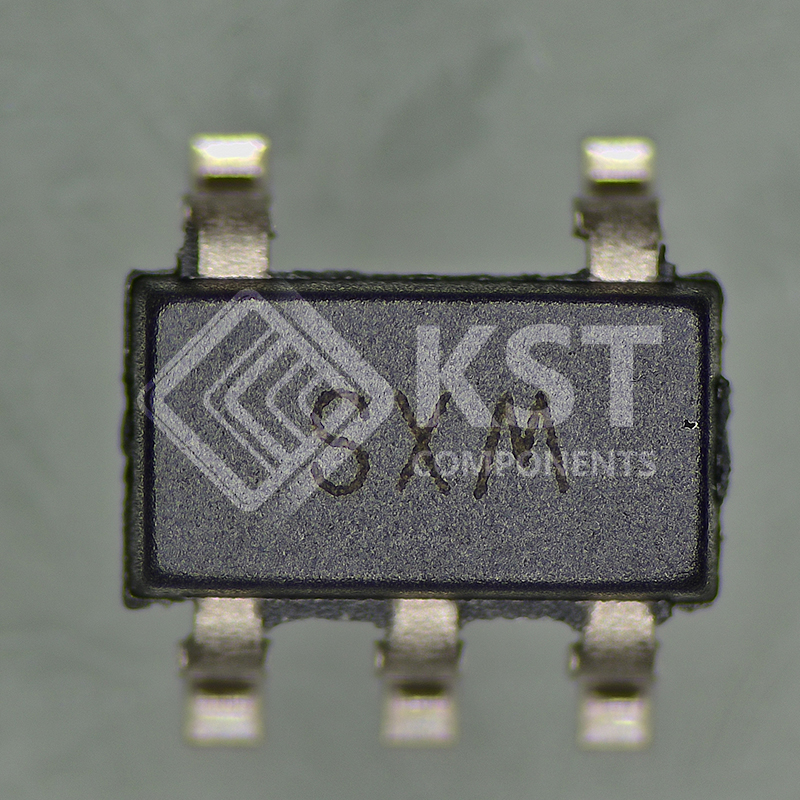

    • MIC5501/4 5-Lead SOT23 Package
