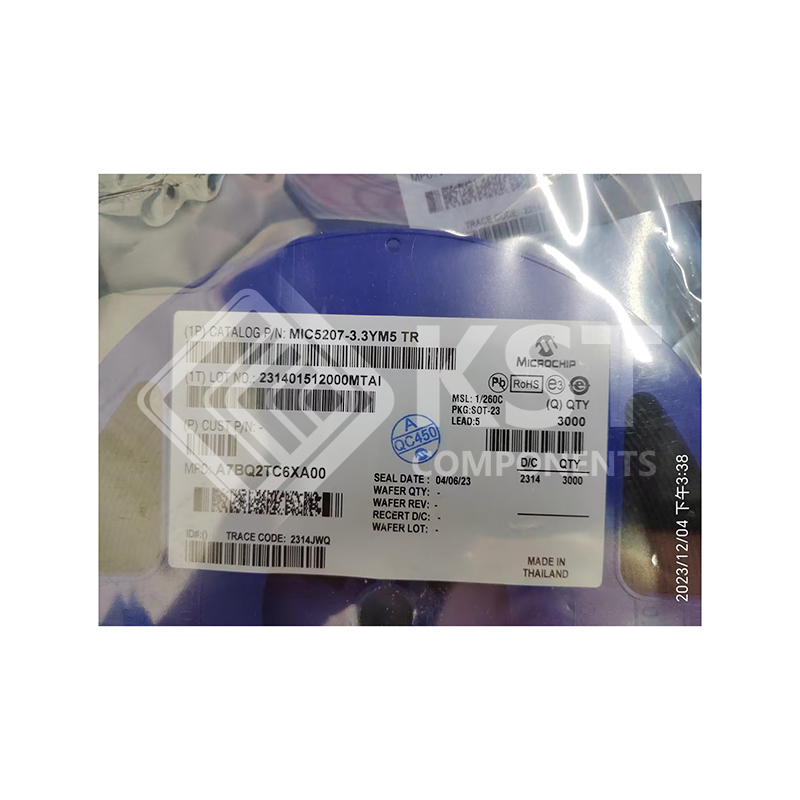

MIC5207-3.3YM5-TR

The MIC5207 is an efficient linear voltage regulator
with ultra-low-noise output, very low dropout voltage
(typically 17 mV at light loads and 165 mV at 150 mA),
and very low ground current (720 µA at 100 mA
output). The MIC5207 offers better than 3% initial
accuracy.
Designed especially for hand-held, battery-powered
devices, the MIC5207 includes a CMOS or TTL
compatible enable/shutdown control input. When in
shutdown, power consumption drops nearly to zero.
Key MIC5207 features include a reference bypass pin
to improve its already low-noise performance,
reversed-battery protection, current limiting, and over
temperature shutdown.
The MIC5207 is available in fixed and adjustable output
voltage versions in a small SOT-23-5 package. Contact
Microchip for details.
For low-dropout regulators that are stable with ceramic
output capacitors, see the µCap MIC5245/6/7 family


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    • Output Voltage Range: 1.8V – 15V
    • Ultra-Low-Noise Output
    • High Output Voltage Accuracy
    • Guaranteed 180 mA Output
    • Low Quiescent Current
    • Low Dropout Voltage
    • Extremely Tight Load and Line Regulation
    • Very Low Temperature Coefficient
    • Current and Thermal Limiting
    • Reversed-Battery Protection
    • “Zero” Off-Mode Current
    • Logic-Controlled Electronic Enable
