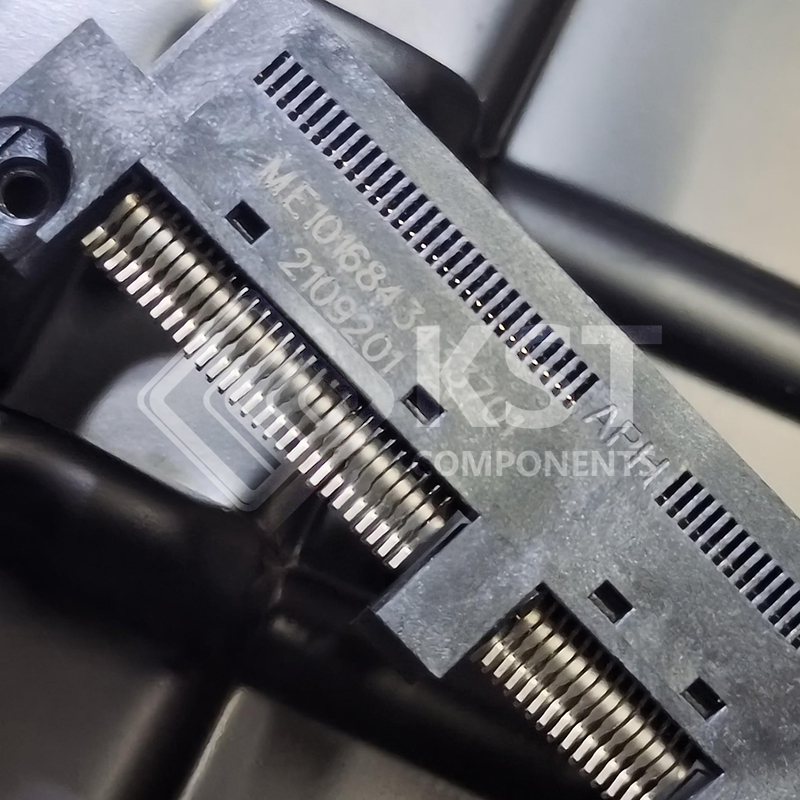

ME1016843433701
INQUIRY ONLINE
|
Category
|
Connectors, Interconnects
Card Edge Connectors
Edgeboard Connectors
|
|
|
Manufacturer
|
Amphenol ICC (FCI)
|
|
|
Series
|
Mini Cool Edge 0.60mm
|
|
|

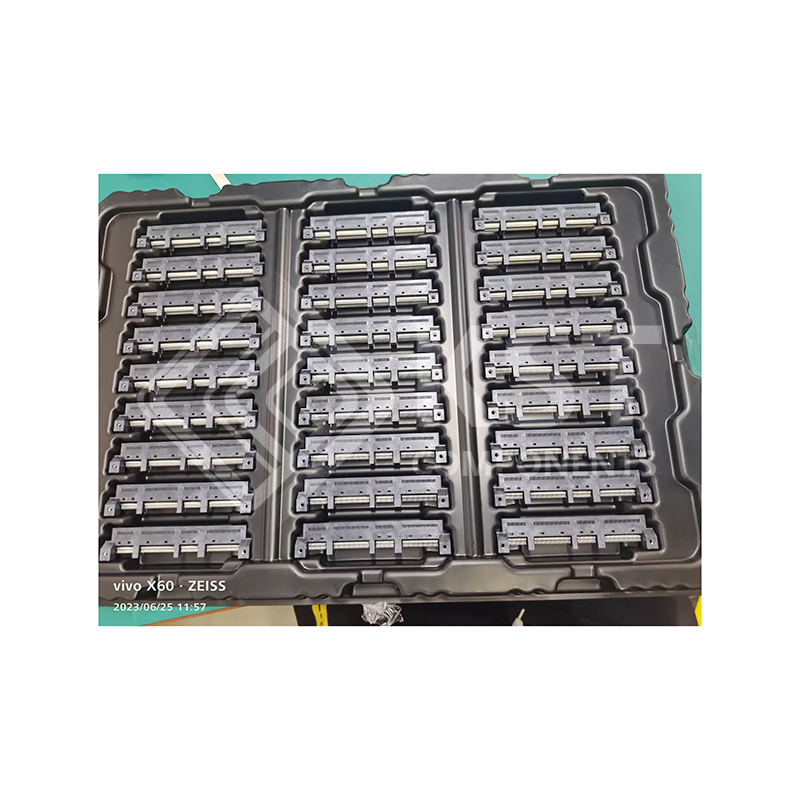

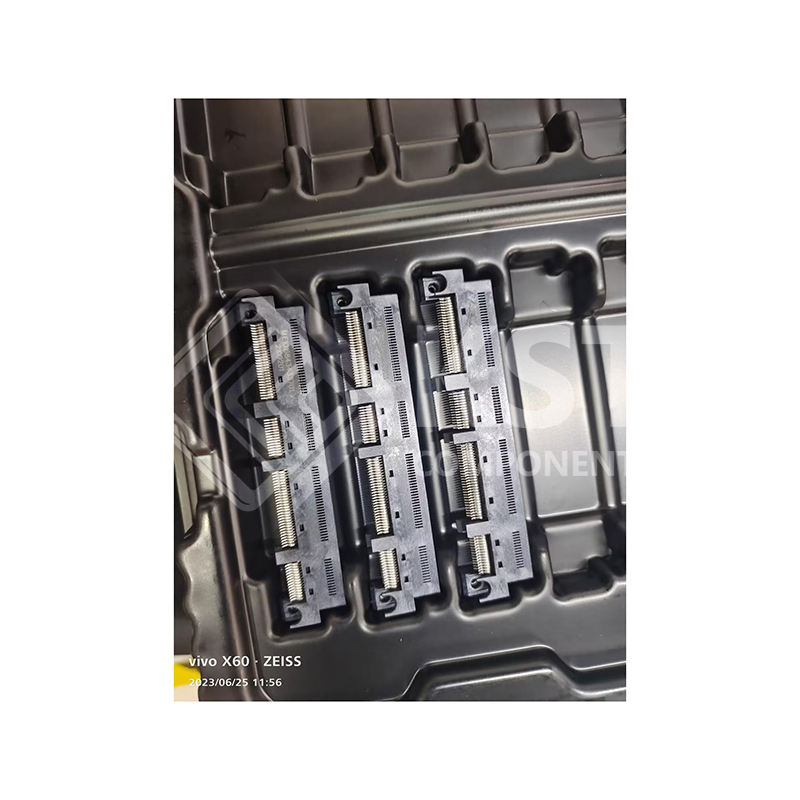

Packaging
|
Tray
|
|
|
Part Status
|
Active
|
|
|
Card Type
|
Non Specified – Dual Edge
|
|
|
Gender
|
Female
|
|
|
Number of Positions/Bay/Row
|
14; 28; 14; 28
|
|
|
Number of Positions
|
168
|
|
|
Card Thickness
|
0.062″ (1.57mm)
|
|
|
Number of Rows
|
2
|
|
|
Pitch
|
0.024″ (0.60mm)
|
|
|
Read Out
|
Dual
|
|
|
Features
|
–
|
|
|
Mounting Type
|
Board Edge, Straddle Mount
|
|
|
Termination
|
Solder
|
|
|
Contact Material
|
Copper Alloy
|
|
|
Contact Finish
|
Gold
|
|
|
Contact Finish Thickness
|
30.0µin (0.76µm)
|
|
|
Contact Type
|
–
|
|
|
Color
|
Black
|
|
|
Flange Feature
|
Straddle Mount Opening, Unthreaded, 0.087″ (2.20mm)
|
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
|
Material – Insulation
|
Thermoplastic
|
|
|
Base Product Number
|
ME101
|
