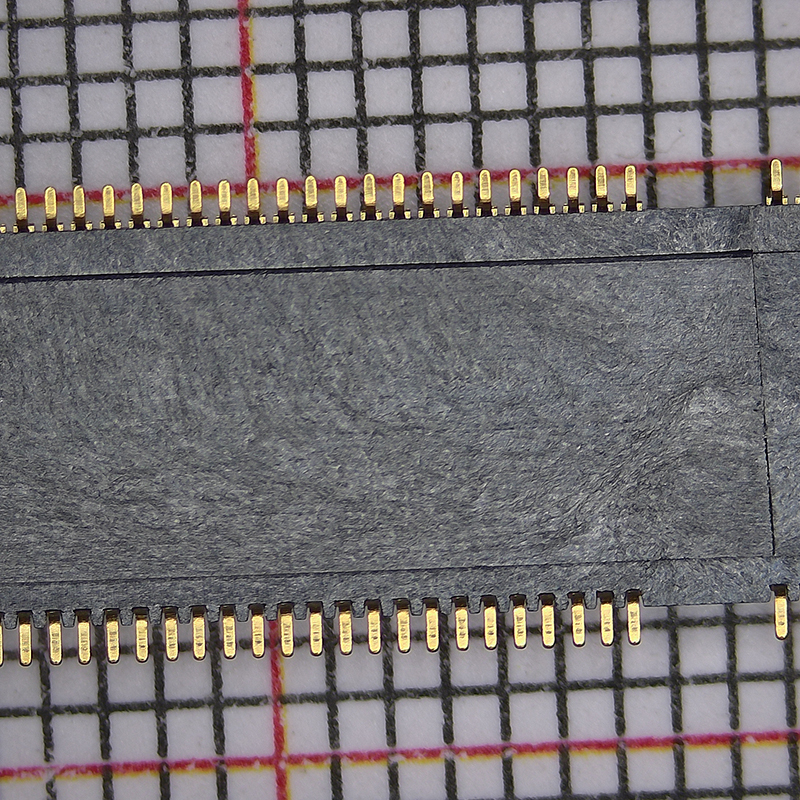

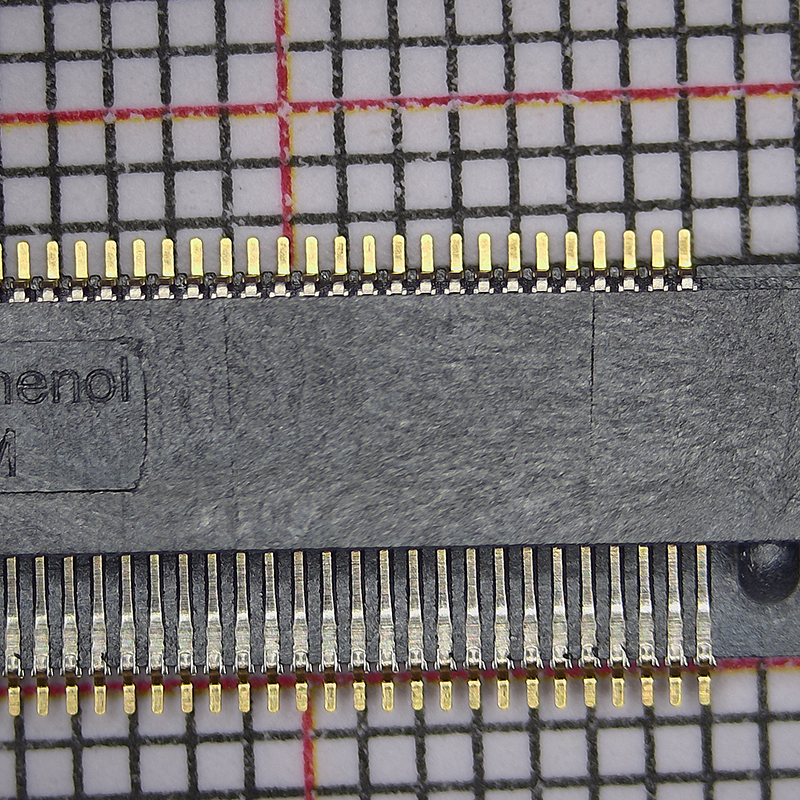

MDT275M03001
INQUIRY ONLINE
|
Category
|
Connectors, Interconnects
Card Edge Connectors
Edgeboard Connectors
|
|
|
Manufacturer
|
Amphenol ICC (FCI)
|
|
|
Series
|
M.2
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Card Type
|
M.2 (NGFF) Mini Card
|
|
|
Gender
|
Female
|
|
|
Number of Positions/Bay/Row
|
–
|
|
|
Number of Positions
|
67
|
|
|
Card Thickness
|
–
|
|
|
Number of Rows
|
2
|
|
|
Pitch
|
0.020″ (0.50mm)
|
|
|
Read Out
|
Dual
|
|
|
Features
|
Board Lock, Keyed M
|
|
|
Mounting Type
|
Surface Mount, Right Angle
|
|
|
Termination
|
Solder
|
|
|
Contact Material
|
Copper Alloy
|
|
|
Contact Finish
|
Gold
|
|
|
Contact Finish Thickness
|
Flash
|
|
|
Contact Type
|
–
|
|
|
Color
|
Black
|
|
|
Flange Feature
|
–
|
|
|
Operating Temperature
|
-40°C ~ 80°C
|
|
|
Material – Insulation
|
Liquid Crystal Polymer (LCP)
|
|
|
Base Product Number
|
MDT275
|
