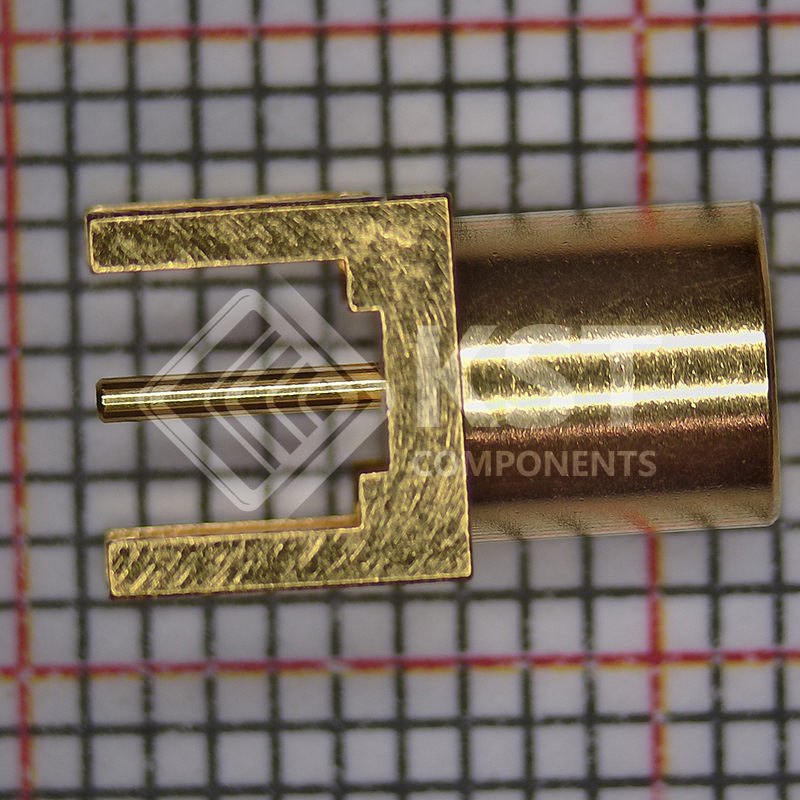

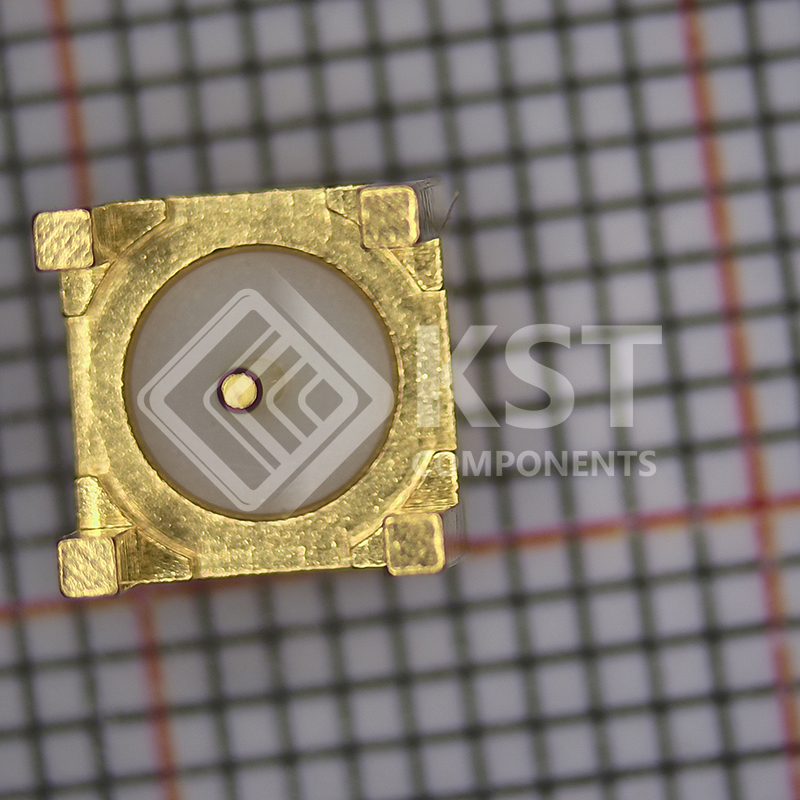

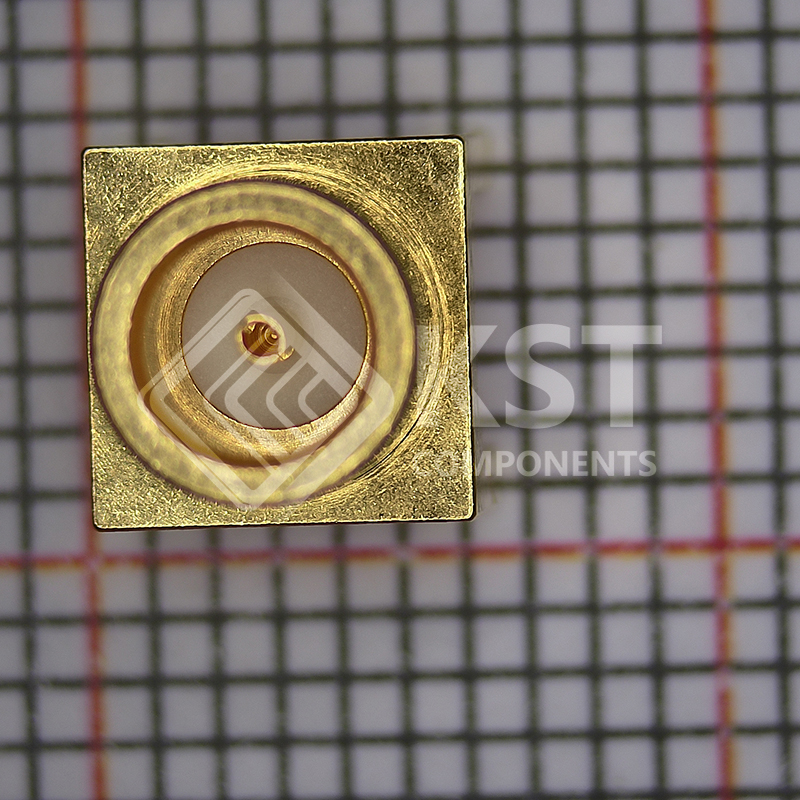

MCX7-J-P-H-ST-TH1
INQUIRY ONLINE
|
Category
|
Connectors, Interconnects
Coaxial Connectors (RF)
Coaxial Connector (RF) Assemblies
|
|
|
Mfr
|
Samtec Inc.
|
|
|
Series
|
MCX
|
|
|

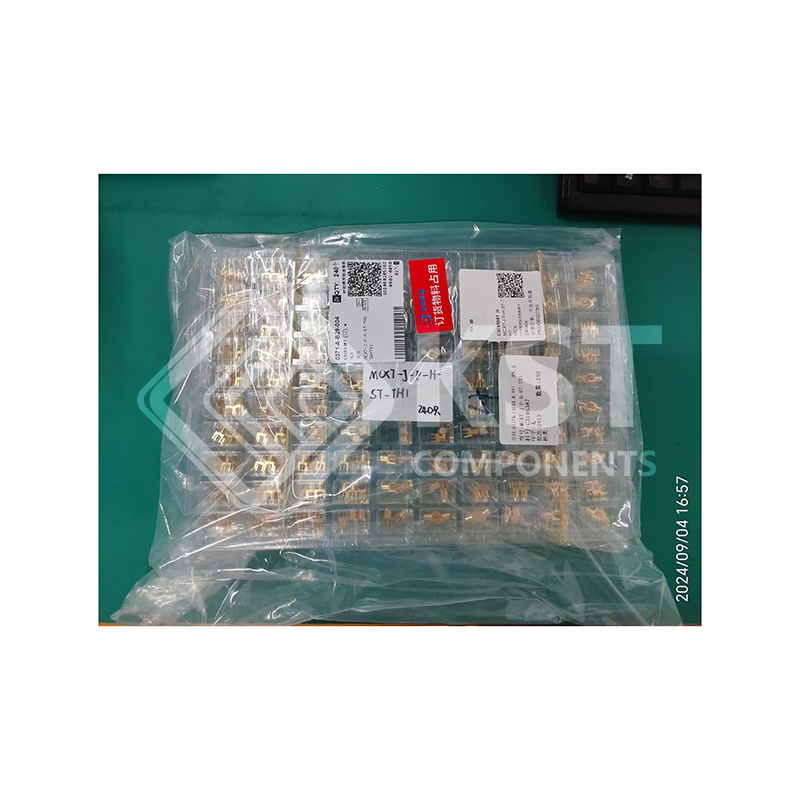

Packaging
|
Tray
|
|
|
Part Status
|
Active
|
|
|
Connector Style
|
MCX
|
|
|
Connector Type
|
Jack, Female Socket
|
|
|
Contact Termination
|
Solder
|
|
|
Shield Termination
|
Solder
|
|
|
Impedance
|
75 Ohms
|
|
|
Mounting Type
|
Through Hole
|
|
|
Mounting Feature
|
–
|
|
|
Cable Group
|
–
|
|
|
Fastening Type
|
Snap-On
|
|
|
Frequency – Max
|
6 GHz
|
|
|
Number of Ports
|
1
|
|
|
Features
|
–
|
|
|
Housing Color
|
Gold
|
|
|
Ingress Protection
|
–
|
|
|
Center Contact Material
|
Beryllium Copper
|
|
|
Includes
|
–
|
|
|
Body Material
|
Brass
|
|
|
Body Finish
|
Gold
|
|
|
Center Contact Plating
|
Gold
|
|
|
Dielectric Material
|
Polytetrafluoroethylene (PTFE)
|
|
|
Operating Temperature
|
-65°C ~ 125°C
|
|
|
Voltage Rating
|
170 V
|
|
|
Mating Cycles
|
–
|
|
|
Insertion Loss
|
–
|
|
|
Base Product Number
|
MCX7-J
|
