• Thermocouple Electromotive Force (EMF) to °C
Converter:
– Integrated cold-junction compensation
– Integrated thermocouple open-circuit and
short-circuit detection (MCP9601/L01/RL01)
• Supported Types (designated by NIST ITS-90):
– Type K, J, T, N, S, E, B and R
• Sensor Accuracy for Thermocouple Hot-Junction:
– MCP9600/01 ±0.5°C/±1.5°C (typ./max.)
– MCP96L00/L01 ±2.0°C/±4.0°C (typ./max.)
– MCP96RL00/RL01 ±4.0°C/±8.0°C (typ./max.)
• Measurement Resolution:
– Hot and cold-junctions: +0.0625°C (typical)
• Four Programmable Temperature Alert Outputs:
– Monitor hot or cold-junction temperatures
– Detect rising or falling temperatures
– Up to 255°C of programmable hysteresis
• Programmable Digital Filter for Temperature
• Low Power:
– Shutdown mode
– Burst mode: 1 to 128 temperature samples
• Two-Wire Interface: I2C Compatible, 100 kHz:
– Supports eight devices per I2C Bus
• Operating Voltage Range: 2.7V to 5.5V
• Operating Current: 300 µA (typical)
• Shutdown Current: 2 µA (typical)

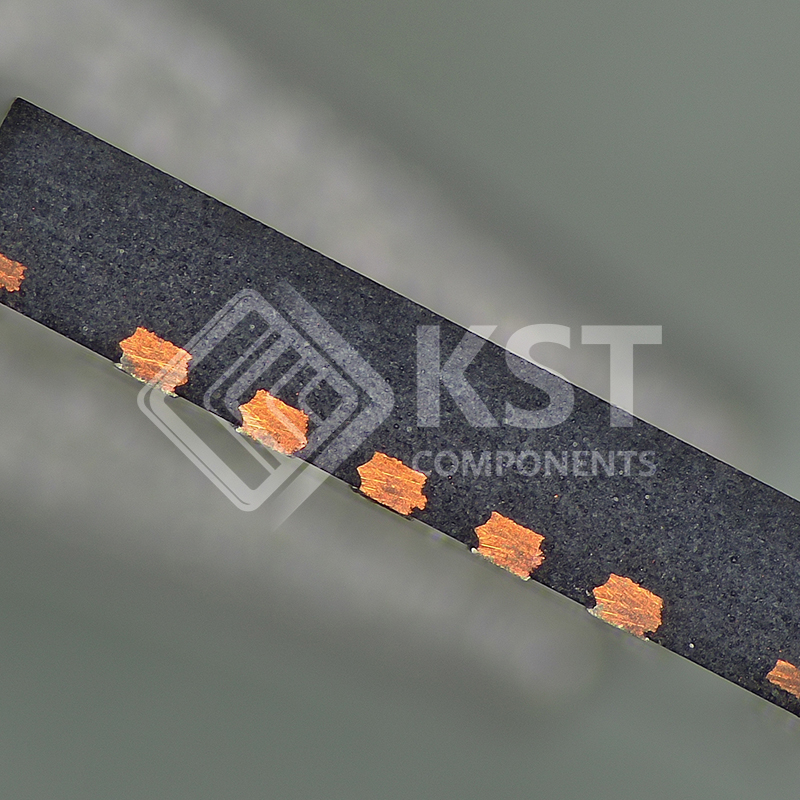

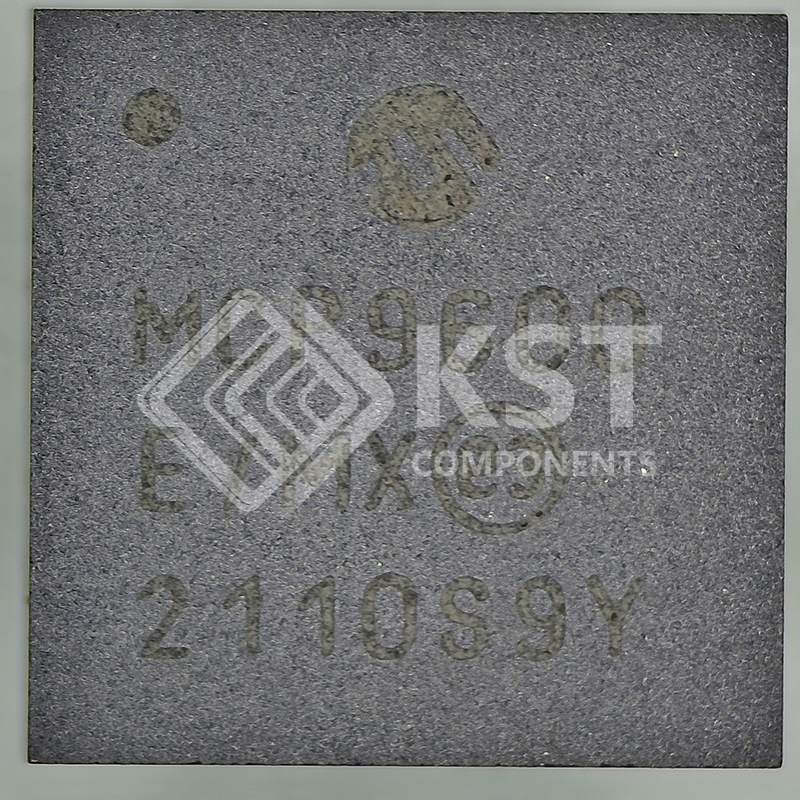

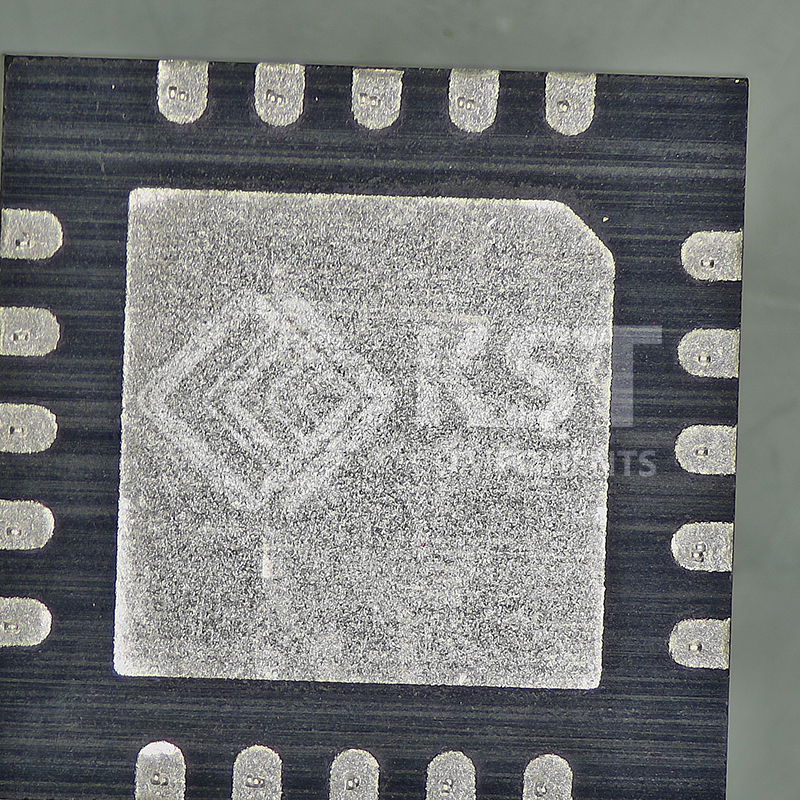

• Package: 20-Lead MQFN
