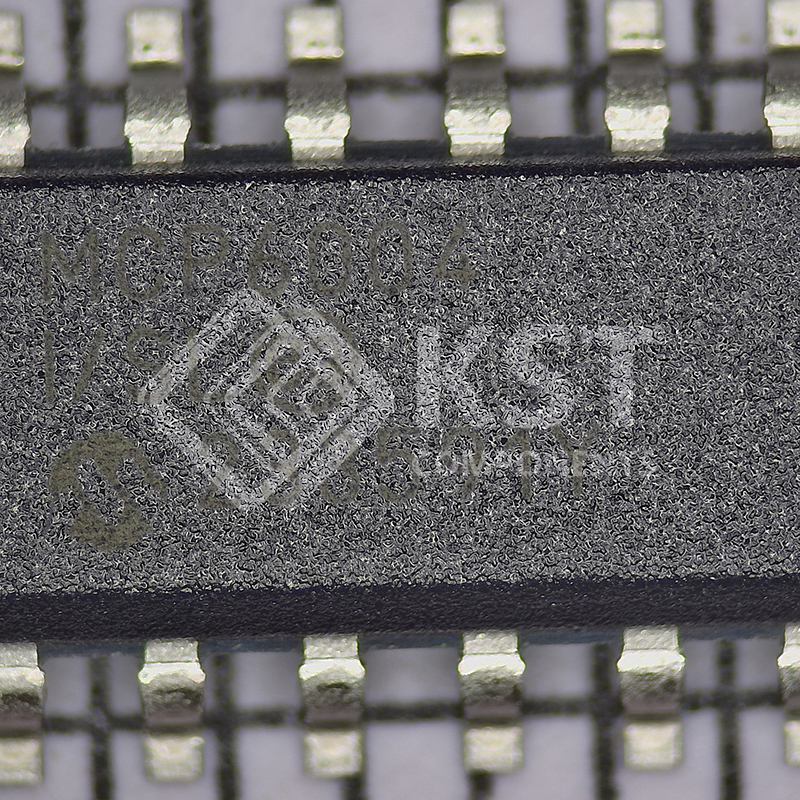

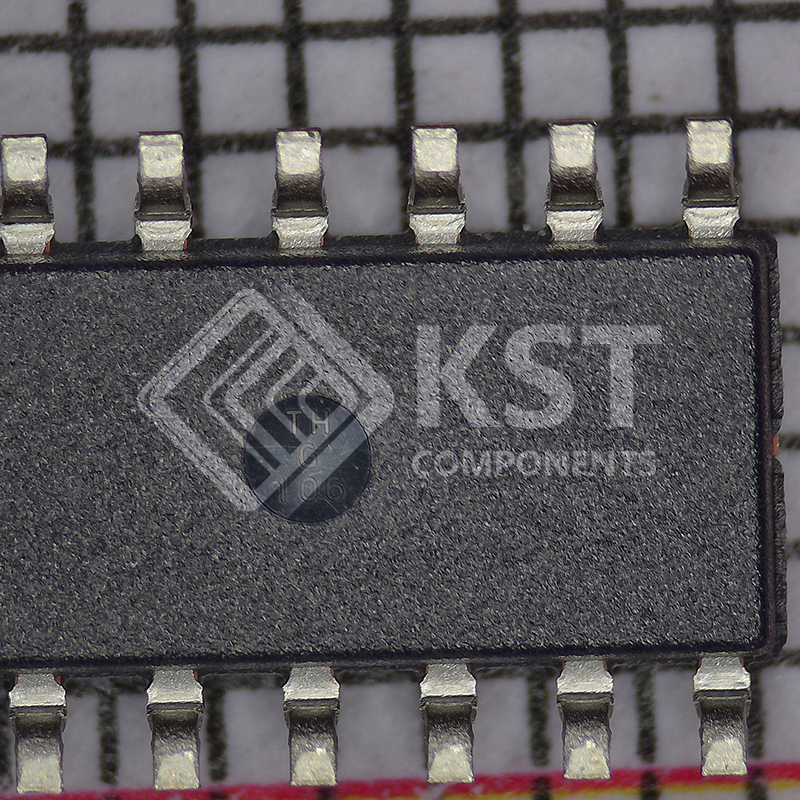

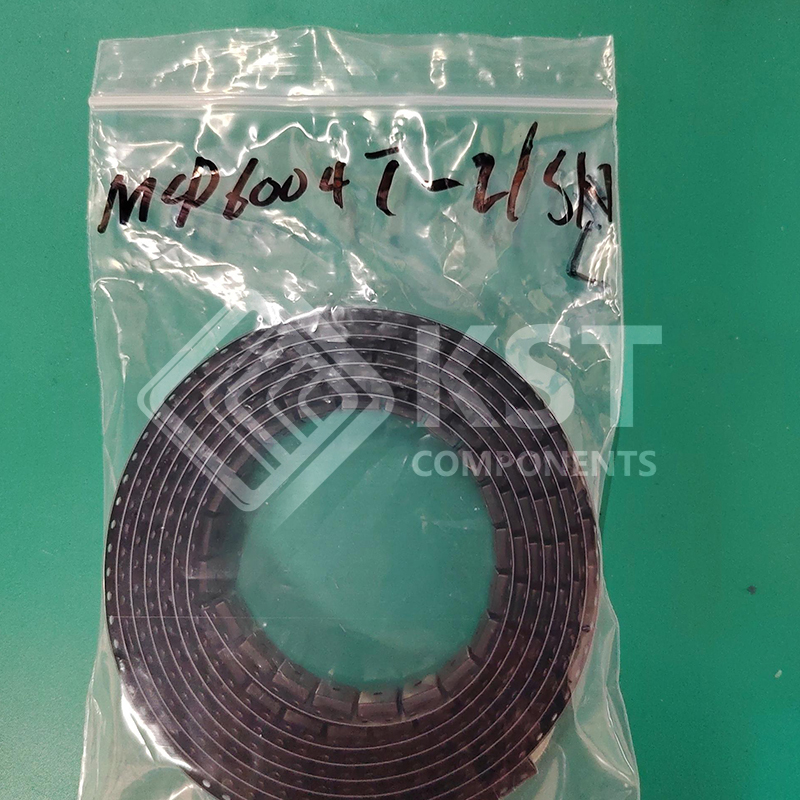

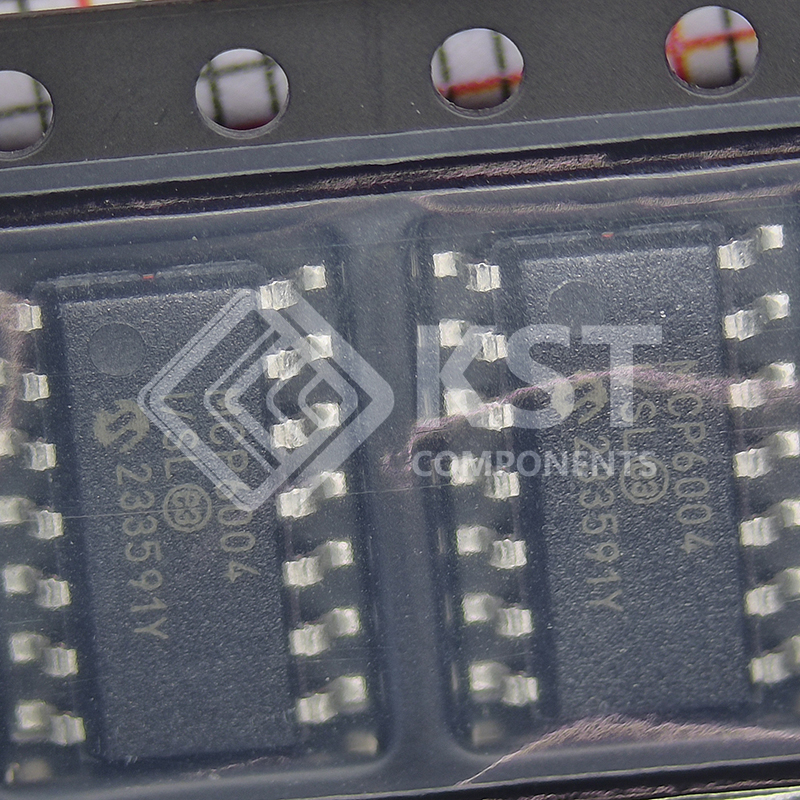

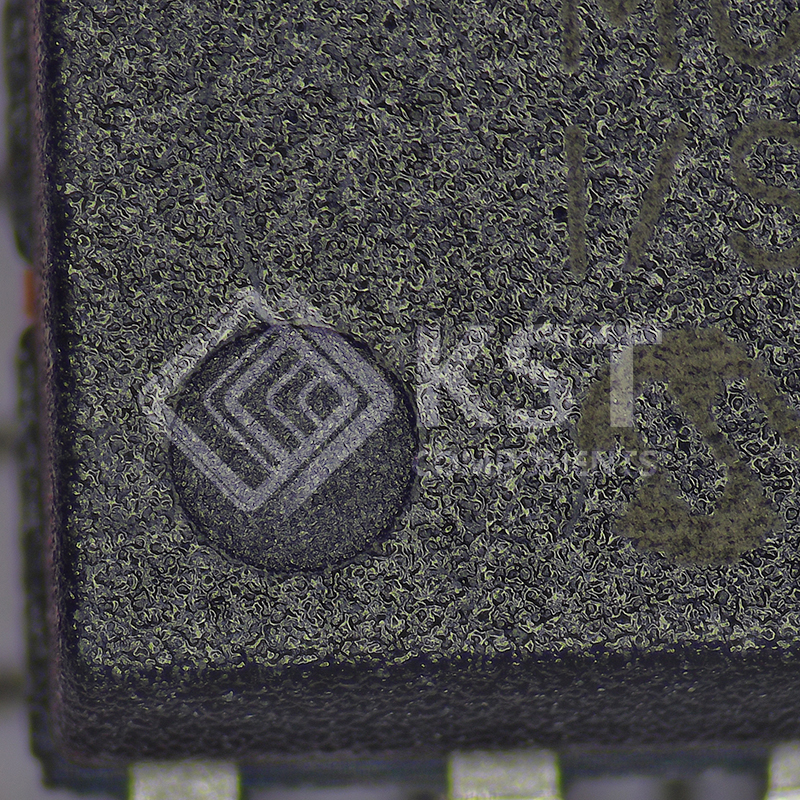

MCP6004T-I/SL

The Microchip Technology Inc. MCP6001/2/4 family of
operational amplifiers (op amps) is specifically
designed for general purpose applications. This family
has a 1 MHz Gain Bandwidth Product (GBWP) and 90°
phase margin (typical). It also maintains a 45° phase
margin (typical) with a 500 pF capacitive load. This
family operates from a single-supply voltage as low as
1.8V, while drawing 100 µA (typical) quiescent current.
Additionally, the MCP6001/2/4 supports rail-to-rail input
and output swing, with a Common-mode input voltage
range of VDD + 300 mV to VSS – 300 mV. This family of
op amps is designed with Microchip’s advanced CMOS
process.
The MCP6001/2/4 family is available in the industrial
and extended temperature ranges, with a power supply
range of 1.8V to 6.0V.

Category:

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    • Available in 5-Lead SC-70 and 5-Lead SOT-23
    Packages
    • Gain Bandwidth Product: 1 MHz (typical)
    • Rail-to-Rail Input/Output
    • Supply Voltage: 1.8V to 6.0V
    • Supply Current: IQ = 100 µA (typical)
    • Phase Margin: 90° (typical)
    • Temperature Range:
    – Industrial: -40°C to +85°C
    – Extended: -40°C to +125°C
    • Available in Single, Dual and Quad Packages
