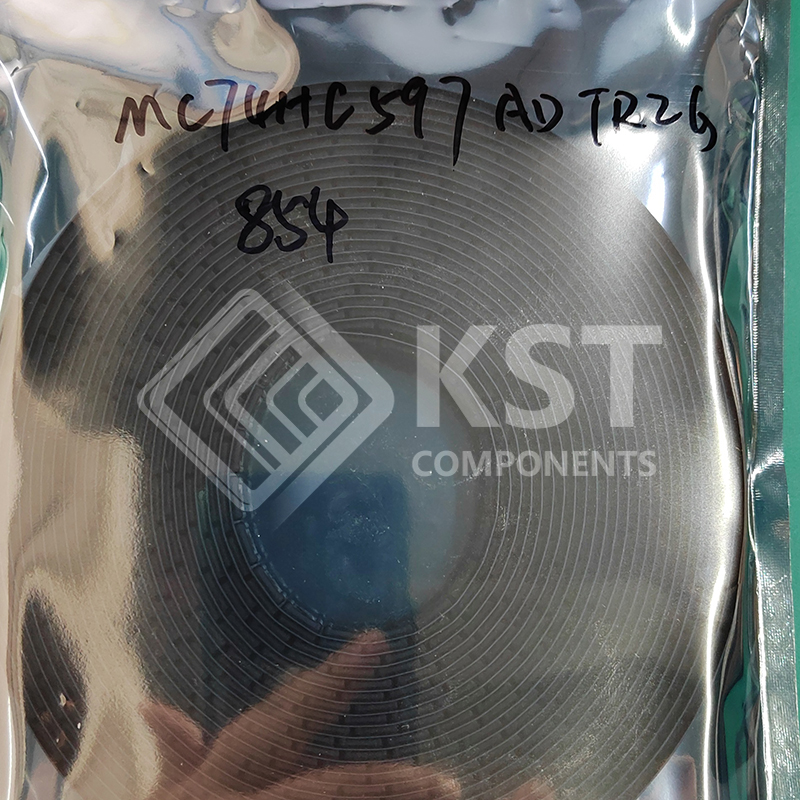

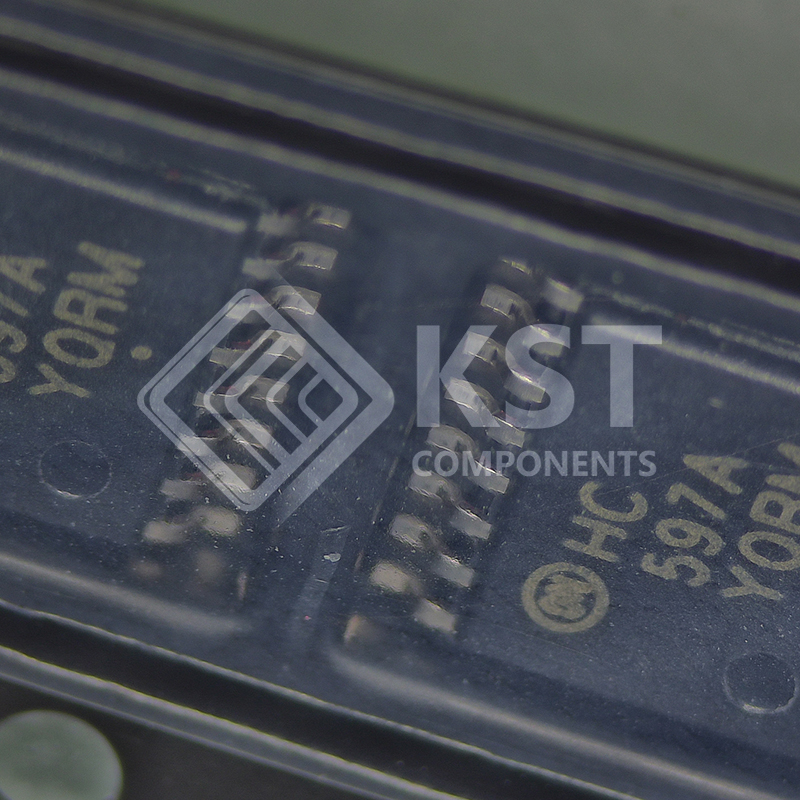

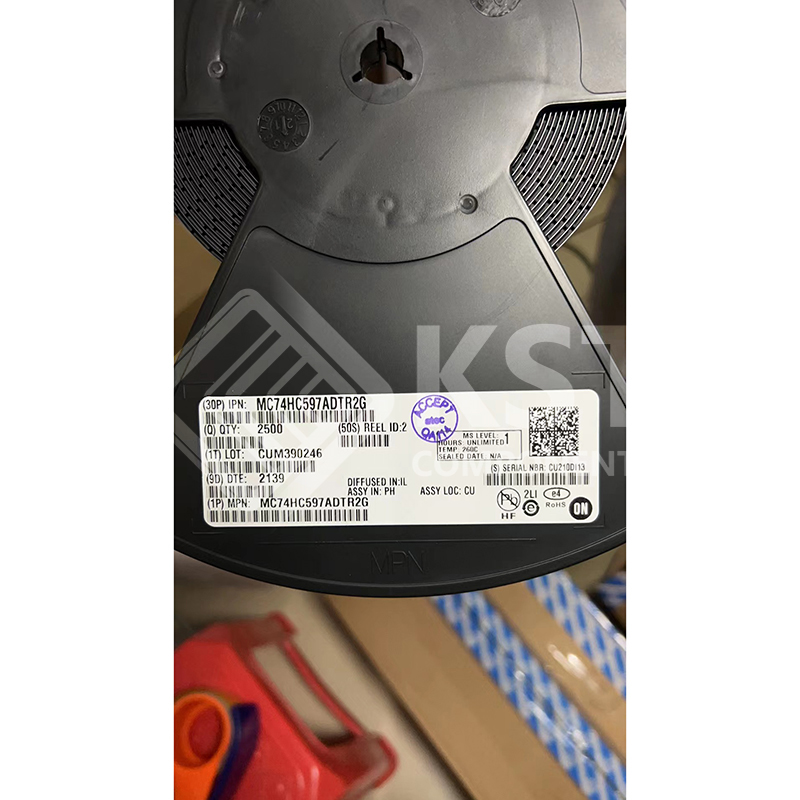

    MC74HC597ADTR2G

    The MC74HC597A is identical in pinout to the LS597. The device
    inputs are compatible with standard CMOS outputs; with pullup
    resistors, they are compatible with LSTTL outputs.
    This device consists of an 8−bit input latch which feeds parallel data
    to an 8−bit shift register. Data can also be loaded serially.
    The HC597A is similar in function to the HC589A, which is a
    3−state device.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      Output Drive Capability: 10 LSTTL Loads
       Outputs Directly Interface to CMOS, NMOS, and TTL
       Operating Voltage Range: 2.0 to 6.0 V
       Low Input Current: 1.0 A
       High Noise Immunity Characteristic of CMOS Devices
       In Compliance with the Requirements Defined by JEDEC Standard
      No. 7A
       Chip Complexity: 516 FETs or 129 Equivalent Gates
       These are Pb−Free Devices*
