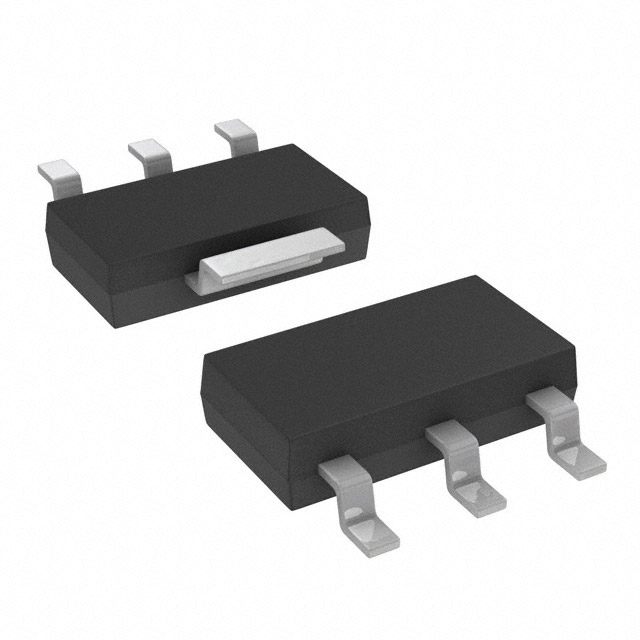

    MC33269ST-3.3T3G

    The MC33269/NCV33269 series are low dropout, medium current,
    fixed and adjustable, positive voltage regulators specifically designed
    for use in low input voltage applications. These devices offer the
    circuit designer an economical solution for precision voltage
    regulation, while keeping power losses to a minimum.
    The regulator consists of a 1.0 V dropout composite PNP−NPN pass
    transistor, current limiting, and thermal shutdown.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      • 3.3 V, 3.5 V, 5.0 V, 12 V and Adjustable Versions
      2.85 V version available as MC34268
      • Space Saving DPAK, SO−8 and SOT−223 Power Packages
      • 1.0 V Dropout
      • Output Current in Excess of 800 mA
      • Thermal Protection
      • Short Circuit Protection
      • Output Trimmed to 1.0% Tolerance
      • NCV Prefix for Automotive and Other Applications Requiring
      Unique Site and Control Change Requirements; AEC−Q100
      Qualified and PPAP Capable
      • These are Pb−Free Devices
