MBR1H100SFT3G

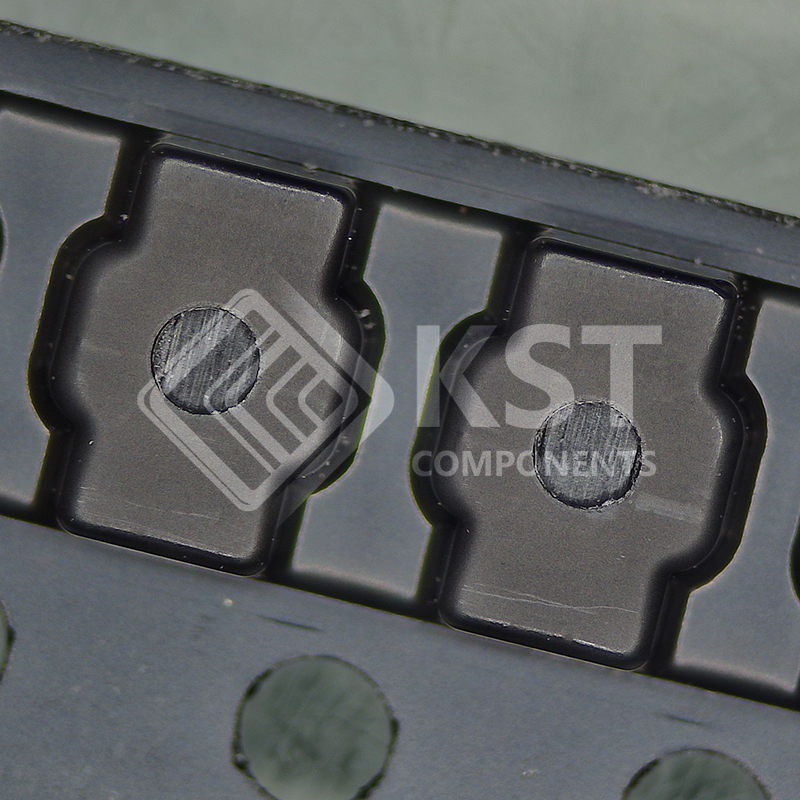

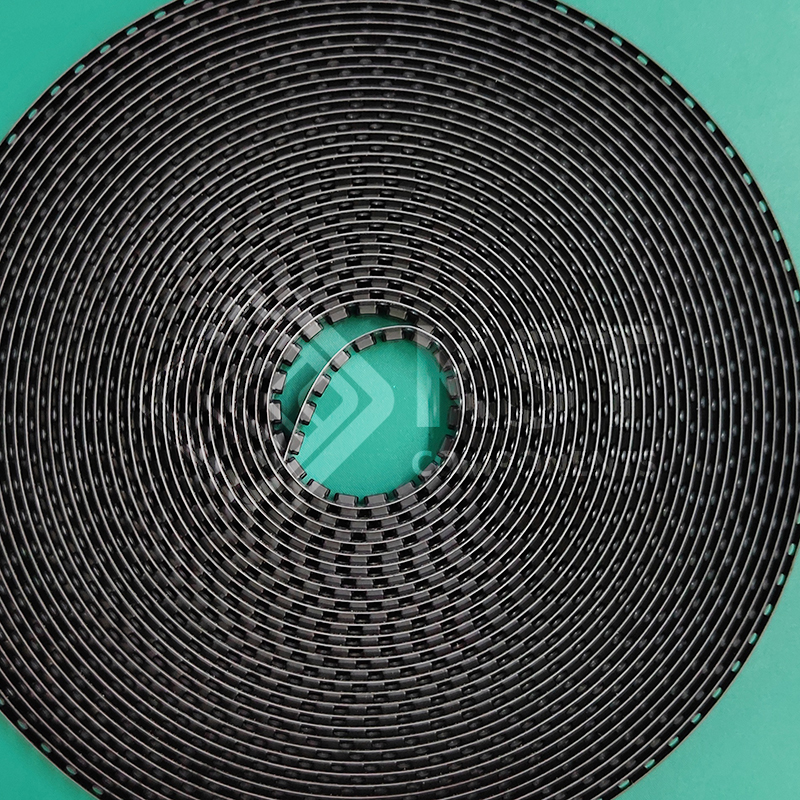

• Reel Options: MBR1H100SFT3G = 10,000 per 13 in reel/8 mm tape

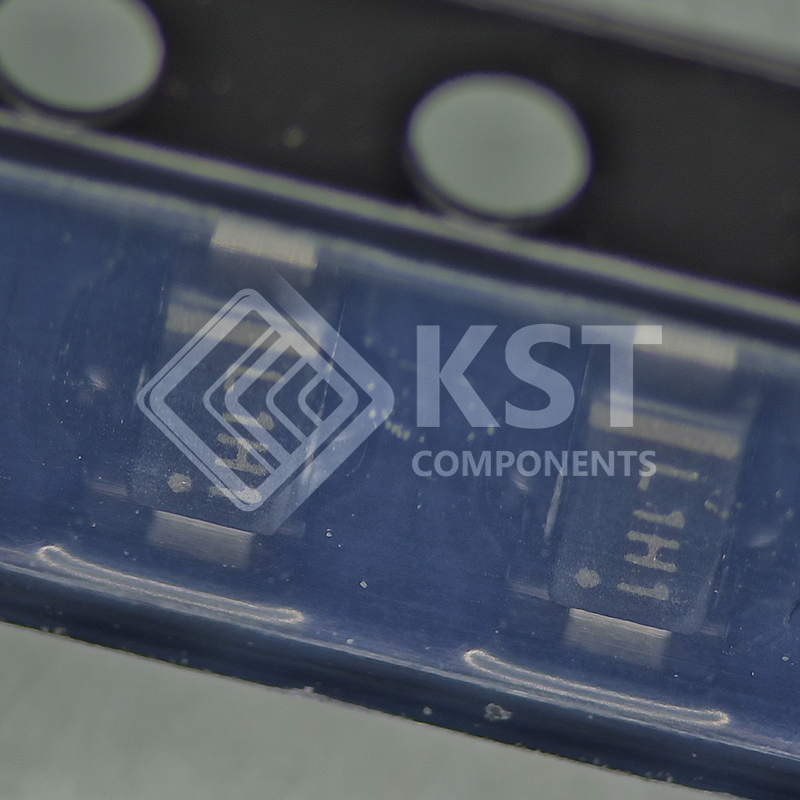

• Device Marking: L1H
• Polarity Designator: Cathode Band
• Weight: 11.7 mg (approximately)
• Case: Epoxy, Molded
• Lead Finish: 100% Matte Sn (Tin)
• Lead and Mounting Surface Temperature for Soldering Purposes:
260°C Max. for 10 Seconds

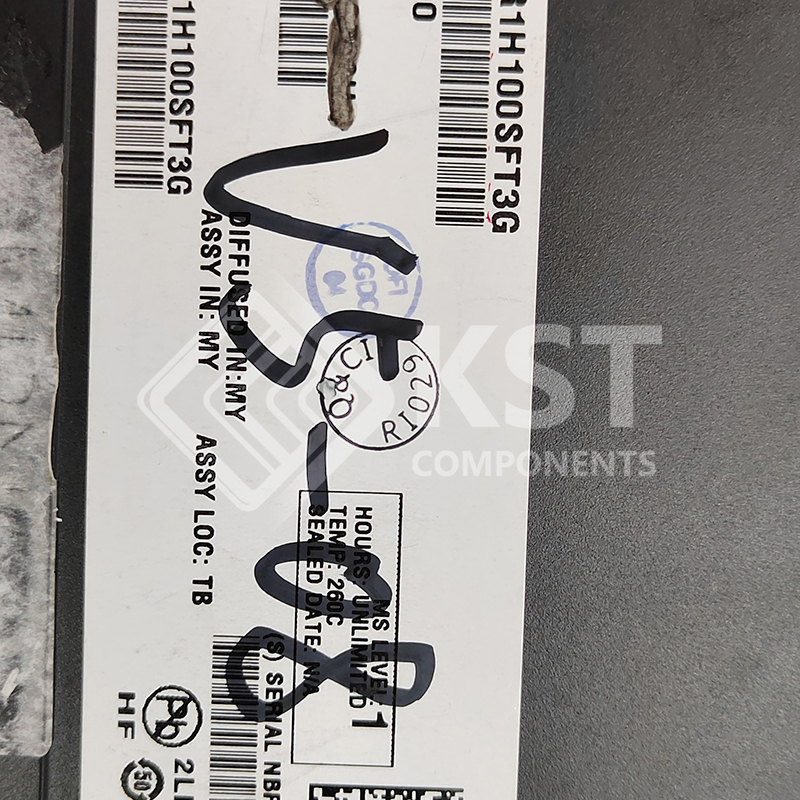

• Device Meets MSL 1 Requirements

This device uses the Schottky Barrier principle with a large area
metal−to−silicon power diode. Ideally suited for low voltage, high
frequency rectification or as free wheeling and polarity protection
diodes in surface mount applications where compact size and weight
are critical to the system. Because of its small size, it is ideal for use in
portable and battery powered products such as cellular and cordless
phones, chargers, notebook computers, printers, PDAs and PCMCIA
cards. Typical applications are AC−DC and DC−DC converters,
reverse battery protection, and “Oring” of multiple supply voltages
and any other application where performance and size are critical.


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    • Guardring for Stress Protection
    • Low Forward Voltage
    • 175°C Operating Junction Temperature
    • Epoxy Meets UL 94 V−0
    • Package Designed for Optimal Automated Board Assembly
    • ESD Ratings: Machine Model, C
    Human Body Model, 3B
    • NRVB Prefix for Automotive and Other Applications Requiring
    Unique Site and Control Change Requirements; AEC−Q101
    Qualified and PPAP Capable
    • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
    Compliant
