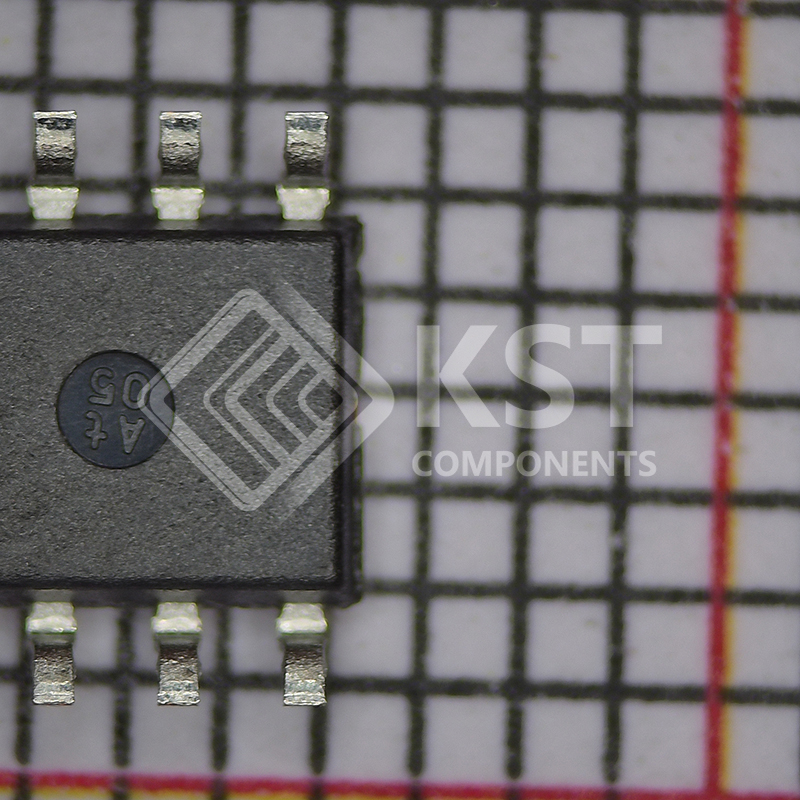

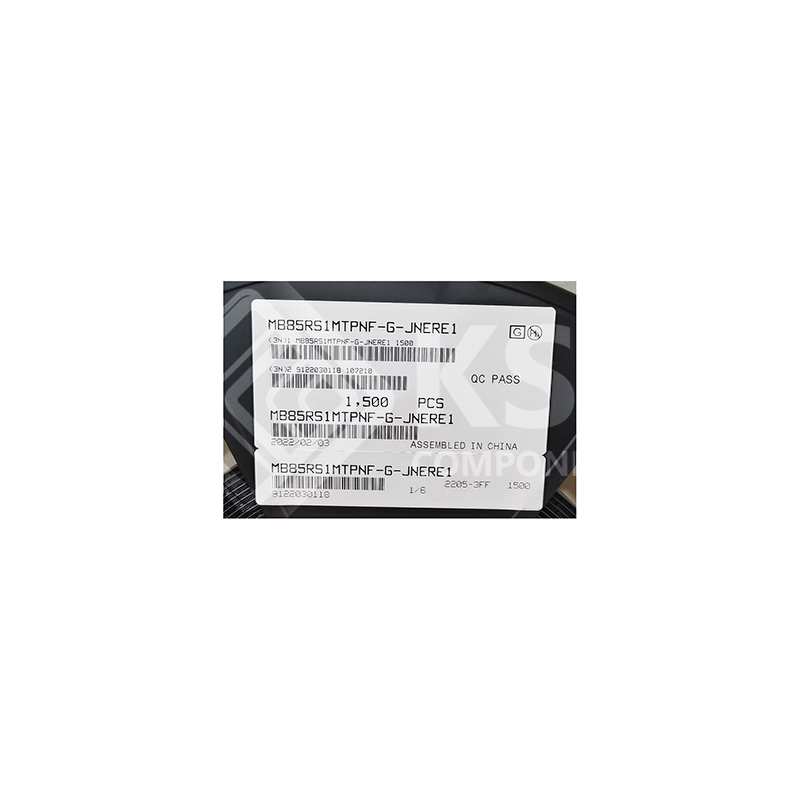

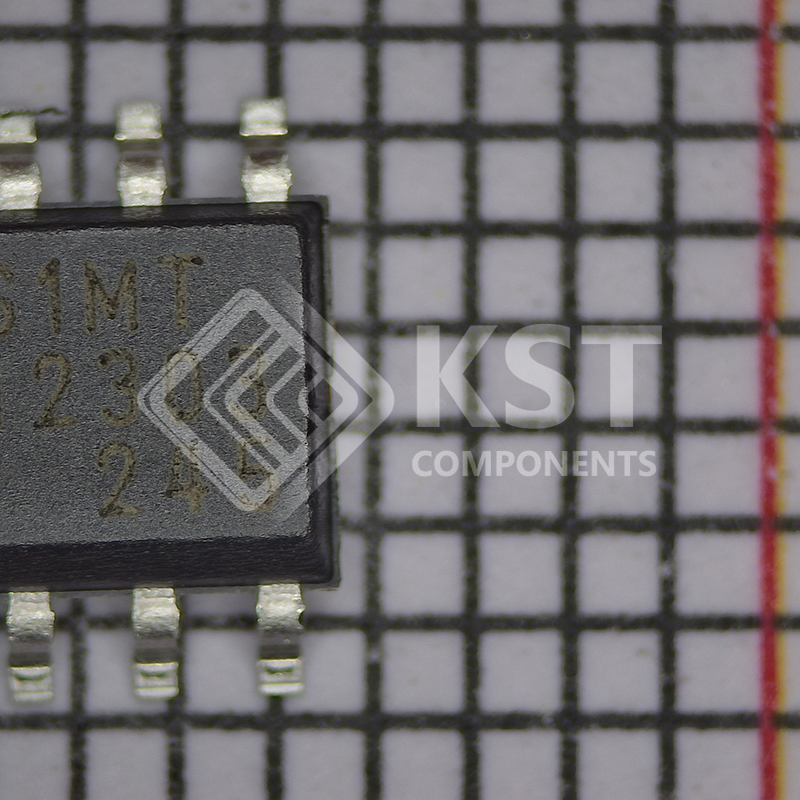

    MB85RS1MTPNF-G-JNERE1

    MB85RS1MT is a FRAM (Ferroelectric Random Access Memory) chip in a configuration of 131,072
    words × 8 bits, using the ferroelectric process and silicon gate CMOS process technologies for forming the
    nonvolatile memory cells.
    MB85RS1MT adopts the Serial Peripheral Interface (SPI).
    The MB85RS1MT is able to retain data without using a back-up battery, as is needed for SRAM.
    The memory cells used in the MB85RS1MT can be used for 1013 read/write operations, which is a significant
    improvement over the number of read and write operations supported by Flash memory and E2PROM.
    MB85RS1MT does not take long time to write data like Flash memories or E2PROM, and MB85RS1MT takes
    no wait time.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      • Bit configuration : 131,072 words × 8 bits
      • Serial Peripheral Interface : SPI (Serial Peripheral Interface)
      Correspondent to SPI mode 0 (0, 0) and mode 3 (1, 1)
      • Operating frequency : 1.8 V to 2.7 V, 25 MHz (Max)
      2.7 V to 3.6 V, 30 MHz (Max)
      For FSTRD command 2.7 V to 3.6 V, 40 MHz (Max)
      • High endurance : 1013 times / byte
      • Data retention : 10 years (+85 °C), 95 years ( + 55 °C), over 200 years ( + 35 °C)
      • Operating power supply voltage : 1.8 V to 3.6 V
      • Low power consumption : Operating power supply current 9.5 mA (Max@30 MHz)
      Standby current 120 μA (Max)
      Sleep current 10 μA (Max)
      • Operation ambient temperature range : -40 °C to +85 °C
      • Package : 8-pin plastic SOP (FPT-8P-M02)
      8-pin plastic WLP (WLP-8P-M01)
      8-pin plastic DIP (DIP-8P-M03)
      RoHS compliant
