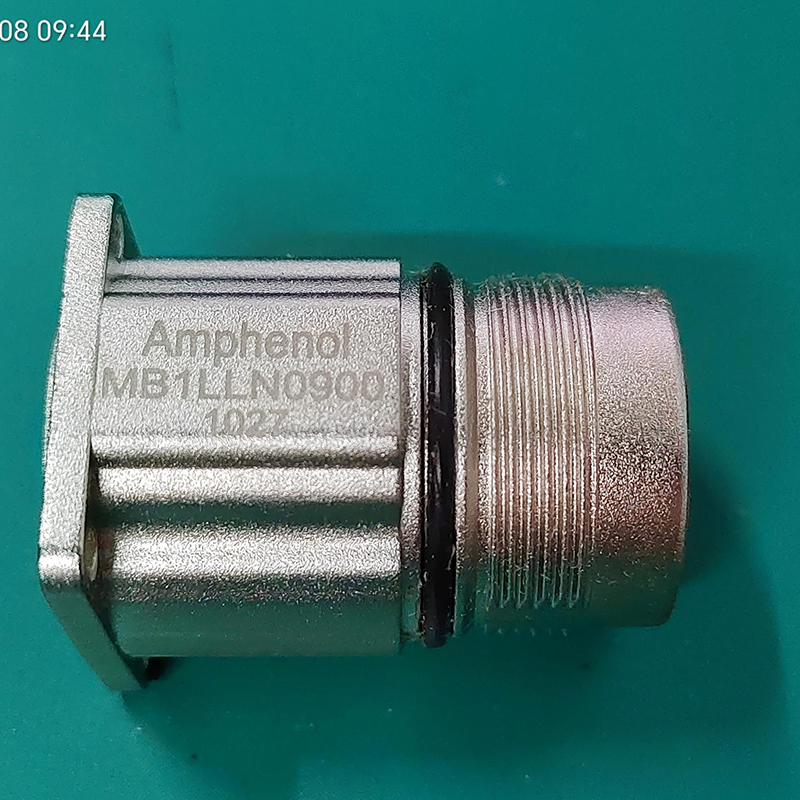

MB1LLN0900
INQUIRY ONLINE
|
Category
|
Connectors, Interconnects
Circular Connectors
Circular Connector Housings
|
|
|
Manufacturer
|
Amphenol Sine Systems Corp
|
|
|
Series
|
MotionGrade™ M23 Power Standard Series, Threaded
|
|
|
Packaging
|
Bulk
|
|
|
Part Status
|
Active
|
|
|
Connector Type
|
Receptacle Housing
|
|
|
Type
|
For Male Pins
|
|
|
Number of Positions
|
9 (5 + 3 Power + PE)
|
|
|
Shell Size – Insert
|
M23-9
|
|
|
Shell Size, MIL
|
–
|
|
|
Contact Type
|
Crimp
|
|
|
Contact Size
|
1.0mm (5), 2.0mm (4)
|
|
|
Mounting Type
|
Panel Mount
|
|
|
Mounting Feature
|
Flange
|
|
|
Fastening Type
|
Threaded
|
|
|
Orientation
|
Keyed
|
|
|
Shell Material
|
Zinc Die Cast
|
|
|
Shell Finish
|
Nickel
|
|
|
Housing Color
|
Silver
|
|
|
Ingress Protection
|
IP67 – Dust Tight, Waterproof
|
|
|
Material Flammability Rating
|
UL94 V-0
|
|
|
Features
|
–
|
|
|
Shielding
|
Shielded
|
|
|
Note
|
Contacts Not Included
|
|
|
Includes
|
–
|
|
|
Insert Material
|
Polyamide (PA66), Nylon 6/6
|
|
|
Contact Shape
|
Circular
|
|
|
Operating Temperature
|
-20°C ~ 130°C
|
|
|
Base Product Number
|
MB1LLN
|
