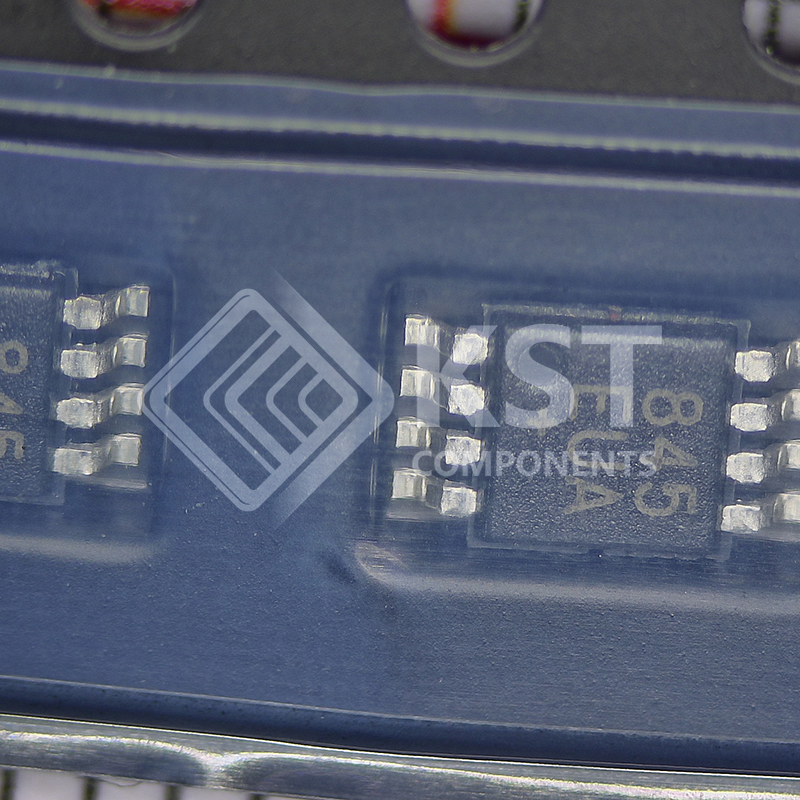

MAX845EUA+T

The MAX845 provides an isolated power supply small
enough to fit in thin PCMCIA cards and space-sensitive
applications. It drives a low-profile center-tapped transformer primary from a 5V or 3.3V DC power supply. The
secondary can be wound to provide any isolated positive or negative voltage at powers up to 750mW.
The MAX845 consists of an oscillator followed by a toggle flip-flop. The flip-flop generates two 50% duty-cycle
square waves, which are complementary at half the
oscillator frequency (450kHz, min). These two signals
drive the ground-referenced N-channel power switches. Internal circuitry ensures break-before-make action
between the two switches.
A low-power shutdown disables both the switches and
the oscillator, reducing power consumption. An evaluation kit (MAX845EVKIT-MM) is available to evaluate lowprofile 5V 40mA and 5V 100mA applications.
