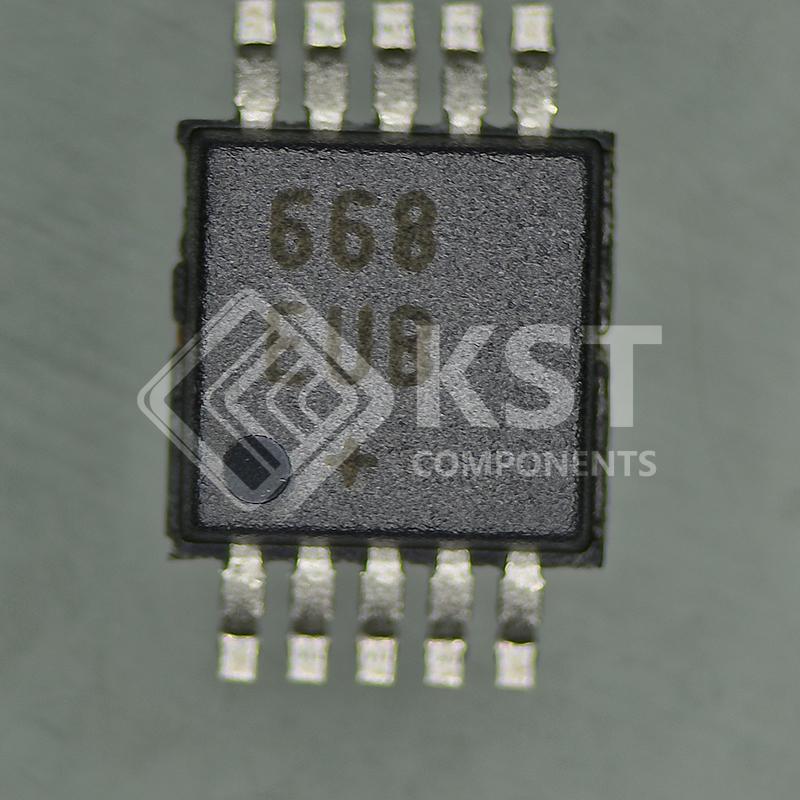

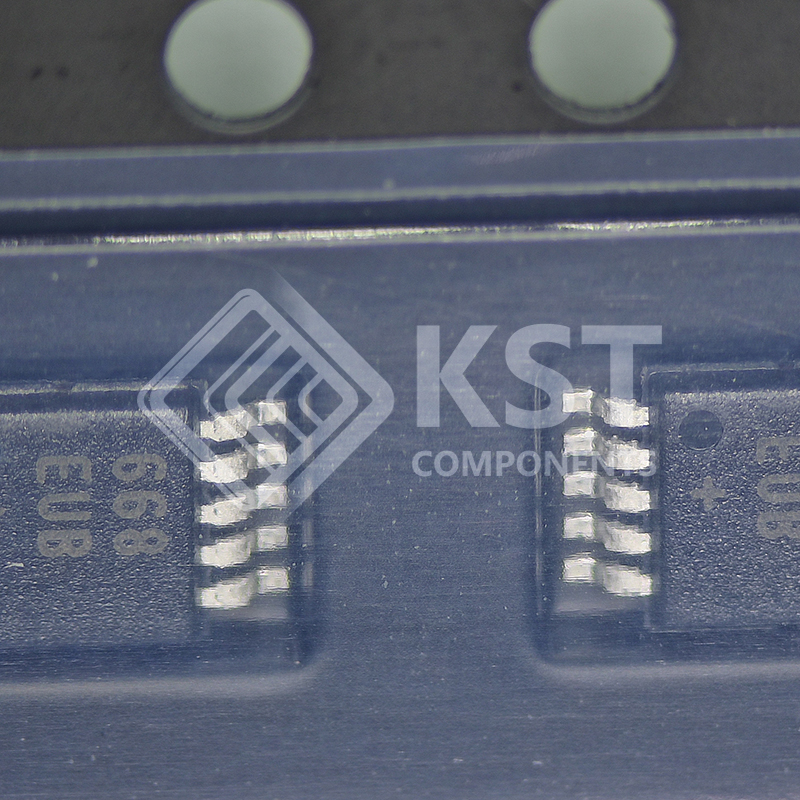

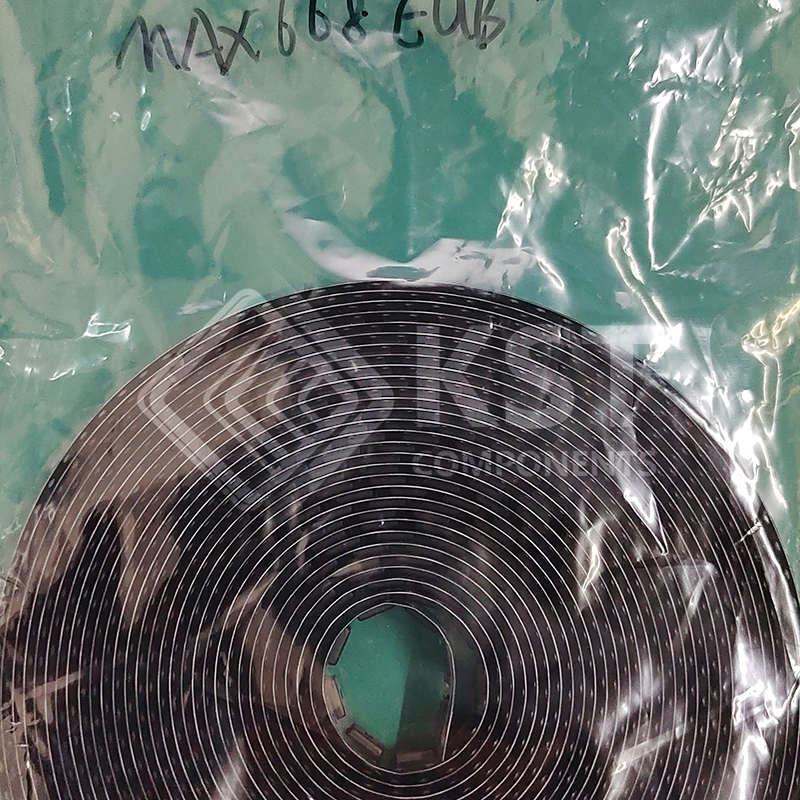

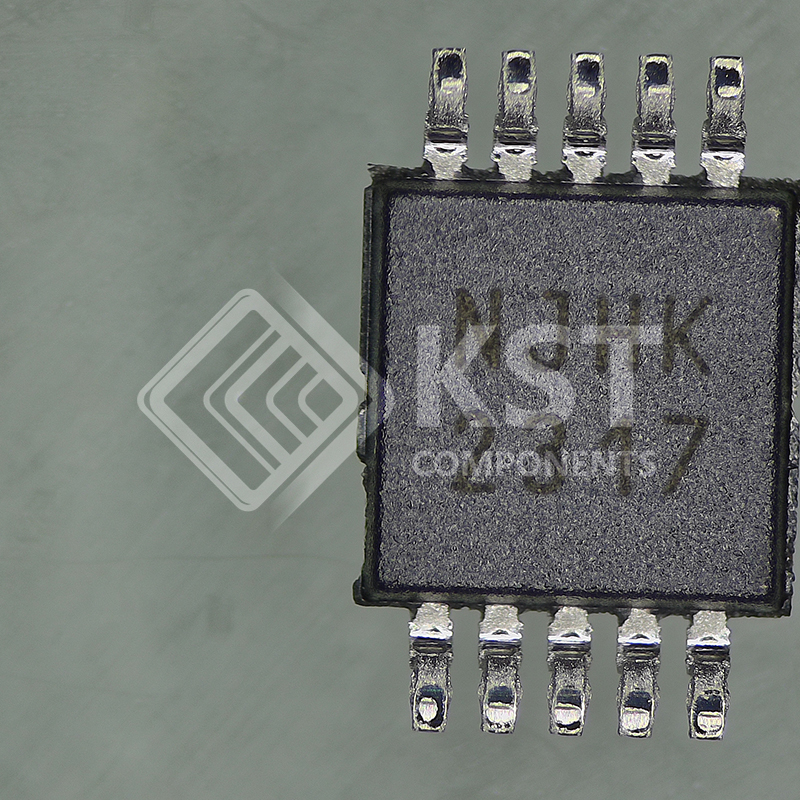

MAX668EUB+

The MAX668/MAX669 constant-frequency, pulse-widthmodulating (PWM), current-mode DC-DC controllers are
designed for a wide range of DC-DC conversion applications
including step-up, SEPIC, flyback, and isolated-output
configurations. Power levels of 20W or more can be
controlled with conversion efficiencies of over 90%. The
1.8V to 28V input voltage range supports a wide range of
battery and AC-powered inputs. An advanced BiCMOS
design features low operating current (220μA), adjustable
operating frequency (100kHz to 500kHz), soft-start, and
a SYNC input allowing the MAX668/MAX669 oscillator to
be locked to an external clock.
DC-DC conversion efficiency is optimized with a low
100mV current-sense voltage as well as with Maxim’s
proprietary Idle Mode™ control scheme. The controller
operates in PWM mode at medium and heavy loads for
lowest noise and optimum efficiency, then pulses only as
needed (with reduced inductor current) to reduce operating
current and maximize efficiency under light loads. A logiclevel shutdown input is also included, reducing supply
current to 3.5μA.
The MAX669, optimized for low input voltages with a
guaranteed start-up voltage of 1.8V, requires bootstrapped
operation (IC powered from boosted output). It supports
output voltages up to 28V. The MAX668 operates with
inputs as low as 3V and can be connected in either a bootstrapped or non-bootstrapped (IC powered from input supply or other source) configuration. When not bootstrapped,
it has no restriction on output voltage. Both ICs are available in an extremely compact 10-pin μMAX package.
