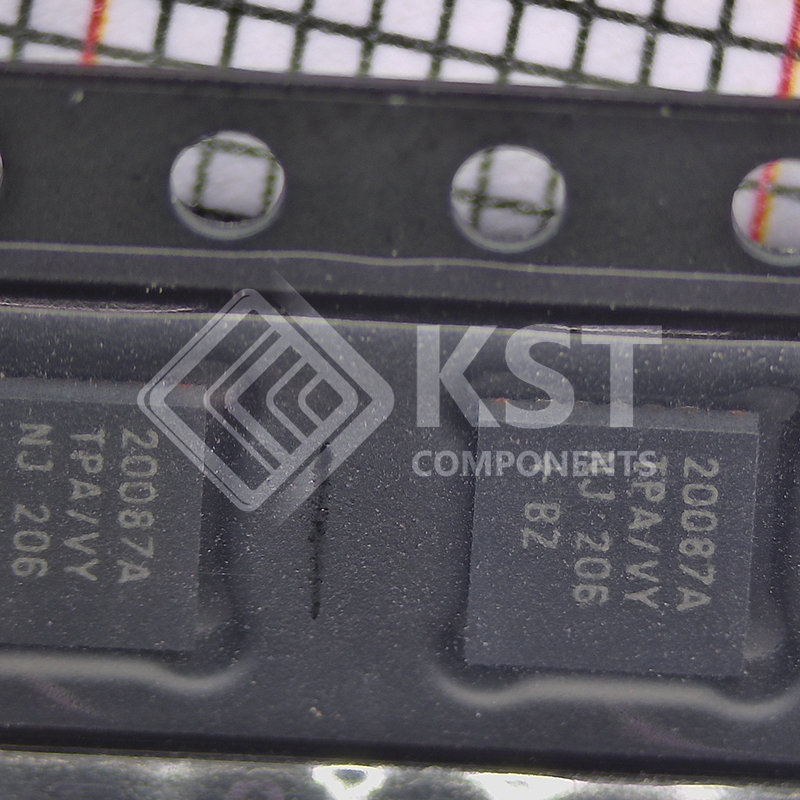

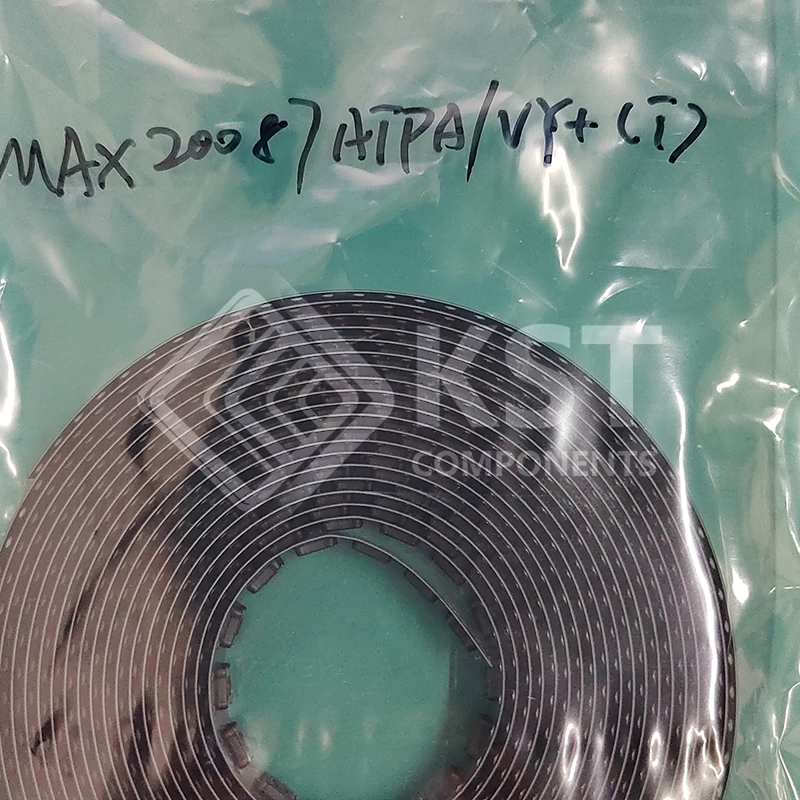

MAX20087ATPA/VY+T

The MAX20086–MAX20089 dual/quad camera power protector ICs deliver up to 600mA load current to each of their
four output channels. Each output is individually protected from short-to-battery, short-to-ground, and overcurrent
conditions. The ICs operate from a 3V to 5.5V supply and
with a 3V to 15V camera supply. The input-to-output voltage drop is only 110mV (typ) at 300mA.
The ICs provide an enable input and I2C interface to read
the diagnostic status of the device. An on-board ADC enables reading of the current through each switch. The
ASIL B- and ASIL D-compliant versions include support
for reading an additional seven diagnostic measurements
through the ADC, ensuring high-fault coverage.
The MAX20086–MAX20089 include overtemperature
shutdown and overcurrent limiting on each output channel
separately. All devices are designed to operate from -40°C
to +125°C ambient temperature.
