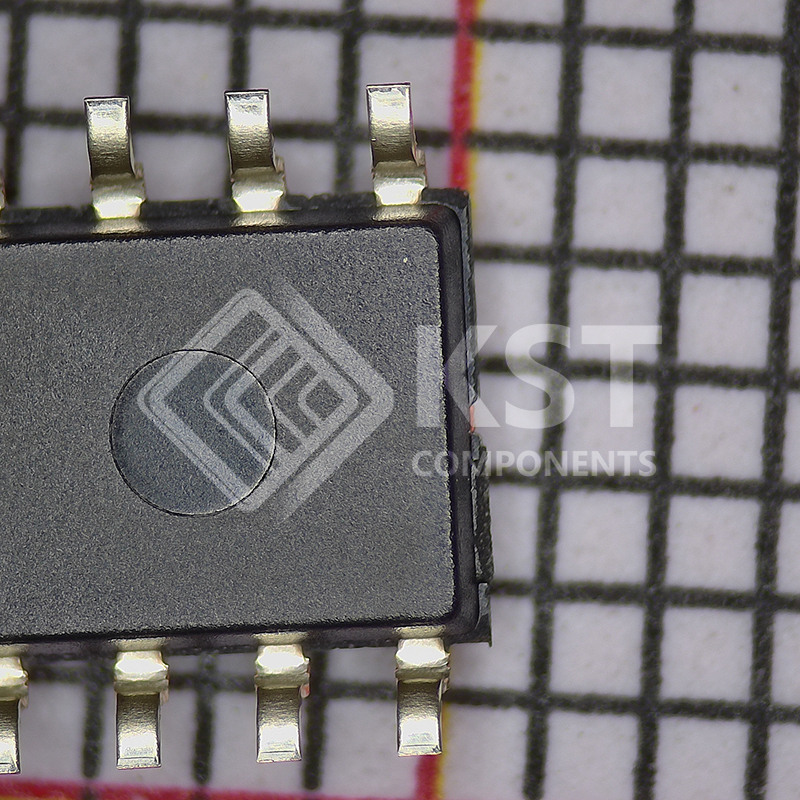

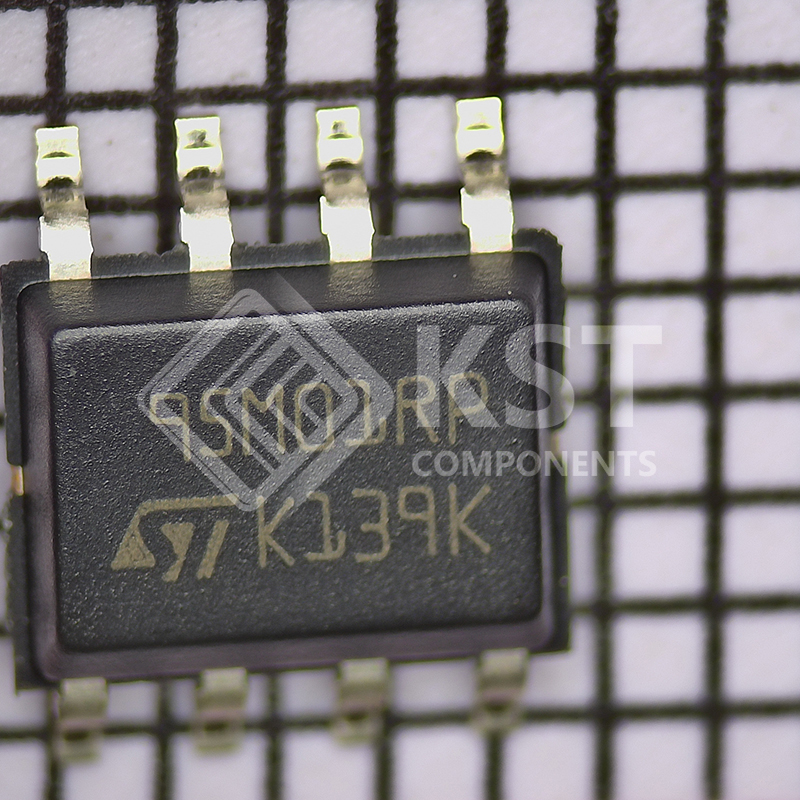

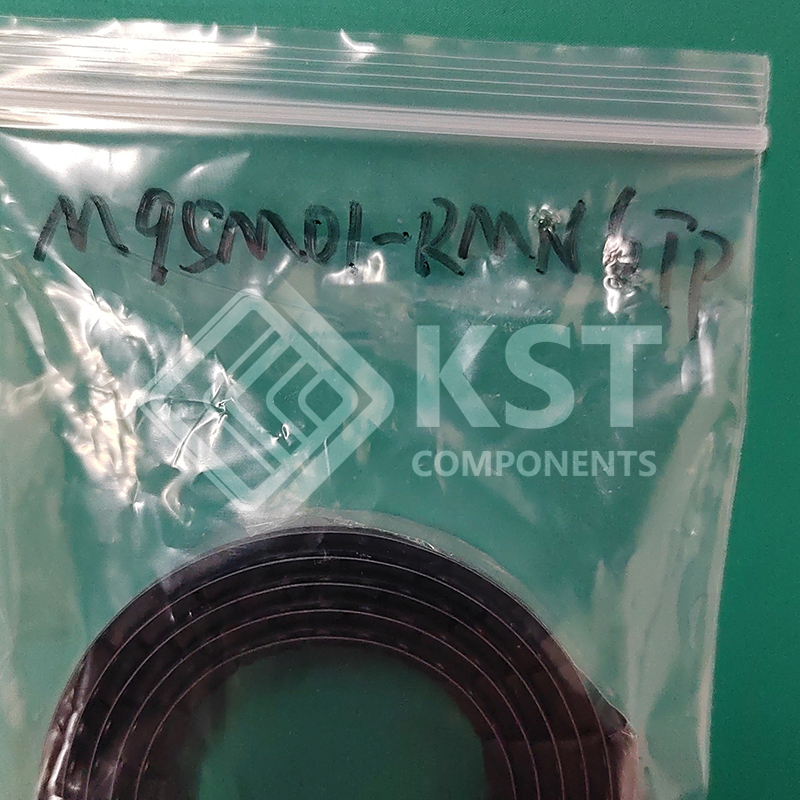

    M95M01-RMN6TP

    The M95M01 devices are electrically erasable programmable memories (EEPROMs) organized as 131072 x 8
    bits, accessed through the SPI bus.
    The M95M01-R can operate with a supply range from 1.8 V to 5.5 V, the M95M01-DF can operate with a supply
    range from 1.7 V up to 5.5 V. These devices are guaranteed over the -40 °C/+85 °C temperature range.
    The M95M01-DF offers an additional page, named the identification page (256 bytes). The identification page can
    be used to store sensitive application parameters that can be (later) permanently locked in read-only mode.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      Interface
      • Compatible with the serial peripheral interface (SPI) bus
      Memory
      • 1 Mbit (128 Kbytes) of EEPROM
      • Page size: 256-bytes
      • Additional 256-bytes identification page
      Supply voltage
      • 1.8 V to 5.5 V for M95M01-R
      • 1.7 V to 5.5 V for M95M01-DF
      Temperature
      • Operating temperature range: from -40 °C up to +85 °C
      Fast write cycle time
      • Byte and page write within 5 ms
      High speed clock frequency
      • Clock up to 16 MHz
      Performance
      • Enhanced ESD protection
      • More than 4 million write cycles
      • More than 200-year data retention
      Advanced features
      • Write protect: quarter, half or whole memory array
      Package
      • SO8 (ECOPACK2)
      • TSSOP8 (ECOPACK2)
      • WLCSP (ECOPACK2)
      • Unsawn wafer (each die is tested)
