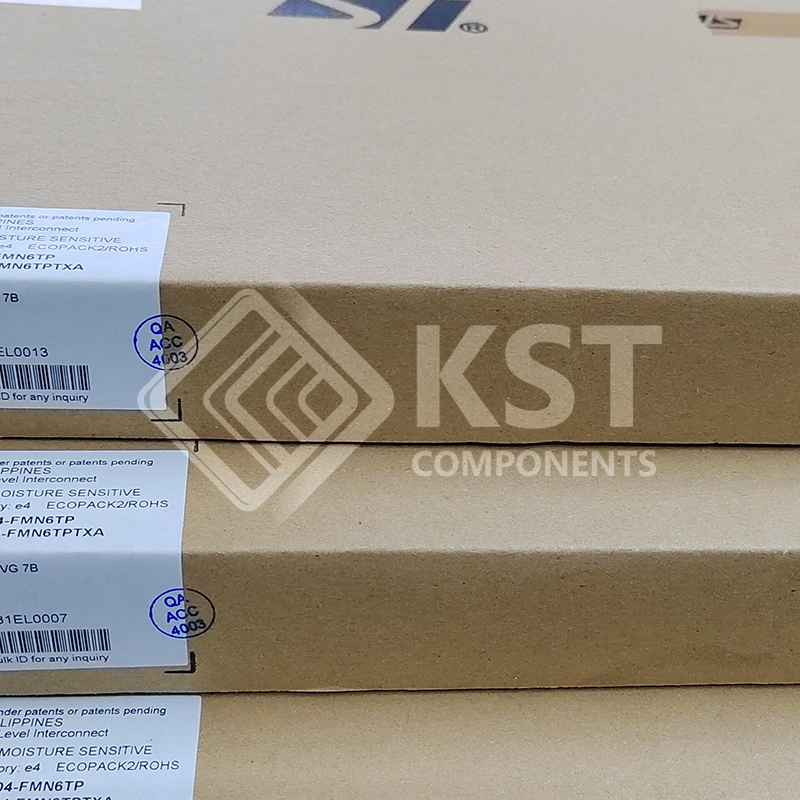

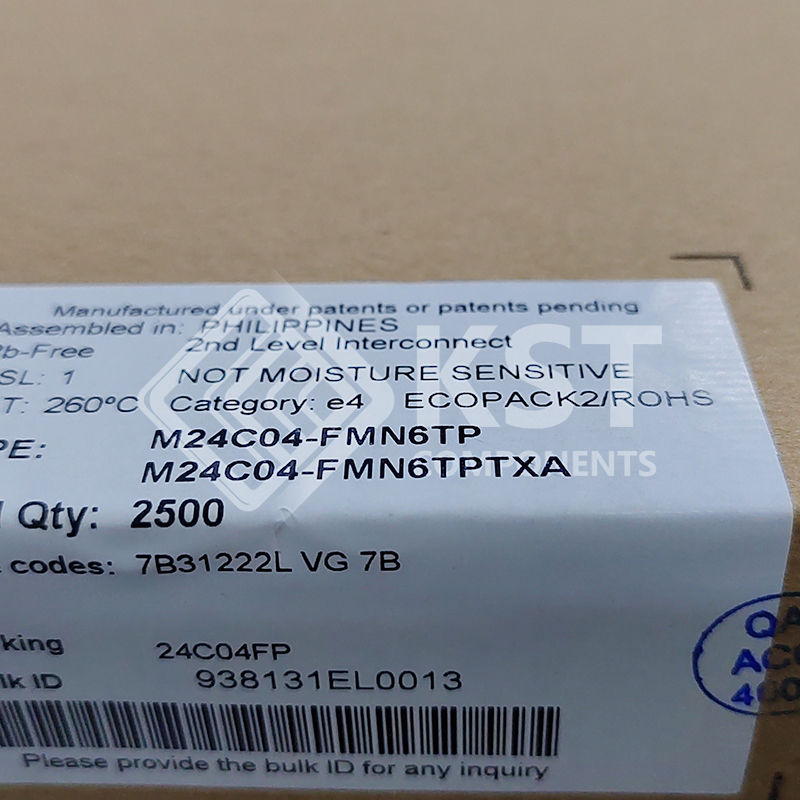

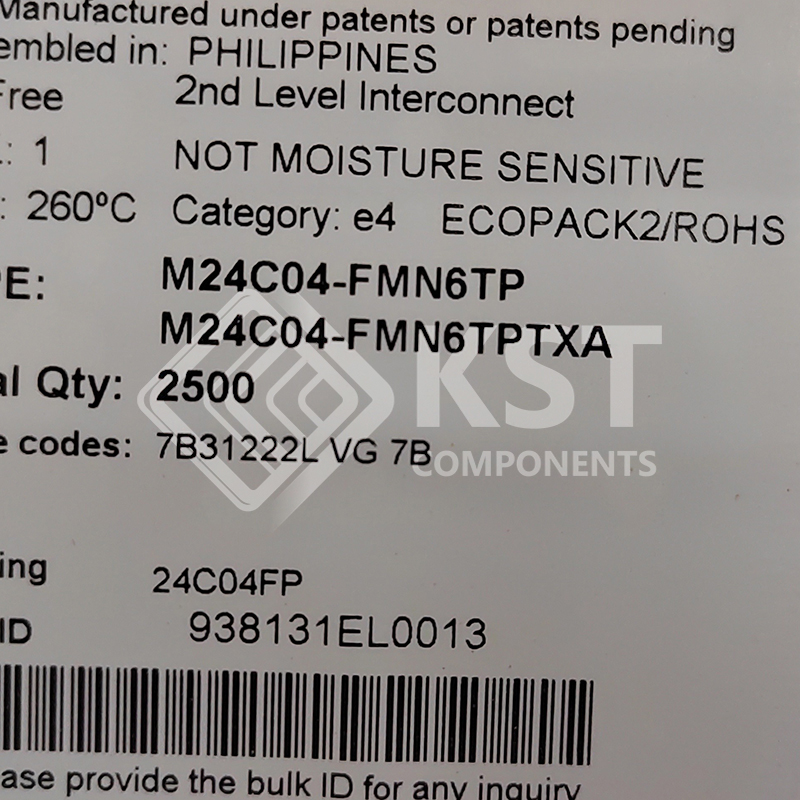

M24C04-FMN6TP

The M24C04 is a 4-Kbit I2C-compatible EEPROM (electrically erasable programmable memory) organized as 512
× 8 bits.
The M24C04-W can be accessed with a supply voltage from 2.5 V to 5.5 V, the M24C04-R can be accessed with
a supply voltage from 1.8 V to 5.5 V, and the M24C04-F can be accessed either with a supply voltage from 1.7
V to 5.5 V (over the full temperature range) or with an extended supply voltage from 1.6 V to 5.5 V under some
restricted conditions. All these devices operate with a clock frequency of 400 kHz, over an ambient temperature
range of -40 °C / +85 °C.

Category: Memory

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE

SPECIFICATION

• Compatible with following I2C bus modes:
– 400 kHz
– 100 kHz
• Memory array:
– 4 Kbit (512 byte) of EEPROM
– Page size: 16 byte
• Single supply voltage:
– M24C04-W: 2.5 V to 5.5 V
– M24C04-R: 1.8 V to 5.5 V
– M24C04-F:
1.7 V to 5.5 V
1.6 V to 5.5 V (under temperature constraint)
• Write:
– Byte write within 5 ms
– Page write within 5 ms
• Operating temperature range:
– from -40 °C up to +85 °C
• Random and sequential read modes
• Write protect of the whole memory array
• Enhanced ESD/latch-Up protection
• More than 4 million write cycles
• More than 200-years data retention
Packages
Packages RoHS-compliant and Halogen-free
• SO8N (ECOPACK2)
• TSSOP8 (ECOPACK2)
• UFDFPN8 (ECOPACK2)
• UFDFPN5 (ECOPACK2)
