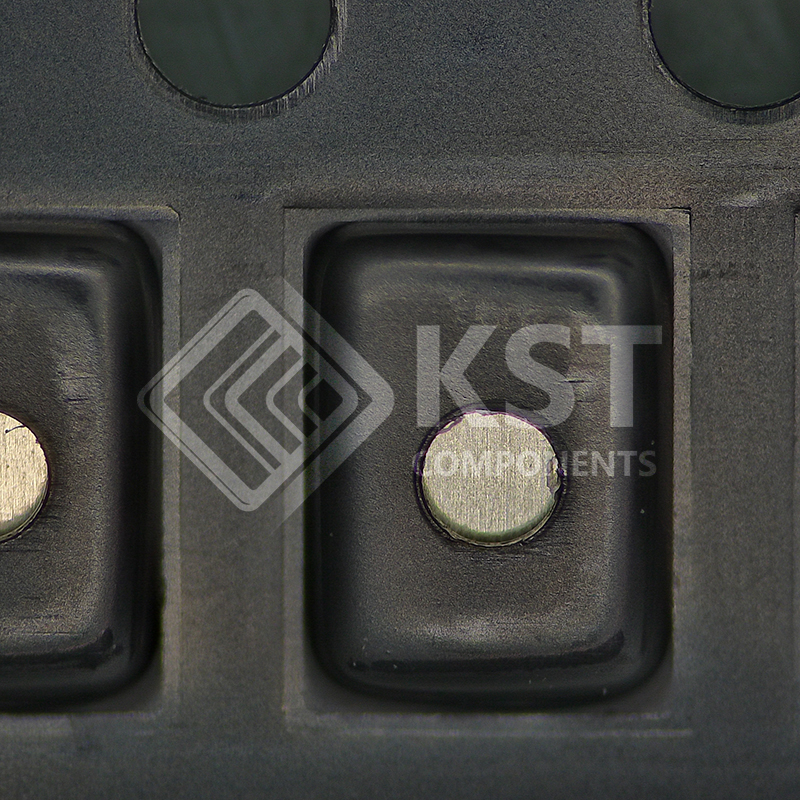

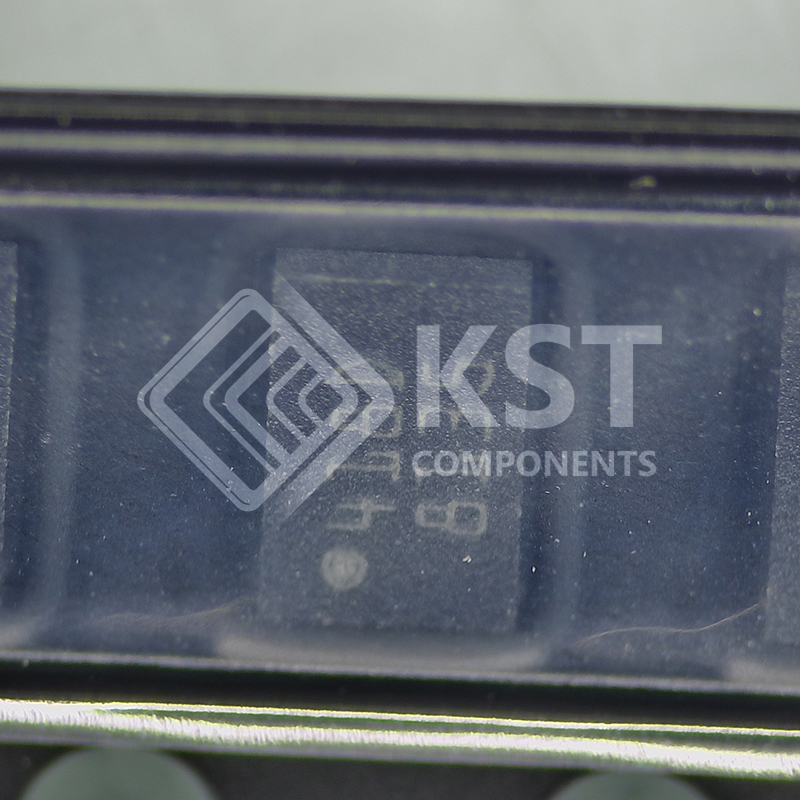

    M24512-DFMC6TG

    The M24512 is a 512-Kbit I2C-compatible EEPROM (electrically erasable programmable memory) organized as
    64 K × 8 bits.
    The M24512-W can operate with a supply voltage from 2.5 V to 5.5 V, the M24512-R can operate with a supply
    voltage from 1.8 V to 5.5 V, and the M24512-DF can operate with a supply voltage from 1.7 V to 5.5 V. All these
    devices operate with a clock frequency of 1 MHz (or less), over an ambient temperature range of –40 °C / +85 °C.
    The M24512-D offers an additional page, named the identification page (128 byte). The identification page can be
    used to store sensitive application parameters which can be (later) permanently locked in read-only mode.

    Category:

    Download Details PDF
    Notice:

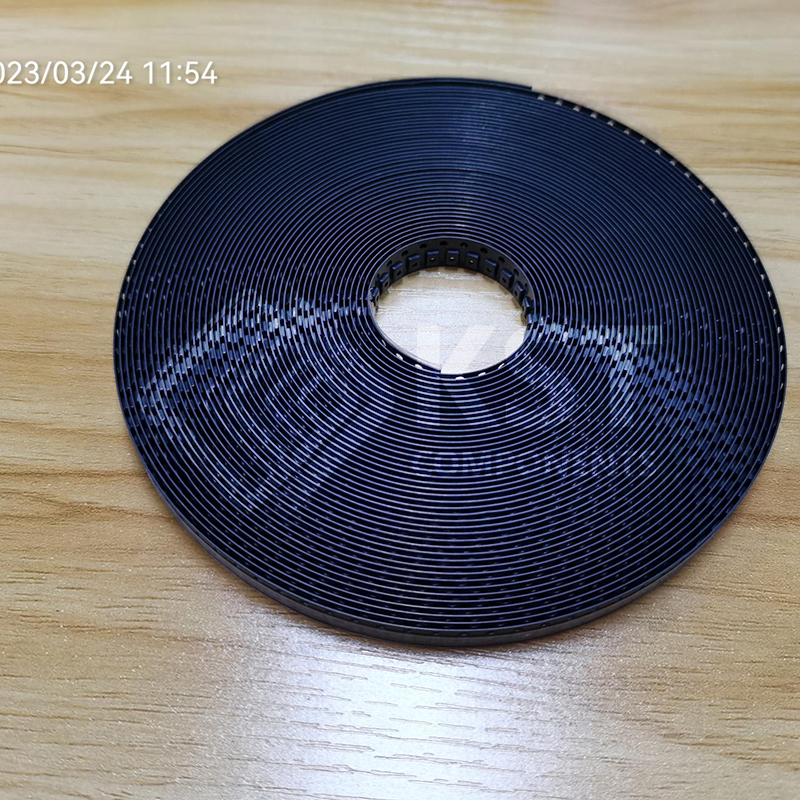

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      • Compatible with following I2C bus modes:
      – 1 MHz
      – 400 kHz
      – 100 kHz
      • Memory array:
      – 512 Kbit (64 Kbyte) of EEPROM
      – Page size: 128 byte
      – Additional write lockable page (M24512-D order codes)
      • Single supply voltage and high speed:
      – 1 MHz clock from 1.7 V to 5.5 V
      • Write time:
      – Byte write within 5 ms
      – Page write within 5 ms
      • Operating temperature range:
      – -40 °C up to +85 °C
      • Random and sequential read modes
      • Write protect of the whole memory array
      • Enhanced ESD/latch-Up protection
      • More than 4 million write cycles
      • More than 200-years data retention
      • Packages:
      – SO8 ECOPACK2®
      – TSSOP8 ECOPACK2®
      – UFDFPN8 ECOPACK2®
      – WLCSP ECOPACK2®
      – Unsawn wafer (each die is tested)
