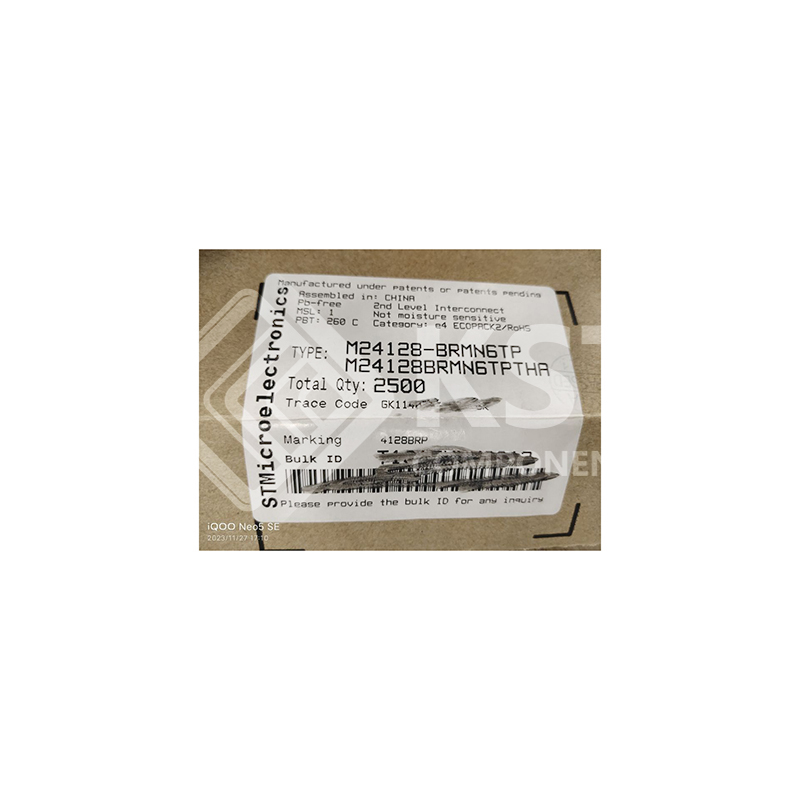

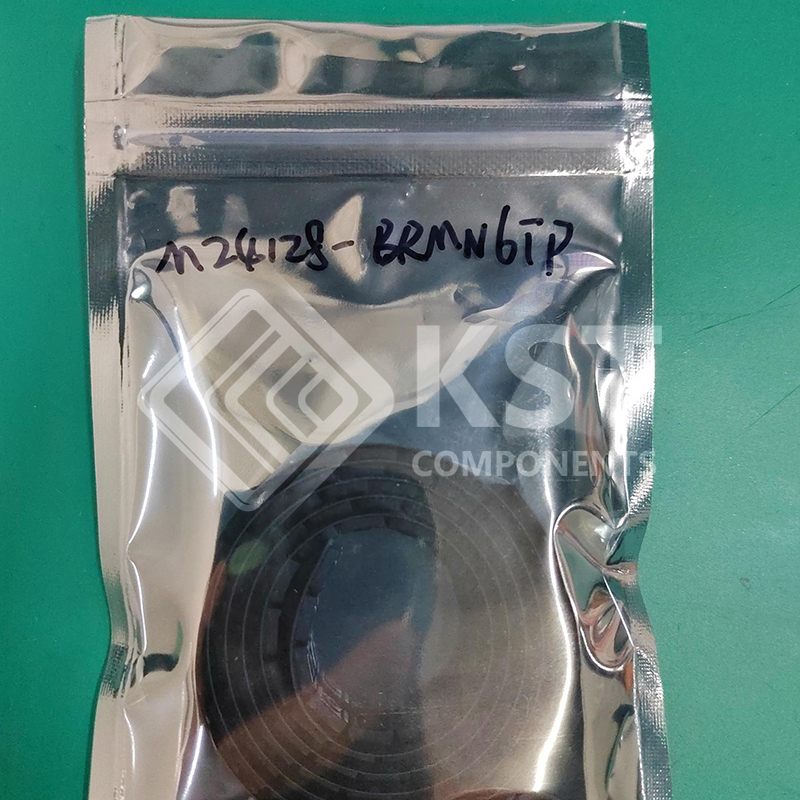

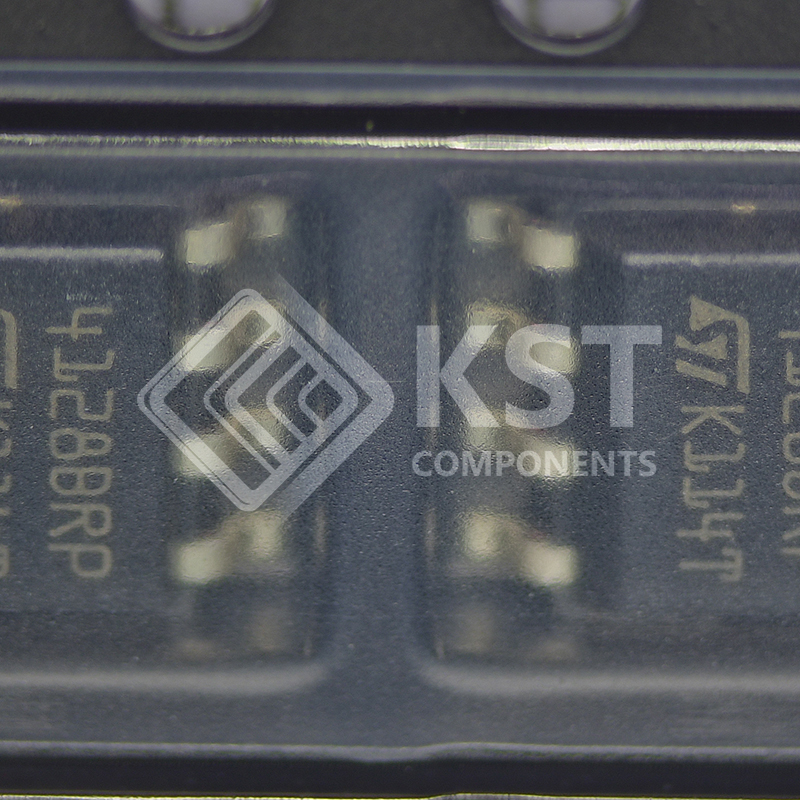

M24128-BRMN6TP

The M24128 is a 128-Kbit I2C-compatible EEPROM (electrically erasable programmable memory) organized as
16 K × 8 bits.
The M24128-BW can operate with a supply voltage from 2.5 V to 5.5 V, the M24128-BR can operate with a supply
voltage from 1.8 V to 5.5 V, and the M24128-BF and M24128-DF can operate with a supply voltage from 1.7 V to
5.5 V (the M24128-BF and the M24128-DF can also operate down to 1.6 V, under some restricting conditions). All
these devices operate with a clock frequency of 1 MHz (or less), over an ambient temperature range of –40 °C /
+85 °C. The M24128-D offers an additional page, named the identification page (64 byte). The identification page
can be used to store sensitive application parameters which can be (later) permanently locked in read-only mode.

Category: Memory

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE

SPECIFICATION

• Compatible with following I2C bus modes:
– 1 MHz
– 400 kHz
– 100 kHz
• Memory array:
– 128 Kbit (16 Kbyte) of EEPROM
– Page size: 64 byte
– Additional write lockable page (M24128-D order codes)
• Single supply voltage range:
– 1.7 V to 5.5 V over –40 °C / +85 °C
– 1.6 V to 5.5 V over 0 °C / +85 °C
• Write:
– Byte write within 5 ms
– Page write within 5 ms
• Operating temperature range:
– from -40 °C up to +85 °C
• Random and sequential read modes
• Write protect of the whole memory array
• Enhanced ESD/latch-Up protection
• More than 4 million write cycles
• More than 200-years data retention
