M20-9990445
INQUIRY ONLINE
| Mfr | Harwin Inc. |
| Series | M20 |
| Packaging | Bulk |
| Part Status | Active |
| Connector Type | Header, Cuttable |
| Contact Type | Male Pin |
| Pitch – Mating | 0.100″ (2.54mm) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing – Mating | – |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length – Mating | 0.240″ (6.10mm) |
| Contact Length – Post | 0.118″ (3.00mm) |

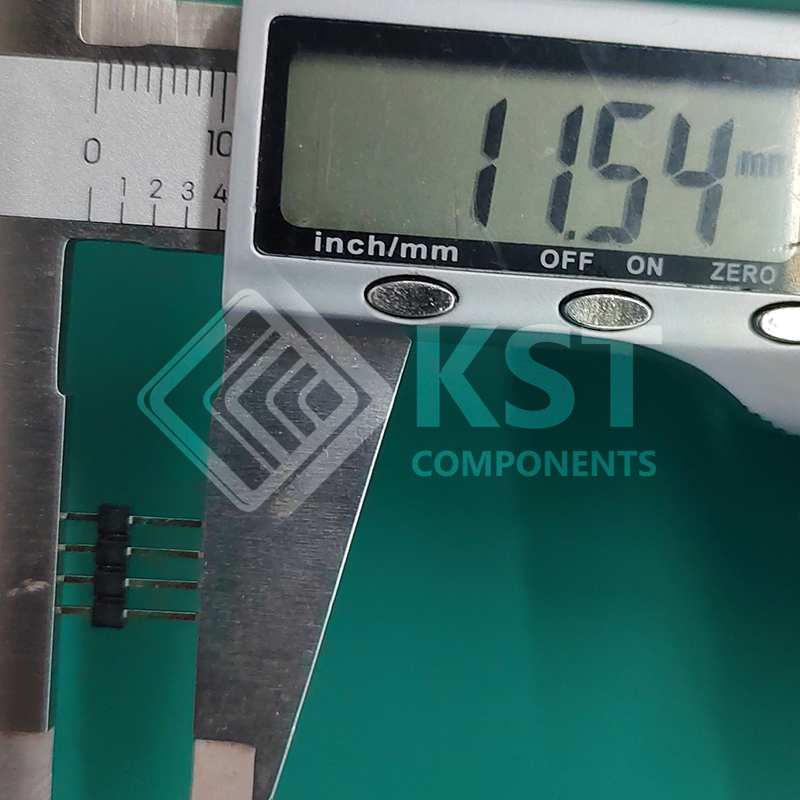

| Overall Contact Length | 0.460″ (11.68mm) |
| Insulation Height | 0.100″ (2.54mm) |
| Contact Shape | Square |
| Contact Finish – Mating | Gold |
| Contact Finish Thickness – Mating | – |
| Contact Finish – Post | – |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Features | – |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | – |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A per Contact |
| Voltage Rating | – |
| Mated Stacking Heights | 10.04mm, 10.64mm, 11.04mm, 16.54mm |
| Contact Finish Thickness – Post | – |
| Applications | – |
| Base Product Number | M20-999 |
