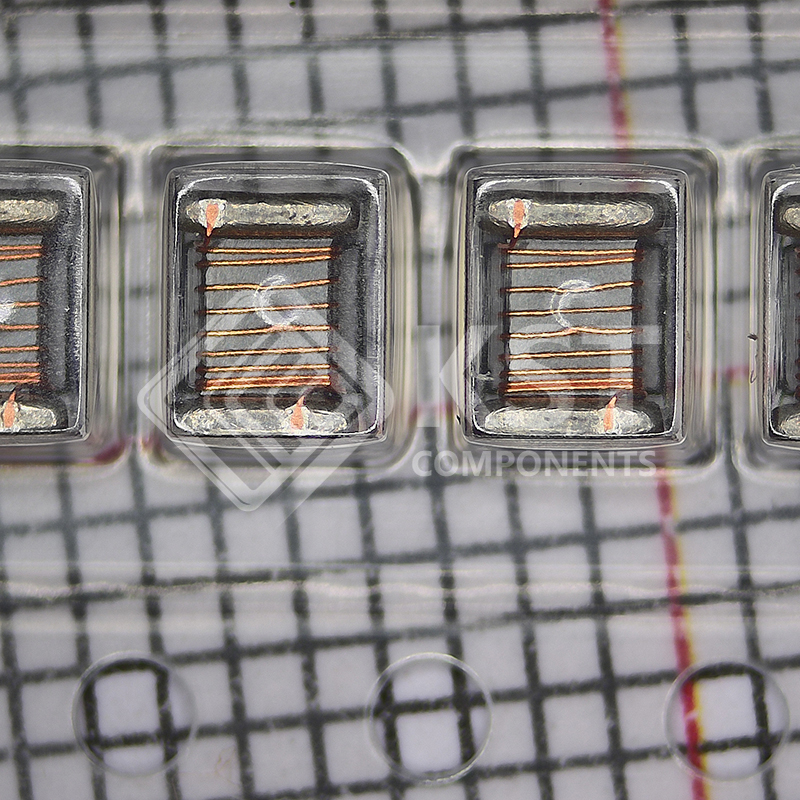

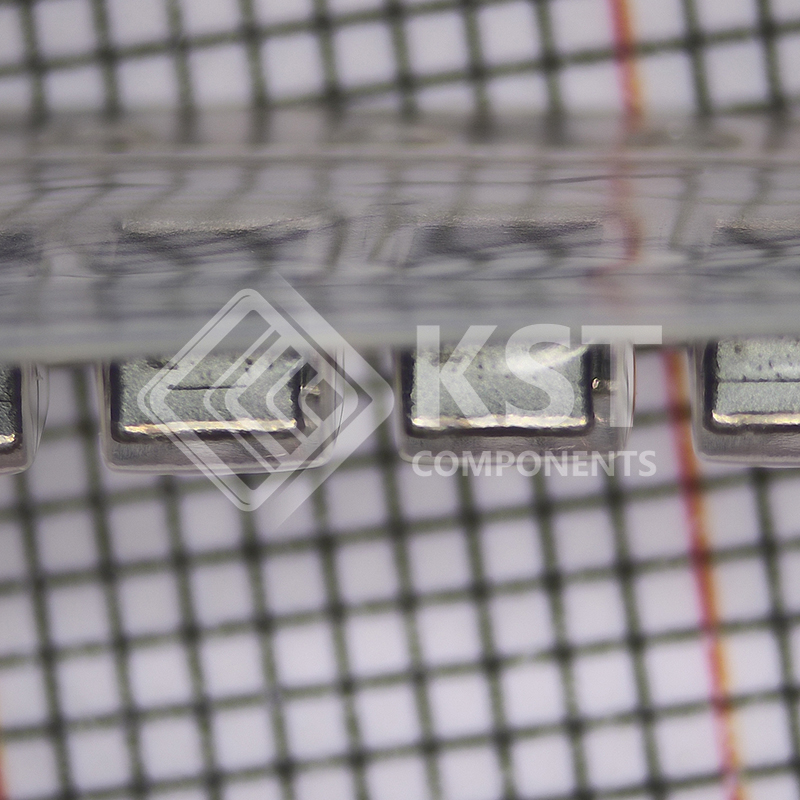

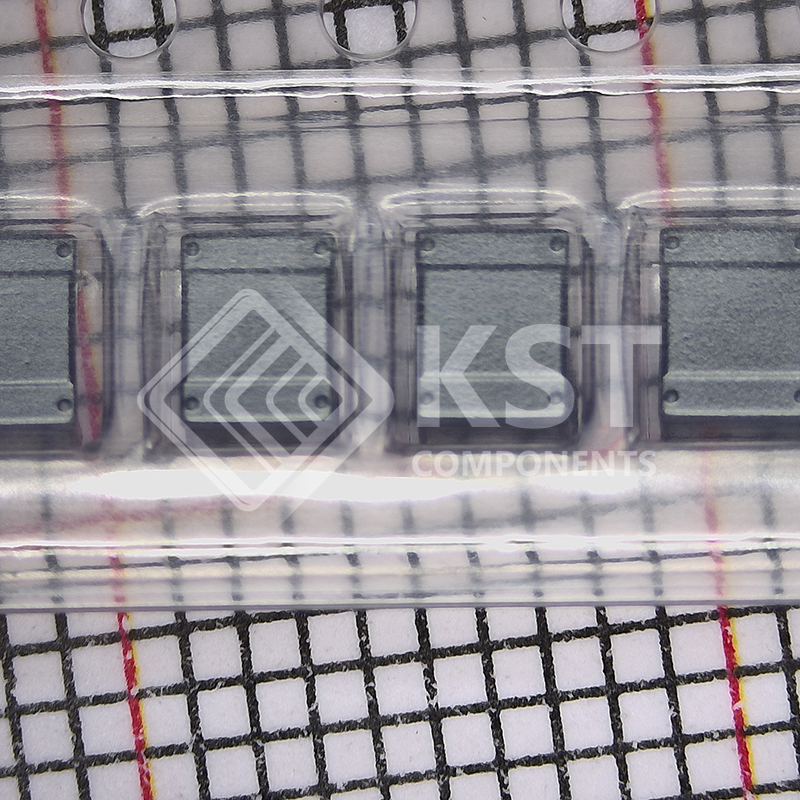

LQW32FT3R3M0HL
INQUIRY ONLINE
|
Category
|
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr
|
Murata Electronics
|
|
|
Series
|
LQW32
|
|
|

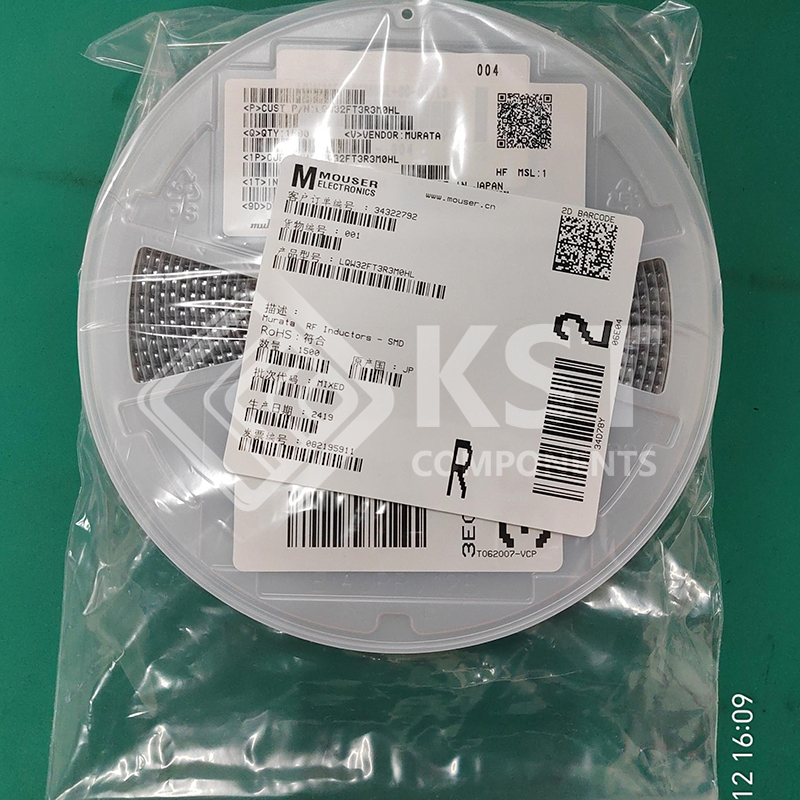

Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Type
|
Drum Core, Wirewound
|
|
|
Material – Core
|
Ferrite
|
|
|
Inductance
|
3.3 µH
|
|
|
Tolerance
|
±20%
|
|
|
Current Rating (Amps)
|
950 mA
|
|
|
Current – Saturation (Isat)
|
950mA
|
|
|
Shielding
|
Shielded
|
|
|
DC Resistance (DCR)
|
240mOhm Max
|
|
|
Q @ Freq
|
–
|
|
|
Frequency – Self Resonant
|
150MHz
|
|
|
Ratings
|
AEC-Q200
|
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
|
Inductance Frequency – Test
|
1 MHz
|
|
|
Features
|
–
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
1210 (3225 Metric)
|
|
|
Supplier Device Package
|
1210
|
|
|
Size / Dimension
|
0.126″ L x 0.098″ W (3.20mm x 2.50mm)
|
|
|
Height – Seated (Max)
|
0.098″ (2.50mm)
|
