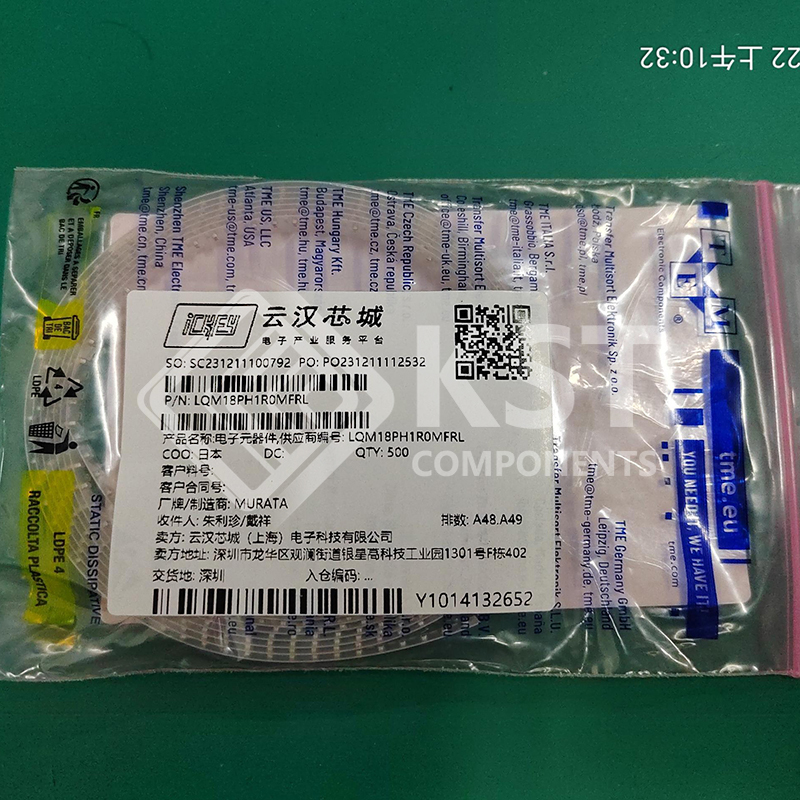

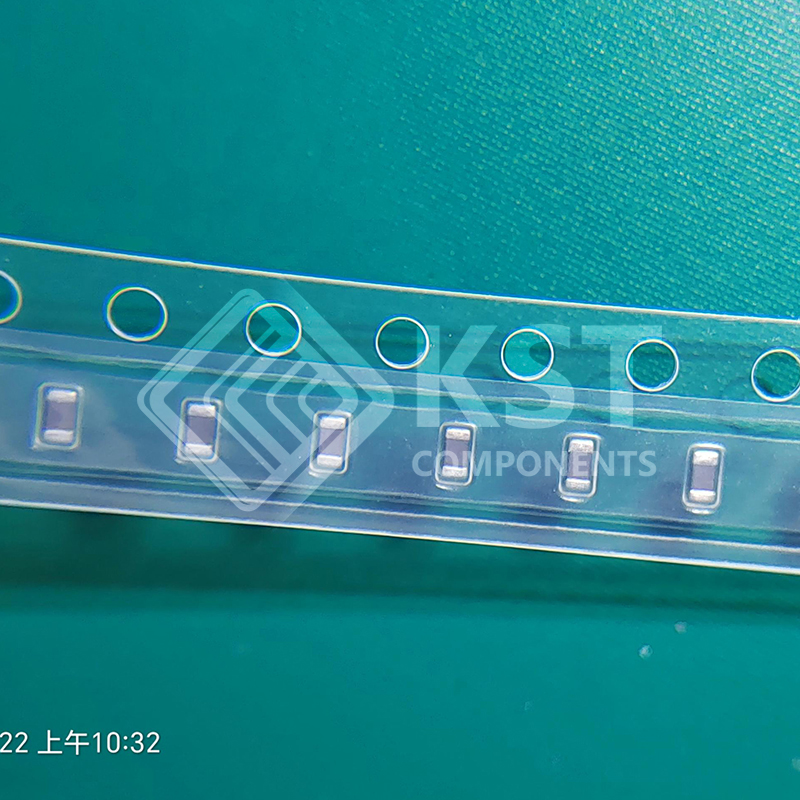

LQM18PH1R0MFRL

Category:

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    Mfr Murata Electronics
    Series LQM18
    Packaging Tape & Reel (TR)
    Cut Tape (CT)
    Digi-Reel®
    Part Status Active
    Type Multilayer
    Material – Core Ferrite
    Inductance 1 µH
    Tolerance ±20%
    Current Rating (Amps) 950 mA
    Current – Saturation (Isat) 360mA
    Shielding Shielded
    DC Resistance (DCR) 250mOhm Max
    Q @ Freq
    Frequency – Self Resonant 100MHz
    Ratings AEC-Q200
    Operating Temperature -55°C ~ 150°C
    Inductance Frequency – Test 1 MHz
    Features
    Mounting Type Surface Mount
    Package / Case 0603 (1608 Metric)
    Supplier Device Package 603
    Size / Dimension 0.063″ L x 0.031″ W (1.60mm x 0.80mm)
    Height – Seated (Max) 0.037″ (0.95mm)
    Base Product Number LQM18PH
