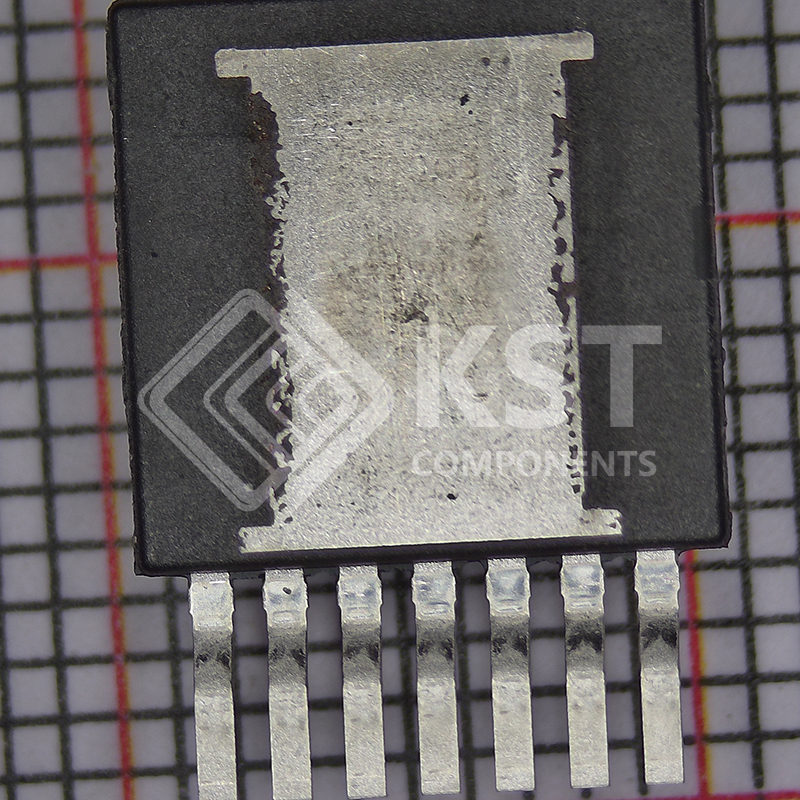

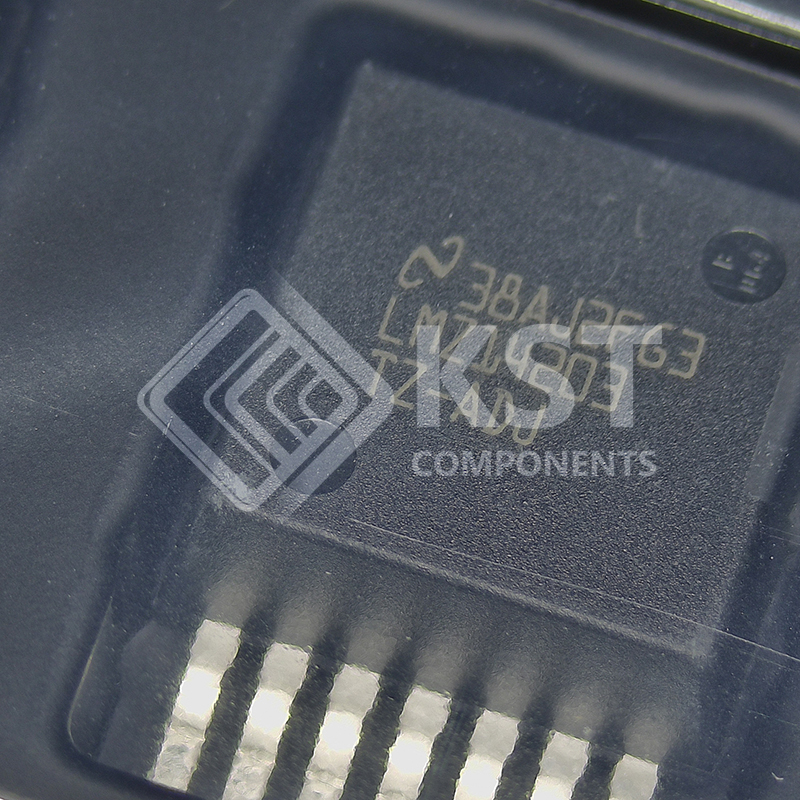

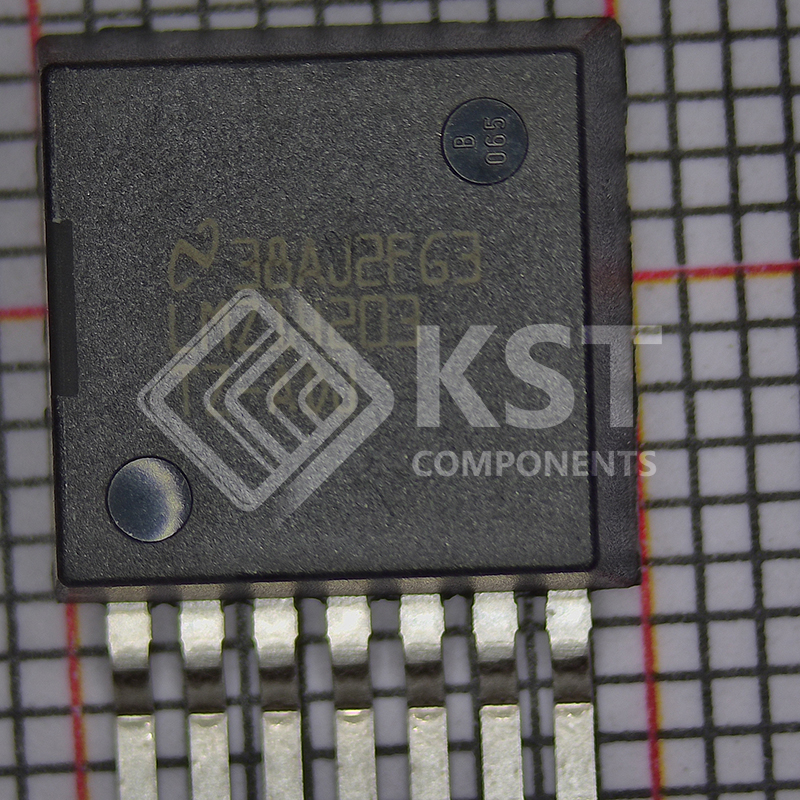

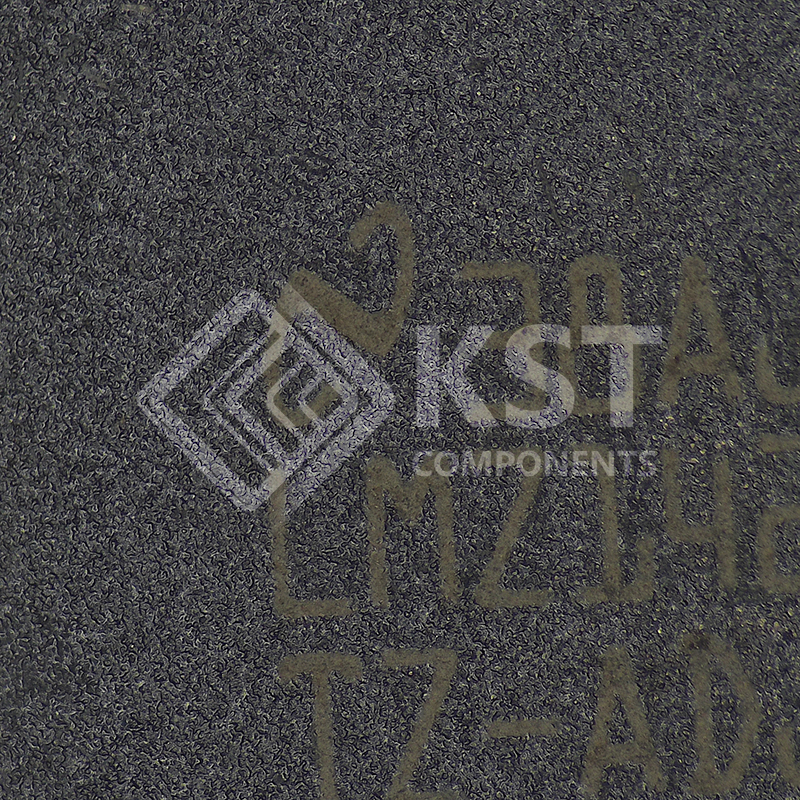

    LMZ14203TZX-ADJ/NOPB

    The LMZ14203 SIMPLE SWITCHER power module
    is an easy-to-use step-down DC-DC solution that can
    drive up to 3-A load with exceptional power
    conversion efficiency, line and load regulation, and
    output accuracy. The LMZ14203 is available in an
    innovative package that enhances thermal
    performance and allows for hand or machine
    soldering.
    The LMZ14203 can accept an input voltage rail
    between 6 V and 42 V and deliver an adjustable and
    highly accurate output voltage as low as 0.8 V. The
    LMZ14203 only requires three external resistors and
    four external capacitors to complete the power
    solution. The LMZ14203 is a reliable and robust
    design with the following protection features: thermal
    shutdown, input UVLO, output overvoltage protection,
    short-circuit protection, output current limit, and
    allows start-up into a prebiased output. A single
    resistor adjusts the switching frequency up to 1 MHz.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      • Integrated Shielded Inductor & Simple PCB
      Layout
      • Flexible Start-Up Sequencing Using External SoftStart and Precision Enable
      • Protection Against Inrush Currents and Faults
      Such as Input UVLO and Output Short Circuit
      • –40°C to 125°C Junction Temperature Range
      • Single Exposed Pad and Standard Pinout for Easy
      Mounting and Manufacturing
      • Fast Transient Response for Powering FPGAs
      and ASICs
      • Low Output Voltage Ripple
      • Pin-to-Pin Compatible Family:
      – LMZ1420x (42 V Maximum 3 A, 2 A, 1 A)
      – LMZ1200x (20 V Maximum 3 A, 2 A, 1 A)
      • Fully Enabled for WEBENCH® Power Designer
      • Electrical Specifications
      – 18-W Maximum Total Output Power
      – Up to 3-A Output Current
      – Input Voltage Range 6 V to 42 V
      – Output Voltage Range 0.8 V to 6 V
      – Efficiency up to 90%
      • Performance Benefits
      – Operates at High Ambient Temperature With
      No Thermal Derating
      – High Efficiency Reduces System Heat
      Generation
      – Low Radiated Emissions (Electromagnetic
      Interference [EMI]) Tested With EN55022
      Class B Standard
      – Passes 10-V/m Radiated Immunity EMI Test
      Standard EN61000 4-3
      • Create a Custom Design Using the LMZ14203
      With the WEBENCH® Power Designer
