LMV116MFX/NOPB

The LMV116 (single) rail-to-rail output voltage
feedback amplifiers offer high-speed (45 MHz), and
low-voltage operation (2.7 V) in addition to micropower shutdown capability (LMV118).
Output voltage range extends to within 20 mV of
either supply rail, allowing wide dynamic range
especially in low voltage applications. Even with low
supply current of 600 μA, output current capability is
kept at a respectable ±20 mA for driving heavier
loads. Important device parameters such as BW, slew
rate, and output current are kept relatively
independent of the operating supply voltage by a
combination of process enhancements and design
architecture.
For portable applications, the LMV118 provides
shutdown capability while keeping the turnoff current
to 15 μA. Both turnon and turnoff characteristics are
well behaved with minimal output fluctuations during
transitions, thus the device can be used in powersaving mode, as well as multiplexing applications.

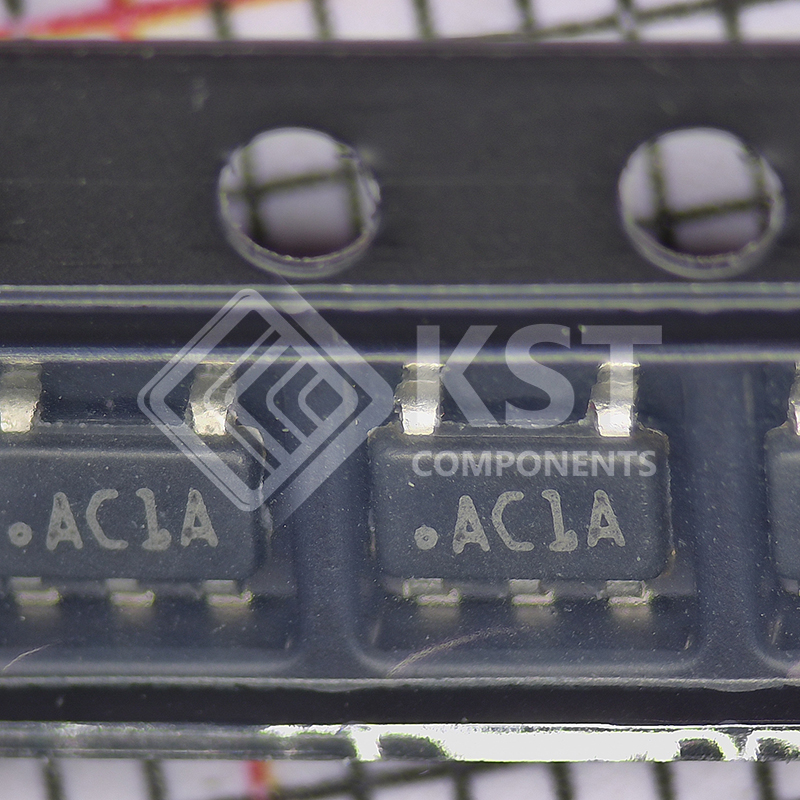

Miniature packages (5-pin and 6-pin SOT-23) are
further means to ease the adoption of these lowpower, high-speed devices in applications where
board area is at a premium.
