• Wide single-supply voltage range or dual supplies: 2 V to 36 V or ±1 V to ±18 V
• Very low supply current (0.45 mA) independent of supply voltage (1 mW/
comparator at 5 V)
• Low input bias current: 20 nA typ.
• Low input offset current: ±3 nA typ.
• Low input offset voltage: ±1 mV typ.
• Input common-mode voltage range includes ground
• Low output saturation voltage: 80 mV typ. (Isink = 4 mA)
• Differential input voltage range equal to the supply voltage
• TTL, DTL, ECL, MOS, CMOS compatible outputs

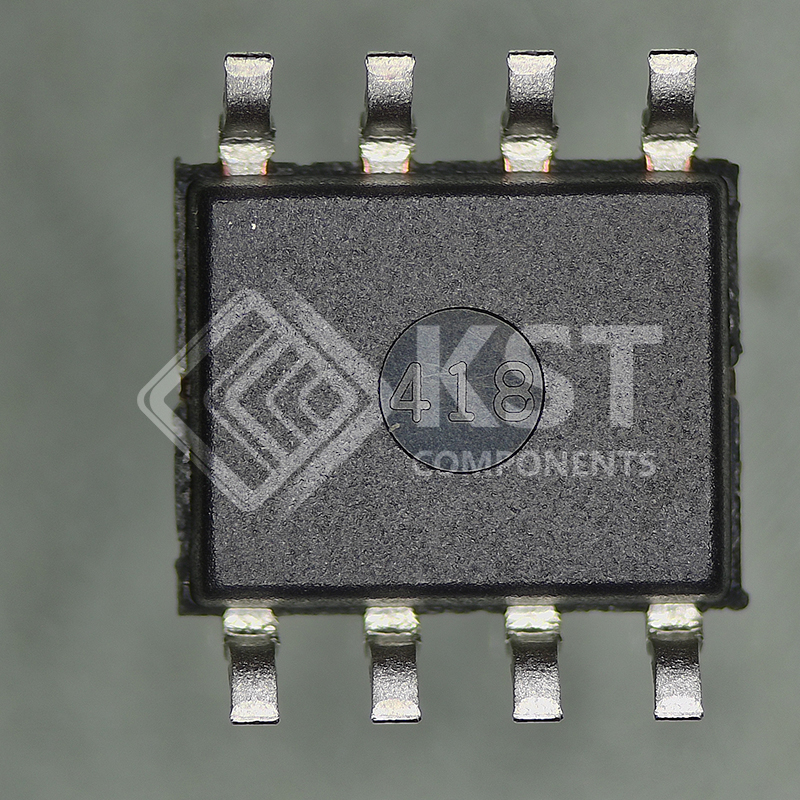

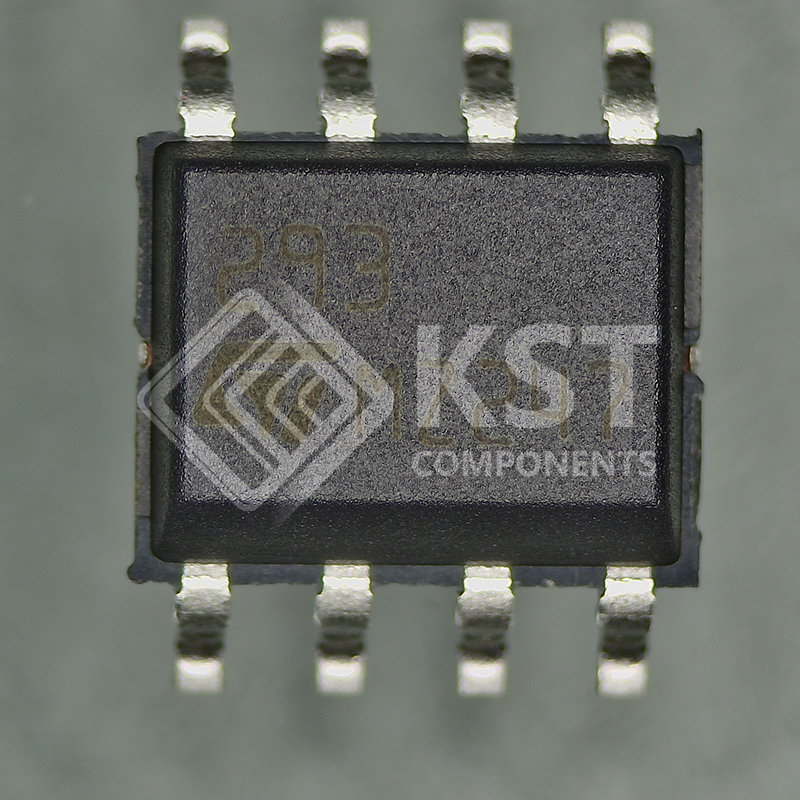

• Available in DFN8 2×2, MiniSO8, TSSOP8, and SO8 packages
• LM393W with internal ESD protection: 2 kV HBM
