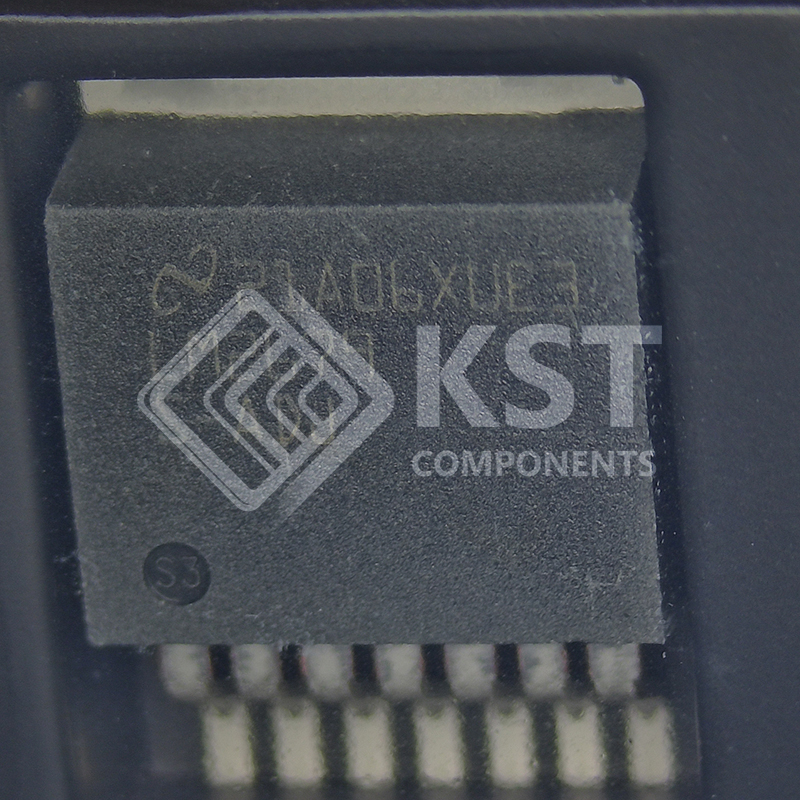

LM2679SX-ADJ/NOPB

The LM2679 series of regulators are monolithic
integrated circuits which provide all of the active
functions for a step-down (buck) switching regulator
capable of driving up to 5-A loads with excellent line
and load regulation characteristics. High efficiency
(>90%) is obtained through the use of a low ONresistance DMOS power switch. The series consists
of fixed output voltages of 3.3 V, 5 V, and 12 V and
an adjustable output version.
The SIMPLE SWITCHER®
concept provides for a
complete design using a minimum number of external
components. A high fixed frequency oscillator
(260 kHz) allows the use of physically smaller sized
components. A family of standard inductors for use
with the LM2679 are available from several
manufacturers to greatly simplify the design process.
Other features include the ability to reduce the input
surge current at power on by adding a soft-start
timing capacitor to gradually turn on the regulator.
The LM2679 series also has built-in thermal
shutdown and resistor programmable current limit of
the power MOSFET switch to protect the device and
load circuitry under fault conditions. The output
voltage is specified to a ±2% tolerance. The clock
frequency is controlled to within a ±11% tolerance.


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    • Efficiency Up to 92%
    • Simple and Easy to Design Using Off-The-Shelf
    External Components
    • Resistor Programmable Peak Current Limit Over a
    Range of 3 A to 7 A
    • 120-mΩ DMOS Output Switch
    • 3.3-V, 5-V, 12-V Fixed Output and Adjustable
    (1.2 V to 37 V) Versions
    • ±2% Maximum Output Tolerance Over Full Line
    and Load Conditions
    • Wide Input Voltage Range: 8 V to 40 V
    • 260-kHz Fixed Frequency Internal Oscillator
    • Soft-Start Capability
    • −40 to 125°C Operating Junction Temperature
    Range
