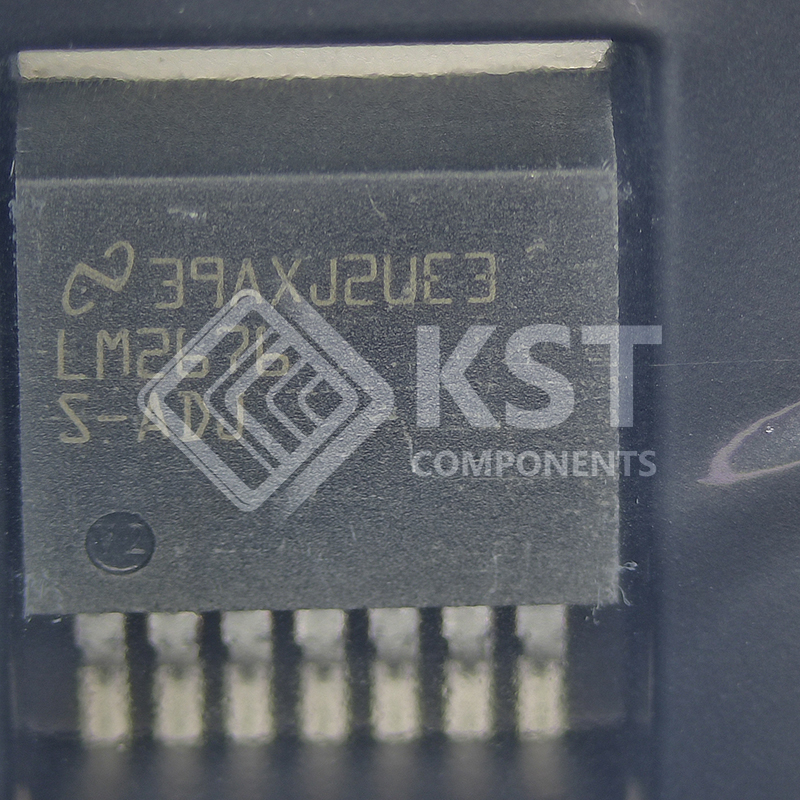

LM2676SX-ADJ/NOPB

The LM2676 series of regulators are monolithic
integrated circuits which provide all of the active
functions for a step-down (buck) switching regulator
capable of driving up to 3-A loads with excellent line
and load regulation characteristics. High efficiency
(> 90%) is obtained through the use of a low ONresistance DMOS power switch. The series consists
of fixed output voltages of 3.3 V, 5 V, and 12 V and an
adjustable output version.
The SIMPLE SWITCHER® power converter concept
provides for a complete design using a minimum
number of external components. A high fixed
frequency oscillator (260 kHz) allows the use of
physically smaller sized components. A family of
standard inductors for use with the LM2676 are
available from several manufacturers to greatly
simplify the design process.
The LM2676 series also has built-in thermal
shutdown, current limiting, and an ON and OFF
control input that can power down the regulator to
a low 50‑µA quiescent current standby condition.
The output voltage is ensured to a ±2% tolerance.
The clock frequency is controlled to within a ±11%
tolerance.


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    • New product available:
    – LMR51430 4.5 to 36-V, 3-A, 500-kHz and 1.1-
    MHz synchronous converter
    • For faster time to market:
    – TLVM13630 3 to 36-V, 3-A, 200-kHz to 2.2-MHz
    power module
    • Efficiency up to 94%
    • Simple and easy to design with (using off-the-shelf
    external components)
    • 150-mΩ DMOS output switch
    • 3.3-V, 5-V, 12-V fixed output and adjustable
    (1.2 V to 37 V) versions
    • 50-µA standby current when switched OFF
    • ±2% maximum output tolerance over full line and
    load conditions
    • Wide input voltage range: 8 V to 40 V
    • 260-kHz fixed frequency internal oscillator
    • –40 to 125°C operating junction temperature range
