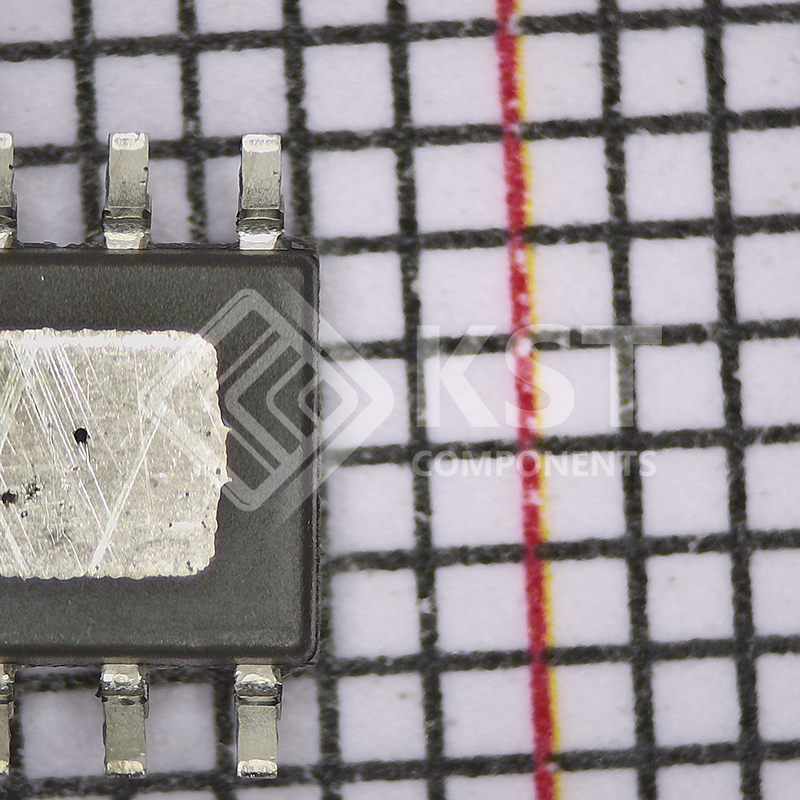

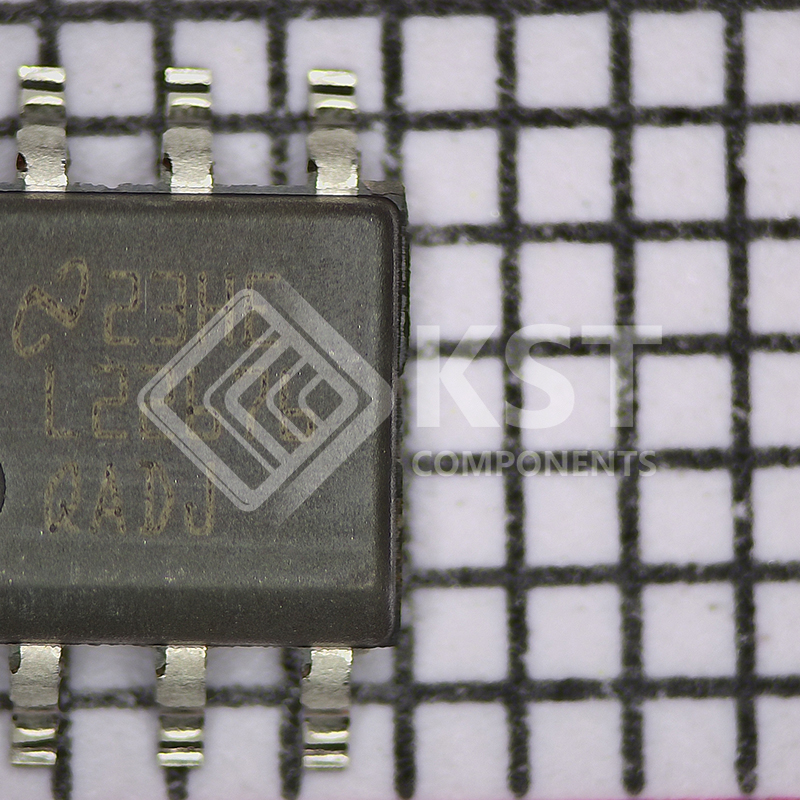

LM22676QMR-ADJ/NOPB

The LM22676 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22676 also has built in thermal shutdown, and current limiting to protect against accidental overloads.

The LM22676 is a member of Texas Instruments’ SIMPLE SWITCHER® family. The SIMPLE SWITCHER® concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH® design tool. TI’s WEBENCH® tool includes features such as external component calculation, electrical simulation, thermal simulation, and Build-It boards for easy design-in.


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    • Wide Input Voltage Range: 4.5 V to 42 V
    • Internally Compensated Voltage Mode Control
    • Stable with Low ESR Ceramic Capacitors
    • 120 mΩ N-Channel MOSFET PFM Package
    • 100 mΩ N-Channel MOSFET PSOP-8 Package
    • Output Voltage Options:
      -ADJ (Outputs as Low as 1.285 V)
      -5.0 (Output Fixed to 5 V)
    • ±1.5% Feedback Reference Accuracy
    • Switching Frequency of 500 kHz
    • –40°C to 125°C Operating
      Junction Temperature Range
    • Precision Enable Pin
    • Integrated Boot-Strap Diode
    • Integrated Soft-Start
    • Fully WEBENCH® Enabled
    • LM22676Q is an Automotive Grade Product
      that is AEC-Q100 Grade 1 Qualified
      (–40°C to +125°C Operating Junction
      Temperature)
    • SO PowerPAD (Exposed Pad
    • PFM (Exposed Pad)
