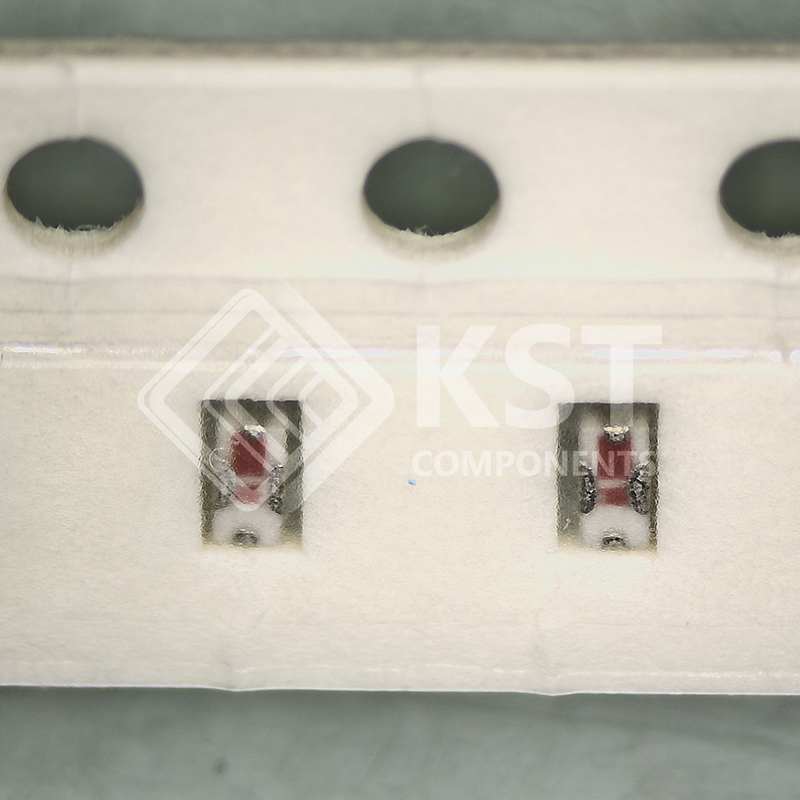

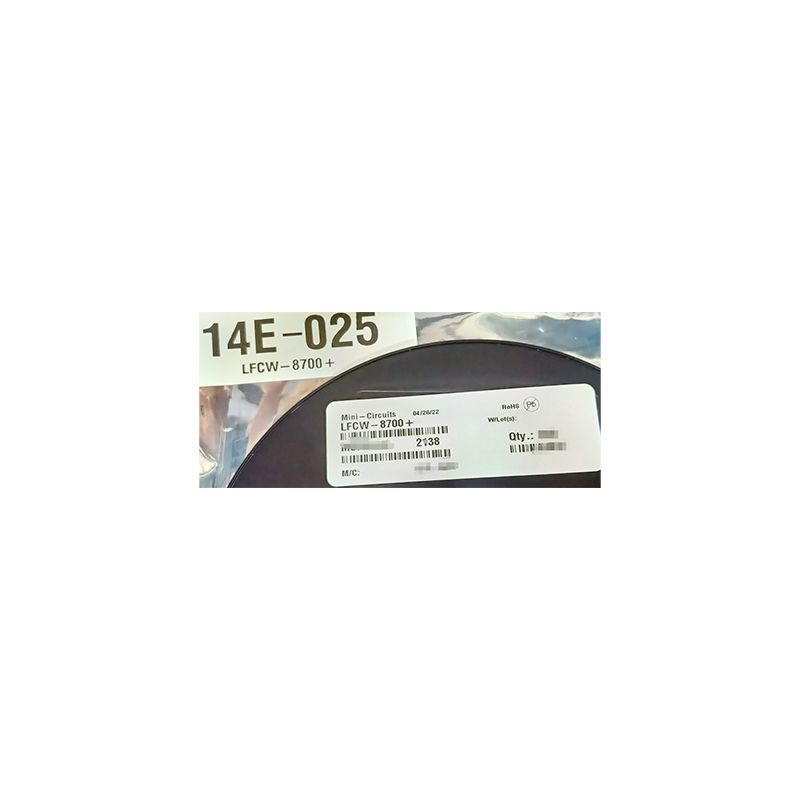

LFCW-8700+

Mini-Circuits’ LFCW-8700+ is an LTCC low pass filter with a passband from DC to 8.7 GHz, supporting a variety of
applications. This model provides 1.6 dB typical passband insertion loss and provides a very good stopband rejection
due to strategically constructed layout with minimal interaction between components. It handles up to 2.5W RF input
power and provides a wide operating temperature range from -55 to +125°C. Housed in a tiny 0603 ceramic form
factor with wraparound terminations, the filter is ideal for dense PCB layouts and with minimal performance variation
due to parasitics.

Category: Filters

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE

SPECIFICATION

• Very good rejection, 37 dB typical
• Rugged, ceramic construction
• Tiny size, 0.063″ x 0.032″ x 0.024″ (0603)
• Good power handling, 2.5W

Ultra-wide stopband: The LTCC lowpass filter provides a very good stopband rejection until 26.5 GHz suitable for high
end applications.
LTCC Construction: Provides repeatable performance in a rugged, ceramic package well suited for tough environments
such as high humidity and temperature extremes.
Tiny size ( 0.063″ x 0.032″ x 0.024″): Saves space in dense circuit board layouts and minimizes the effects of parasitics.
Good power handling, 2.5W: Supports a wide range of system power requirements.
Wrap-around terminations: Provides excellent solderability and easy visual inspection.
