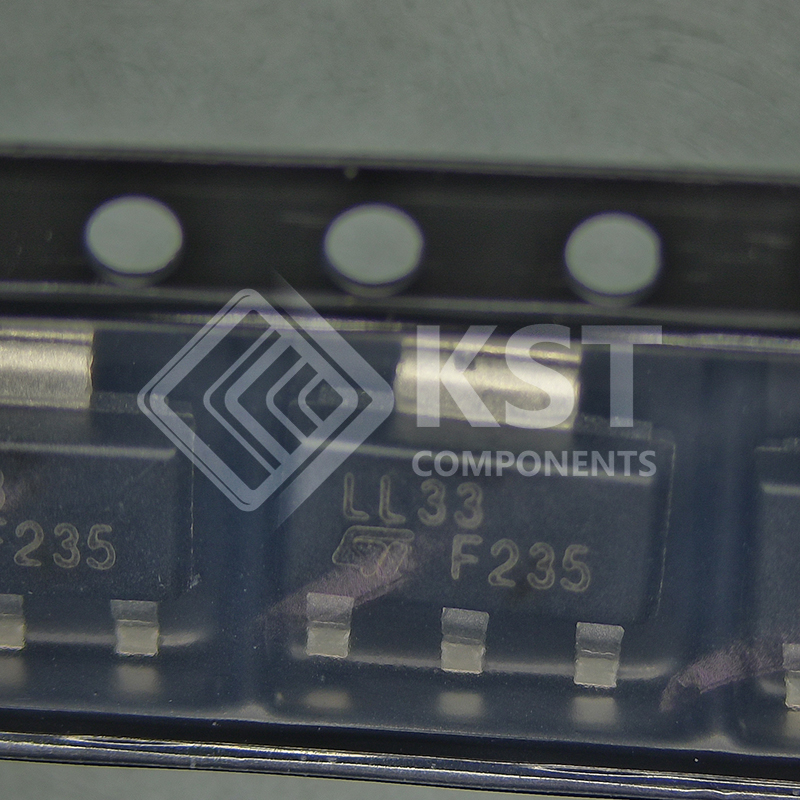

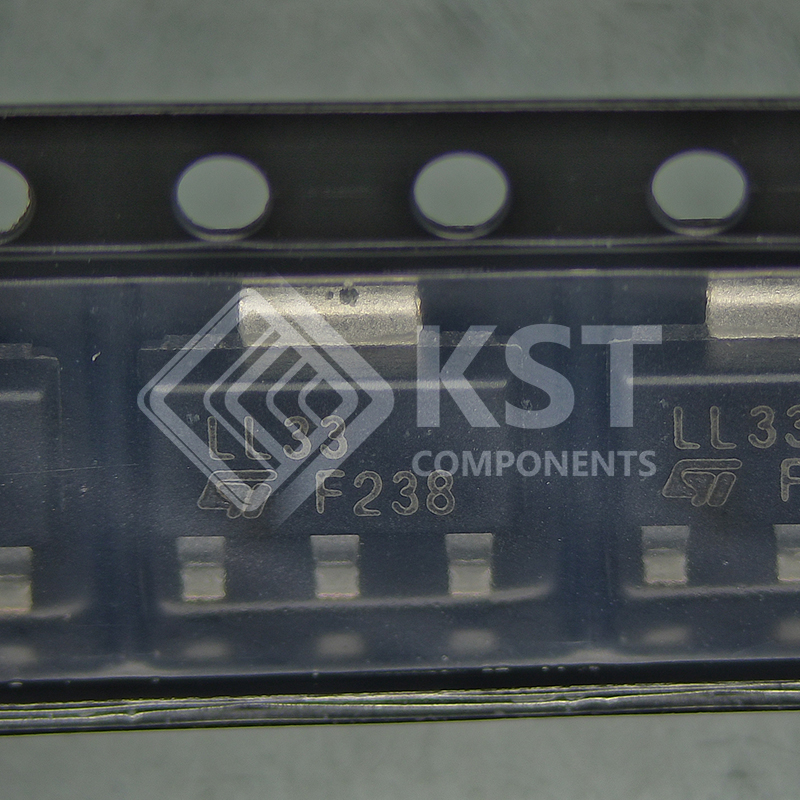

    LDL1117S33R

    The LDL1117 provides 1.2 A of maximum current with an input voltage range from
    2.5 V to 18 V, and a typical dropout voltage of 350 mV @ 1.2 A.
    The high power supply rejection ratio of 87 dB at 120 Hz, rolling down to more than
    40 dB at 100 kHz, makes the LDL1117 suitable for direct regulations in SMPS and
    secondary linear regulations in DC-DC converters.
    This device includes current limit, SOA and thermal protections.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      • Input voltage from 2.5 V to 18 V
      • 20 V AMR
      • Available on fixed output voltages: 1.2 V (1.185 V), 1.5 V, 1.8 V, 2.5 V, 3 V, 3.3 V,
      5.0 V (other options are available on request)
      • Guaranteed output current 1.2 A
      • Typical dropout 350 mV @ 1.2 A
      • Internal thermal, current and power limitation
      • High PSRR 87 dB @ 120 Hz
      • Operating temperature range: -40 °C to 125°C
      • Package SOT223
