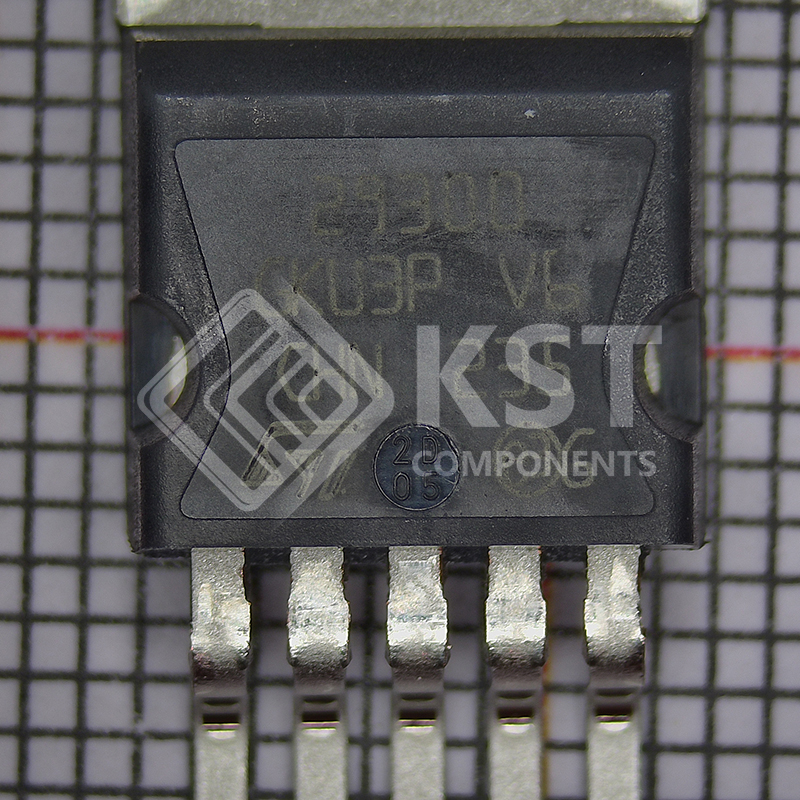

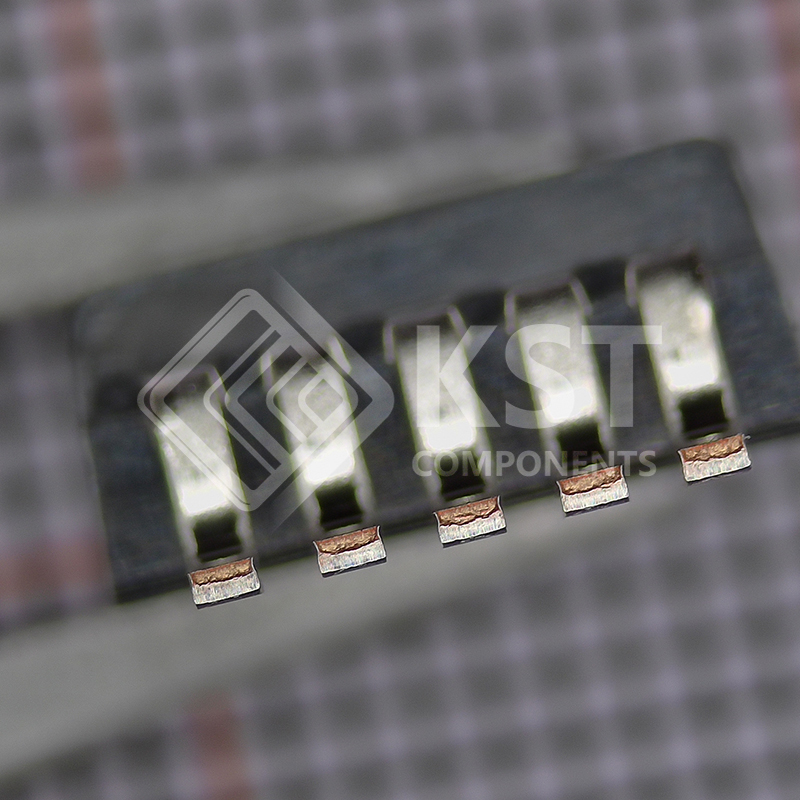

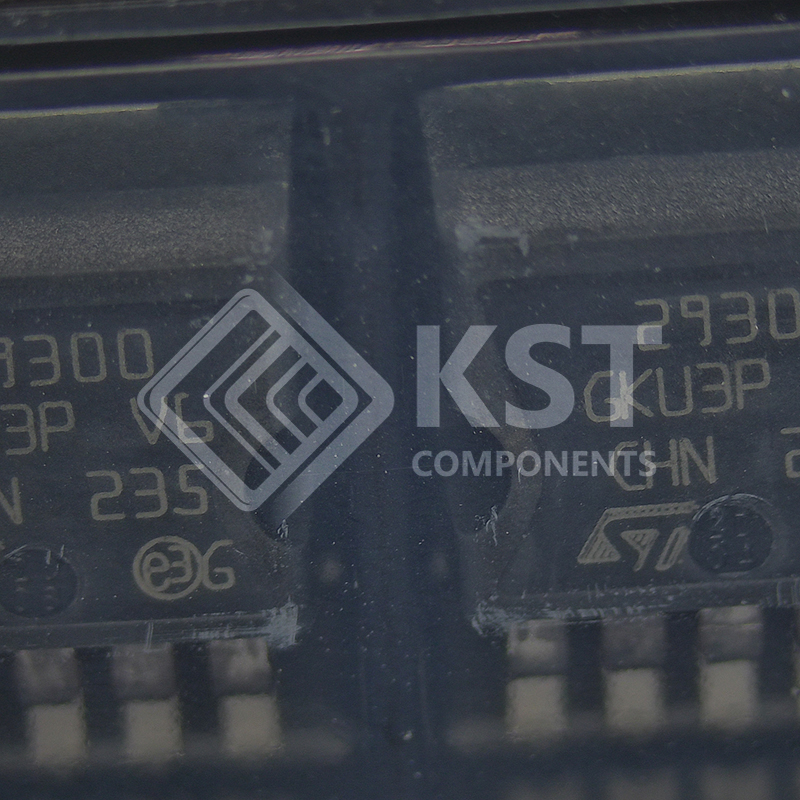

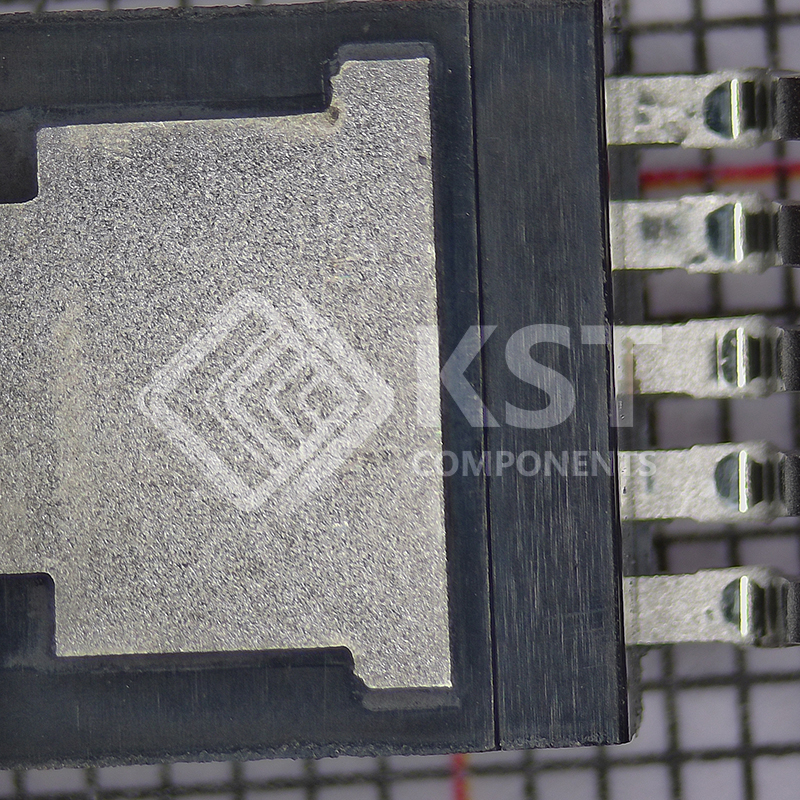

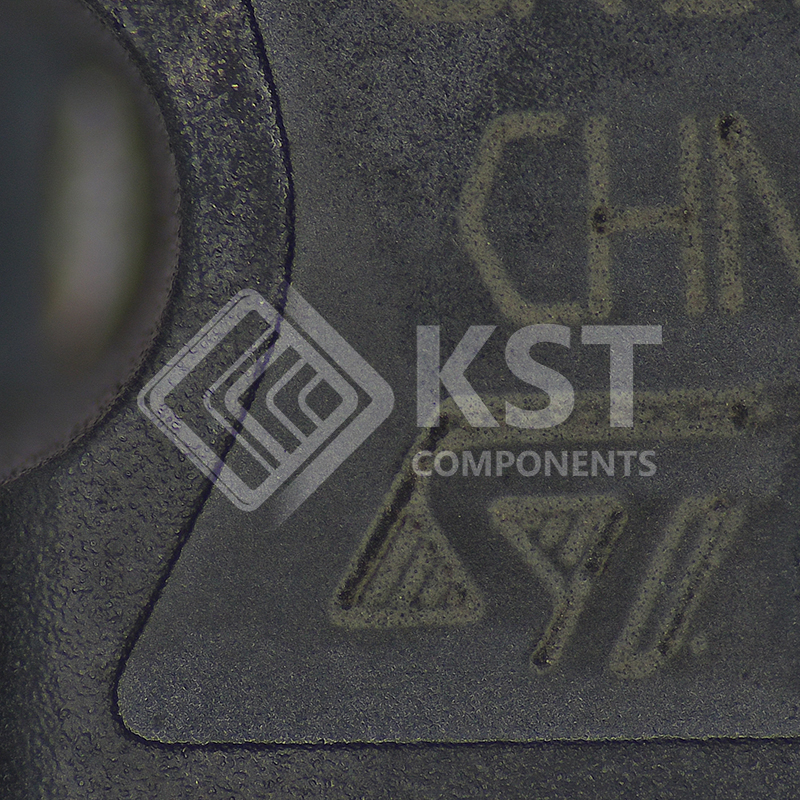

LD29300P2MTR
INQUIRY ONLINE
|
Category
|
Integrated Circuits (ICs)
PMIC
Voltage Regulators – Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr
|
STMicroelectronics
|
|
|
Series
|
–
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Output Configuration
|
Positive
|
|
|
Output Type
|
Adjustable
|
|
|
Number of Regulators
|
1
|
|
|
Voltage – Input (Max)
|
14V
|
|
|
Voltage – Output (Min/Fixed)
|
1.23V
|
|
|
Voltage – Output (Max)
|
13.3V
|
|
|
Voltage Dropout (Max)
|
0.7V @ 3A
|
|
|
Current – Output
|
3A
|
|
|
Current – Quiescent (Iq)
|
50 mA
|
|
|
Current – Supply (Max)
|
100 mA
|
|
|
PSRR
|
75dB (120Hz)
|
|
|
Control Features
|
–
|
|
|
Protection Features
|
Over Current, Over Temperature
|
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
|
|
|
Supplier Device Package
|
P2PAK-4
|
|
|
Base Product Number
|
LD29300
|
