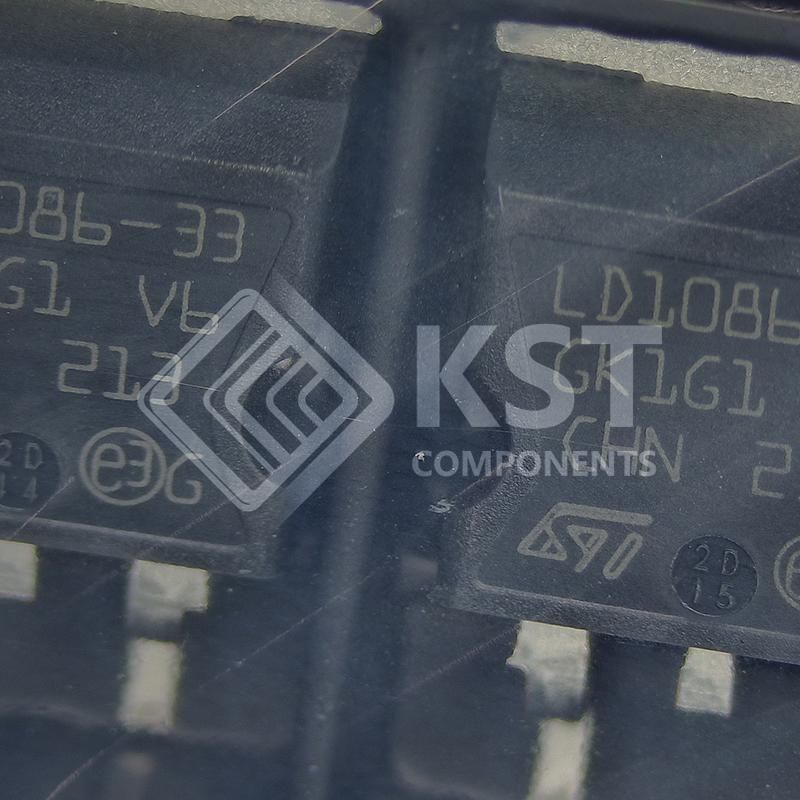

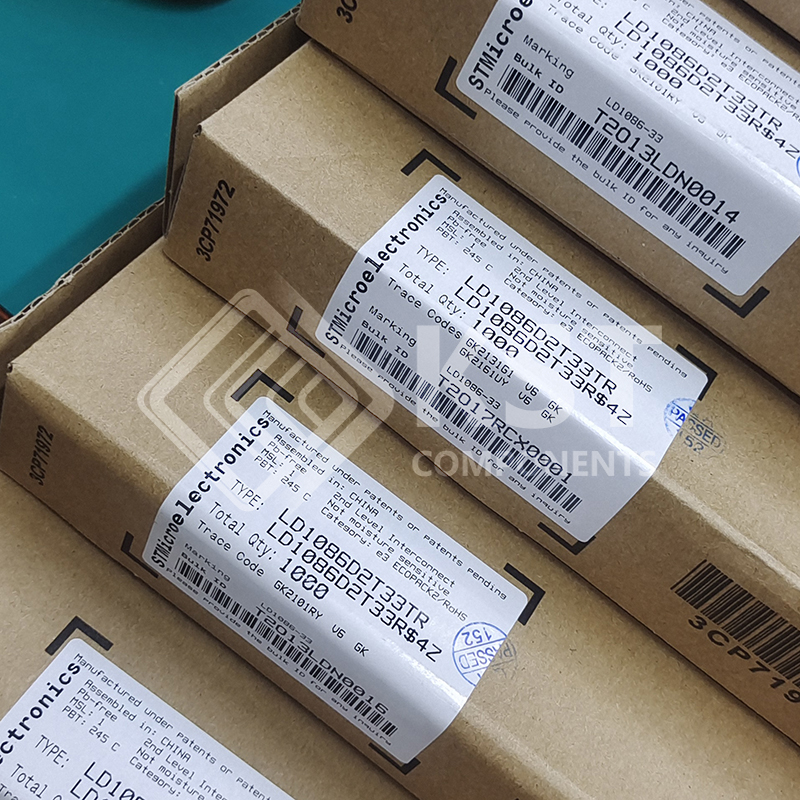

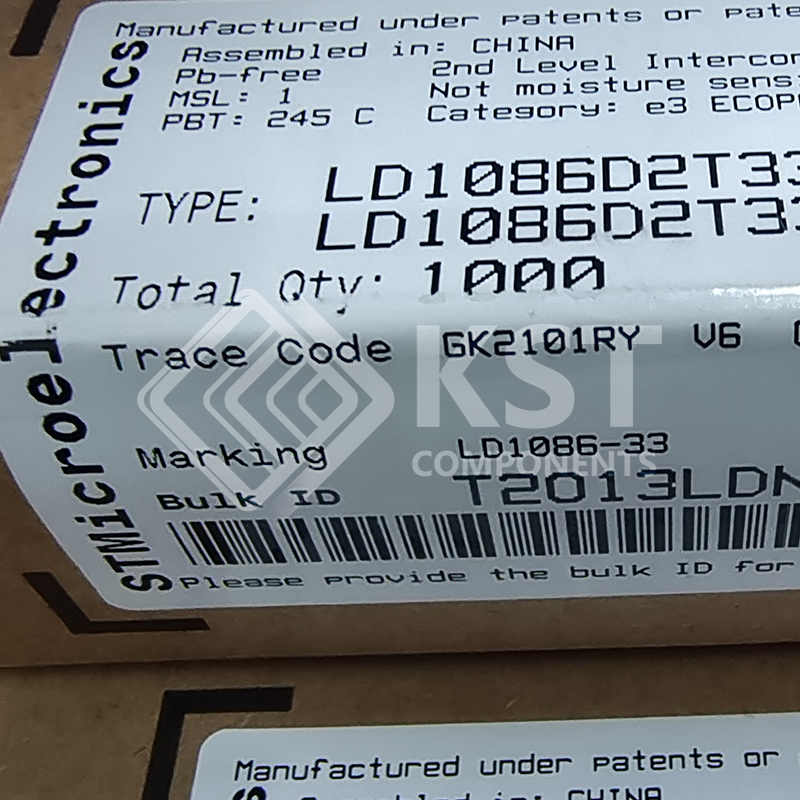

LD1086D2T33TR

The LD1086 is a low drop voltage regulator
capable of providing up to 1.5 A of output current.
Dropout is guaranteed at a maximum of 1.2 V at
the maximum output current, decreasing at lower
loads. The LD1086 is pin-to-pin compatible with
older 3-terminal adjustable regulators, but has
better performance in terms of drop and output
tolerance. Unlike PNP regulators, where a part of
the output current is wasted as quiescent current,
the LD1086 quiescent current flows into the load,
increasing efficiency. Only a 10 µF (minimum)
capacitor is needed for stability. The device is
available in a TO-220, D²PAK, D²PAK/A, DPAK or
DFN8 (4×4) package. On-chip trimming allows the
regulator to reach a very tight output voltage
tolerance; within ± 1% at 25 °C. The LD1086 is
available as automotive grade for adjustable
output voltages in the TO-220 and DPAK
packages. The PAT, SYL, SBL statistical tests
have been performed, and the devices are
qualified according to the AEC-Q100 specification
for the automotive market in the temperature
range of – 40 °C to 125 °C.


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    • Typical dropout: 1.3 V at 1.5 A
    • Three-terminal adjustable or fixed output
    voltage: 1.8 V, 2.5 V, 3.3 V, 5 V
    • Automotive grade (adjustable VOUT in TO-220
    and DPAK packages only)
    • Output current guaranteed up to 1.5 A
    • Output tolerance: ± 1% at 25 °C and ± 2% in full
    temperature range
    • Internal power and thermal limit
    • Wide operating temperature range – 40 °C to
    125 °C
    • Package available: TO-220, D²PAK, D²PAK/A,
    DPAK and DFN8 (4×4)
    • Pinout compatibility with standard adjustable
    voltage regulators
