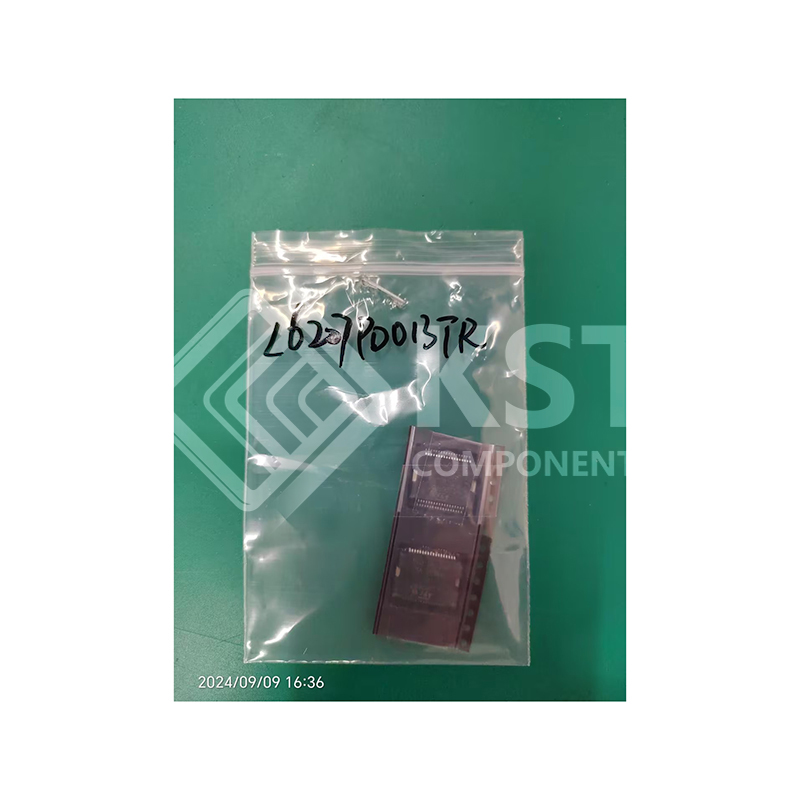

L6207PD013TR
INQUIRY ONLINE
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Full Half-Bridge (H Bridge) Drivers
|
|
|
Manufacturer
|
STMicroelectronics
|
|
|
Series
|
–
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Output Configuration
|
Half Bridge (4)
|
|
|
Applications
|
DC Motors, Stepper Motors, Voltage Regulators
|
|
|
Interface
|
Logic
|
|
|
Load Type
|
Inductive
|
|
|
Technology
|
DMOS
|
|
|
Rds On (Typ)
|
300mOhm
|
|
|
Current – Output / Channel
|
2.8A
|
|
|
Current – Peak Output
|
5.6A
|
|
|
Voltage – Supply
|
8V ~ 52V
|
|
|
Voltage – Load
|
8V ~ 52V
|
|
|
Operating Temperature
|
-25°C ~ 125°C (TJ)
|
|
|
Features
|
Bootstrap Circuit
|
|
|
Fault Protection
|
Current Limiting, Over Temperature, UVLO
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
36-PowerBSSOP (0.433″, 11.00mm Width)
|
|
|
Supplier Device Package
|
PowerSO-36 Slug Up
|
|
|
Base Product Number
|
L6207
|
