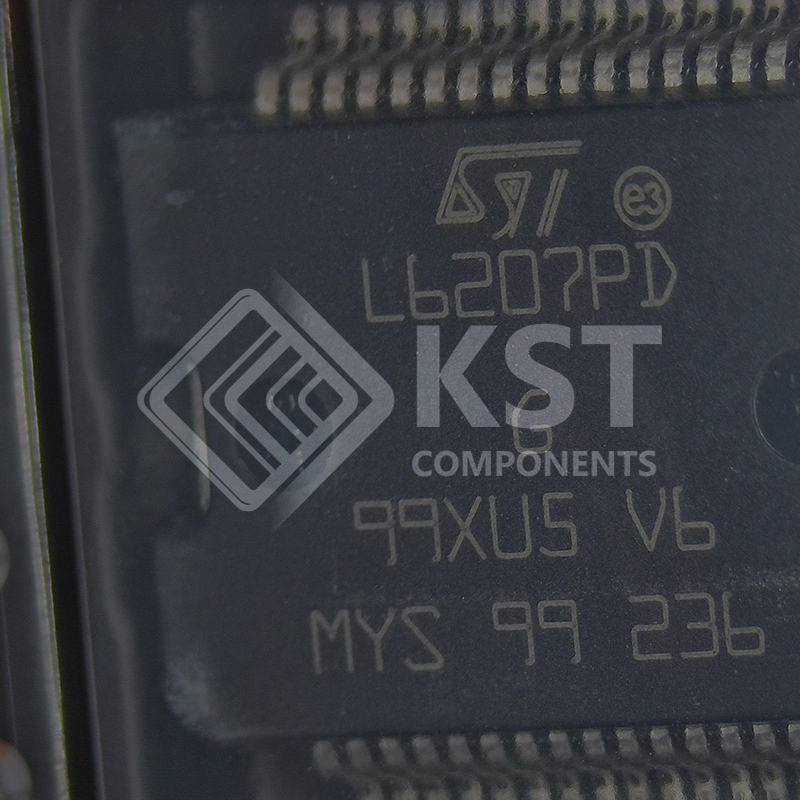

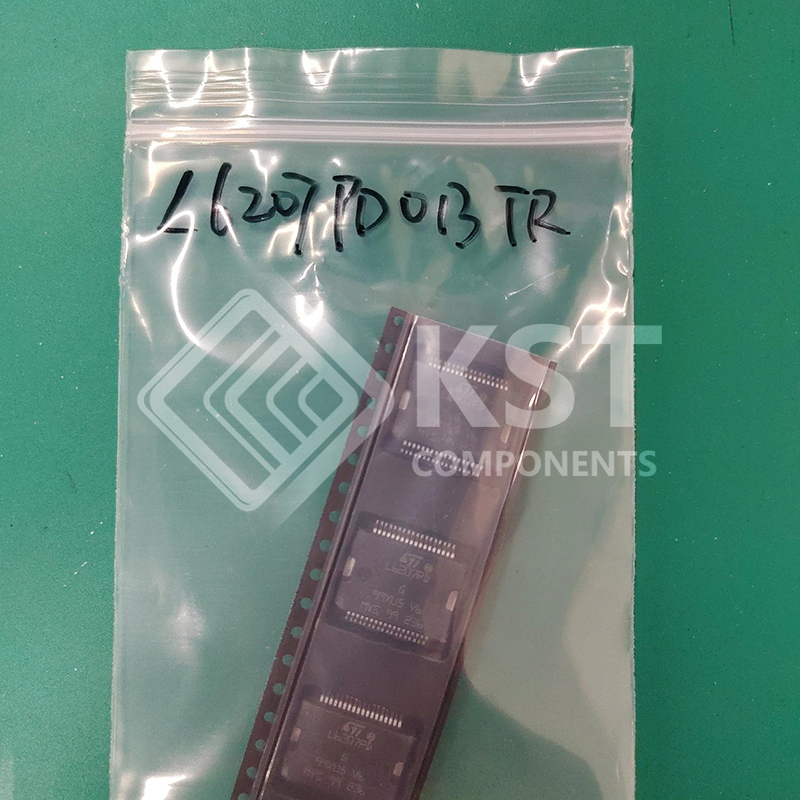

L6207PD013TR

The L6207 device is a DMOS dual full bridge
designed for motor control applications, realized
in BCD technology, which combines isolated
DMOS power transistors with CMOS and bipolar
circuits on the same chip. The device also
includes two independent constant off time PWM
current controllers that perform the chopping
regulation. Available in PowerSO36 and SO24
(20 + 2 + 2) packages, the L6207 device features
a non-dissipative overcurrent protection on the
high-side Power MOSFETs and thermal
shutdown.


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

     Operating supply voltage from 8 to 52 V
     5.6 A output peak current (2.8 A DC)
     RDS(ON) 0.3  typ. value at Tj
    = 25 °C
     Operating frequency up to 100 KHz
     Non-dissipative overcurrent protection
     Dual independent constant tOFF PWM current
    controllers
     Slow decay synchronous rectification
     Cross conduction protection
