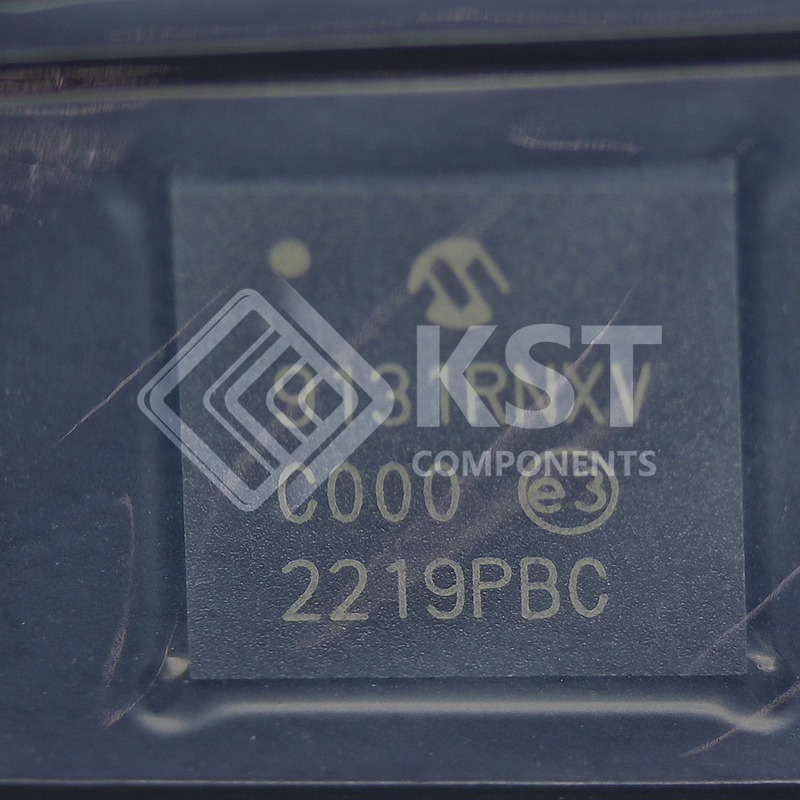

    KSZ9131RNXV-TRVAO

    The KSZ9131RNX is a completely integrated triple-speed (10BASE-T/100BASE-TX/1000BASE-T) Ethernet physicallayer transceiver for transmission and reception of data on standard CAT-5 as well as CAT-5e and CAT-6 unshielded
    twisted pair (UTP) cables.
    The KSZ9131RNX provides the Reduced Gigabit Media Independent Interface (RGMII) for direct connection to RGMII
    MACs in Gigabit Ethernet processors and switches for data transfer at 10/100/1000 Mbps.
    The KSZ9131RNX reduces board cost and simplifies board layout by using on-chip termination resistors for the four
    differential pairs and by integrating an LDO controller to drive a low-cost MOSFET to supply the 1.2V core.
    The KSZ9131RNX offers diagnostic features to facilitate system bring-up and debugging in production testing and in
    product deployment. Parametric NAND tree support enables fault detection between KSZ9131RNX I/Os and the board.
    The LinkMD® TDR-based cable diagnostic identifies faulty copper cabling. Remote, external, and local loopback functions verify analog and digital data paths.
    The KSZ9131RNX is available in a 48-pin, RoHS Compliant VQFN package. The AEC-Q100 automotive qualified parts,
    KSZ9131RNXU and KSZ9131RNXV, are available in a 48-pin RoHS compliant VQFN (wettable) package.

    Categories: ,

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      • Single-Chip 10/100/1000 Mbps Ethernet Transceiver Suitable for IEEE 802.3 Applications
      • RGMII Timing Supports On-Chip Delay According
      to RGMII Version 2.0, with Programming Options
      for External Delay and Making Adjustments and
      Corrections to TX and RX Timing Paths
      • RGMII with 3.3V/2.5V/1.8V Tolerant I/Os
      • Auto-Negotiation to Automatically Select the
      Highest Link-Up Speed (10/100/1000 Mbps) and
      Duplex (Half/Full)
      • On-Chip Termination Resistors for the Differential
      Pairs
      • On-Chip LDO Controller to Support Single 3.3V
      Supply Operation – Requires Only One External
      FET to Generate 1.2V for the Core
      • Jumbo Frame Support Up to 16 KB
      • 125 MHz Reference Clock Output
      • Energy-Detect Power-Down Mode for Reduced
      Power Consumption When Cable is Not Attached
      • Energy Efficient Ethernet (EEE) Support with
      Low-Power Idle (LPI) Mode and Clock Stoppable
      for 100BASE-TX/1000BASE-T and Transmit
      Amplitude Reduction with 10BASE-Te Option
      • Wake-On-LAN (WOL) Support with Robust
      Custom-Packet Detection
      • Programmable LED Outputs for Link, Activity, and
      Speed
      • Baseline Wander Correction
      • Quiet-WIRE® EMI Reduction (100BASE-TX)
      • LinkMD® TDR-based Cable Diagnostic to Identify
      Faulty Copper Cabling
      • Signal Quality Indication
      • Parametric NAND Tree Support to Detect Faults
      Between Chip I/Os and Board
      • Loopback Modes for Diagnostics
      • Automatic MDI/MDI-X Crossover to Detect and
      Correct Pair Swap at All Speeds of Operation
      • Automatic Detection and Correction of Pair
      Swaps, Pair Skew, and Pair Polarity
      • MDC/MDIO Management Interface for PHY Register Configuration
      • Interrupt Pin Option
      • Power-Down and Power-Saving Modes
      • Operating Voltages
      – Core (DVDDL, AVDDL, AVDDL_PLL): 1.2V
      (External FET or Regulator)
      – VDD I/O (DVDDH): 3.3V, 2.5V, or 1.8V
      – Transceiver (AVDDH): 3.3V or 2.5V
      • AEC-Q100 Grade 3 (KSZ9131RNXU) and Grade
      2 (KSZ9131RNXV) Qualified for Automotive
      Applications
      • 48-pin VQFN (7 mm × 7 mm) Package
