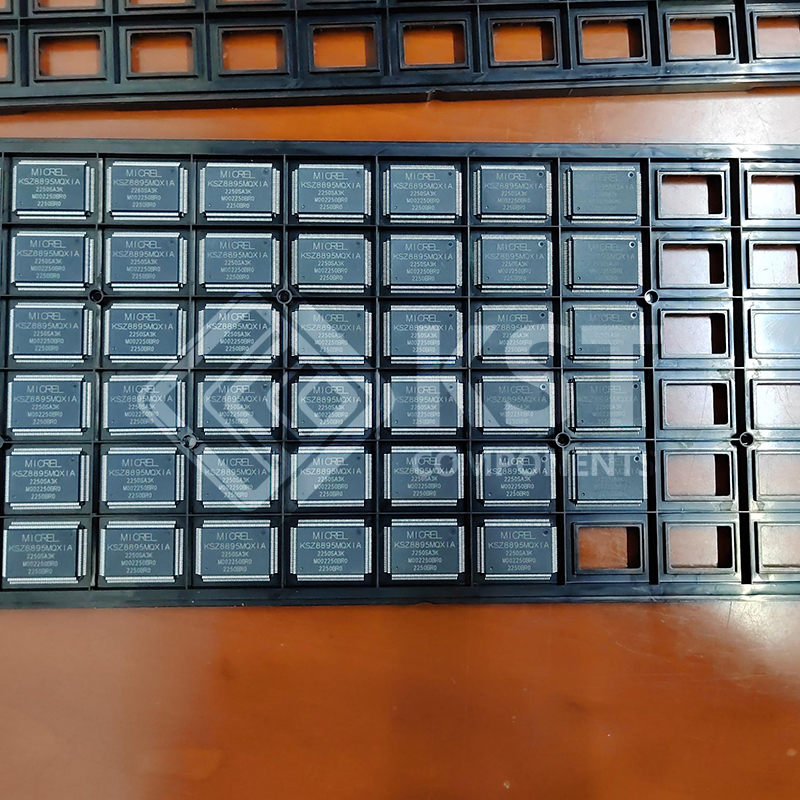

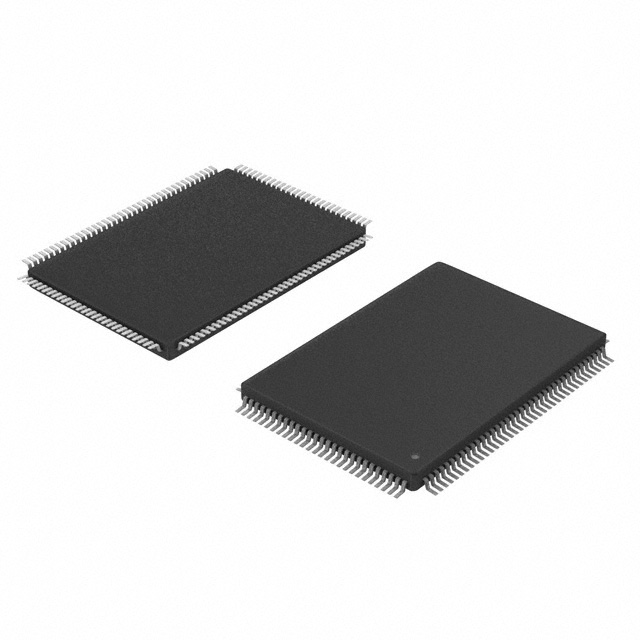

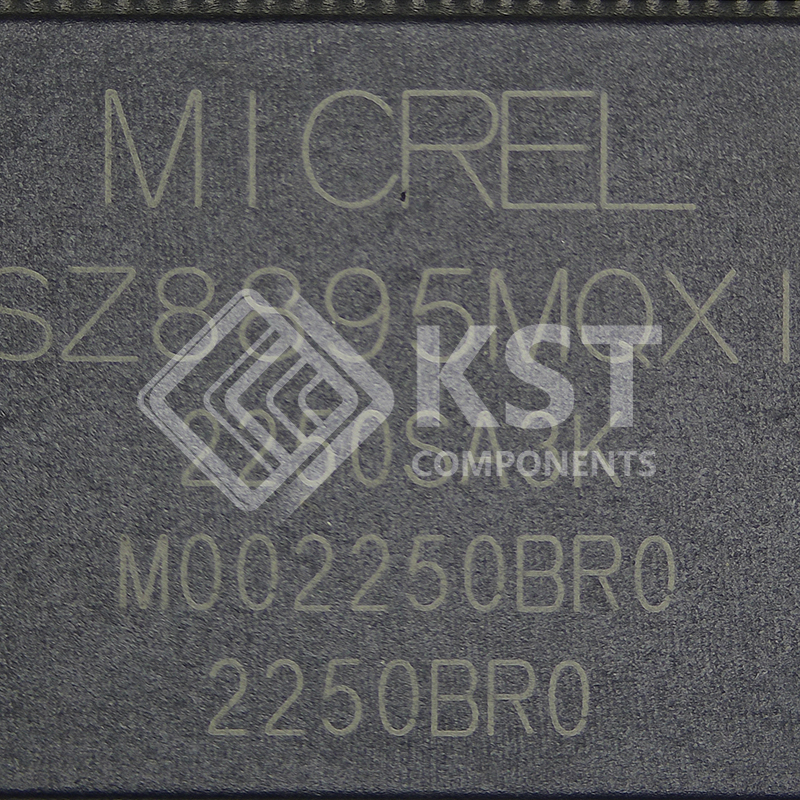

    KSZ8895MQXIA

    The KSZ8895MQX/RQX/FQX/MLX is a highly-integrated, Layer 2 managed, five-port switch with numerous features
    designed to reduce system cost. Intended for cost-sensitive 10/100Mbps five-port switch systems with low power consumption, on-chip termination, and internal core power controllers, it supports high-performance memory bandwidth and
    shared memory-based switch fabric with non-blocking configuration. Its extensive feature set includes power management, programmable rate limit and priority ratio, tag/port-based VLAN, packets filtering, four-queue QoS prioritization,
    management interfaces, and MIB counters. The KSZ8895 family provides multiple CPU data interfaces to effectively
    address both current and emerging fast Ethernet applications when Port 5 is configured to separate MAC5 with SW5-
    MII/RMII and PHY5 with P5-MII/RMII interfaces.

    Categories: ,

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      • IEEE 802.1q VLAN Support for up to 128 Active
      VLAN Groups (Full-Range 4096 of VLAN IDs)
      • Static MAC Table Supports up to 32 Entries
      • VLAN ID Tag/Untagged Options, Per Port Basis
      • IEEE 802.1p/q Tag Insertion or Removal on a Per
      Port Basis Based on Ingress Port (Egress)
      • Programmable Rate Limiting at the Ingress and
      Egress on a Per Port Basis
      • Jitter-Free Per Packet Based Rate Limiting Support
      • Broadcast Storm Protection with Percentage Control (Global and Per Port Basis)
      • IEEE 802.1d Rapid Spanning Tree Protocol
      RSTP Support
      • Tail Tag Mode (1 Byte Added Before FCS) Support at Port 5 to Inform the Processor Which
      Ingress Port Receives the Packet
      • 1.4 Gbps High-Performance Memory Bandwidth
      and Shared Memory Based Switch Fabric with
      Fully Non-Blocking Configuration
      • Dual MII with MAC 5 and PHY 5 on Port 5, SW5-
      MII/RMII for MAC 5 and P5-MII/RMII for PHY 5
      • Enable/Disable Option for Huge Frame Size up to
      2000 Bytes Per Frame
      • IGMP v1/v2 Snooping (IPv4) Support for Multicast
      Packet Filtering
      • IPv4/IPv6 QoS Support
      • Support Unknown Unicast/Multicast Address and
      Unknown VID Packet Filtering
      • Self-Address Filtering
