    ISO1042DWV

    The ISO1042 device is a galvanically-isolated
    controller area network (CAN) transceiver that meets
    the specifications of the ISO11898-2 (2016) standard.
    The ISO1042 device offers ±70-V DC bus fault
    protection and ±30-V common-mode voltage range.
    The device supports up to 5-Mbps data rate in CAN
    FD mode allowing much faster transfer of payload
    compared to classic CAN. This device uses a silicon
    dioxide (SiO2
    ) insulation barrier with a withstand
    voltage of 5000 VRMS and a working voltage of 1060
    VRMS. Electromagnetic compatibility has been
    significantly enhanced to enable system-level ESD,
    EFT, surge, and emissions compliance. Used in
    conjunction with isolated power supplies, the device
    protects against high voltage, and prevents noise
    currents from the bus from entering the local ground.
    The ISO1042 device is available for both basic and
    reinforced isolation (see Reinforced and Basic
    Isolation Options). The ISO1042 device supports a
    wide ambient temperature range of –40°C to +125°C.

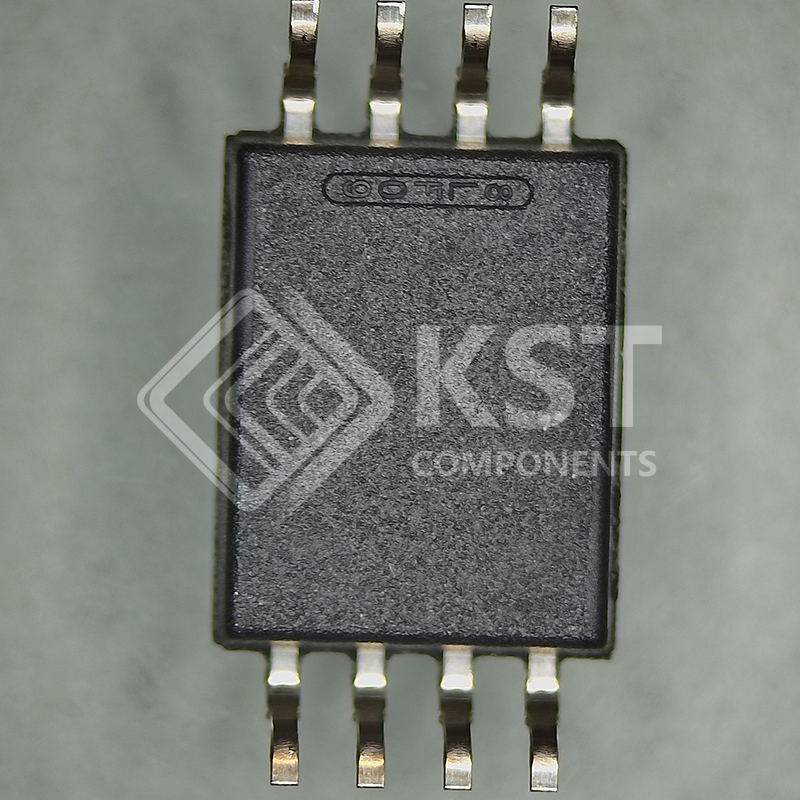

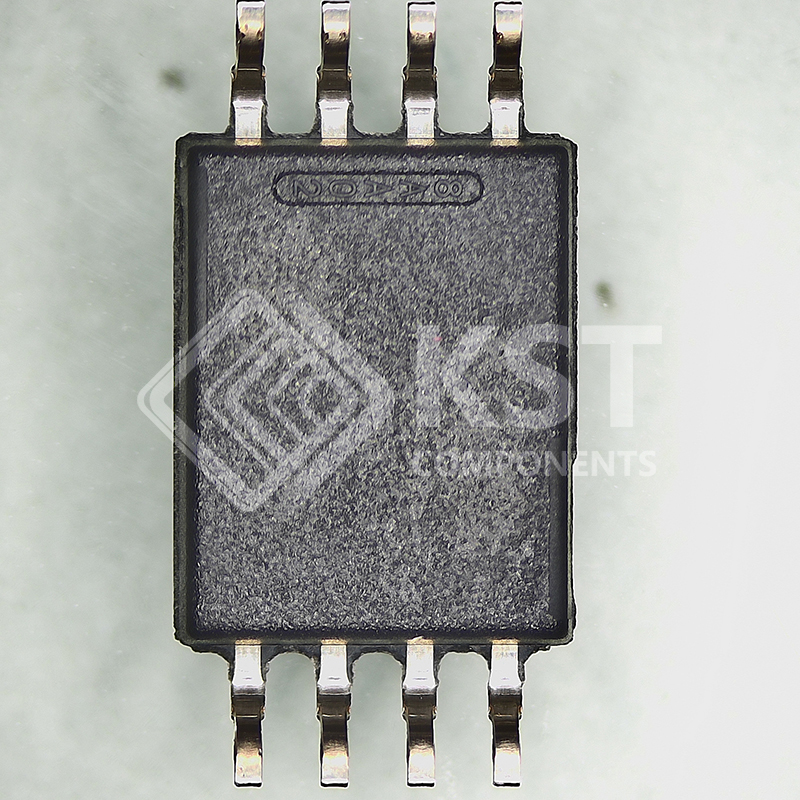

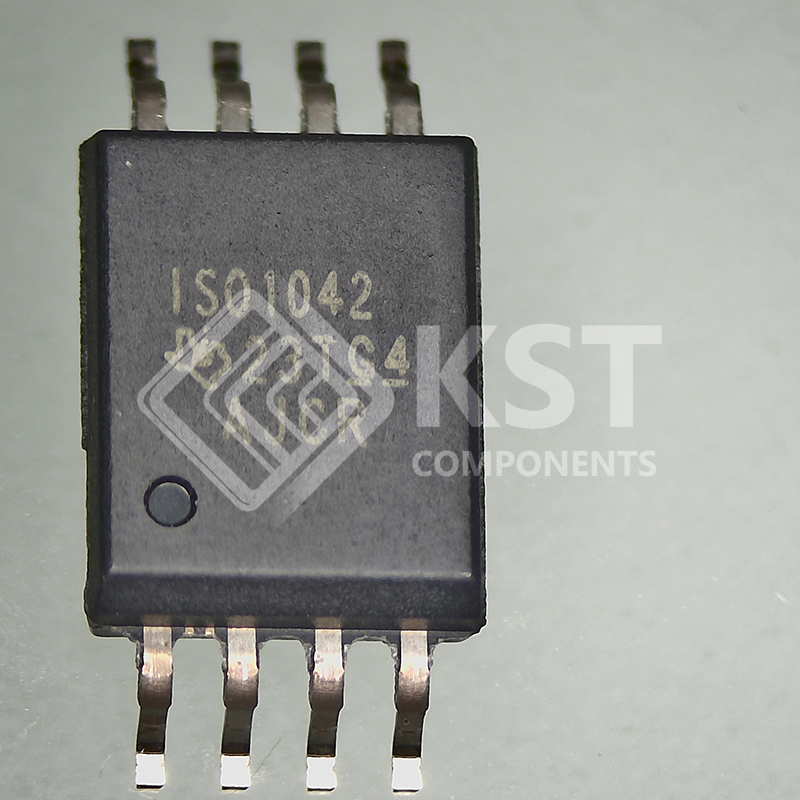

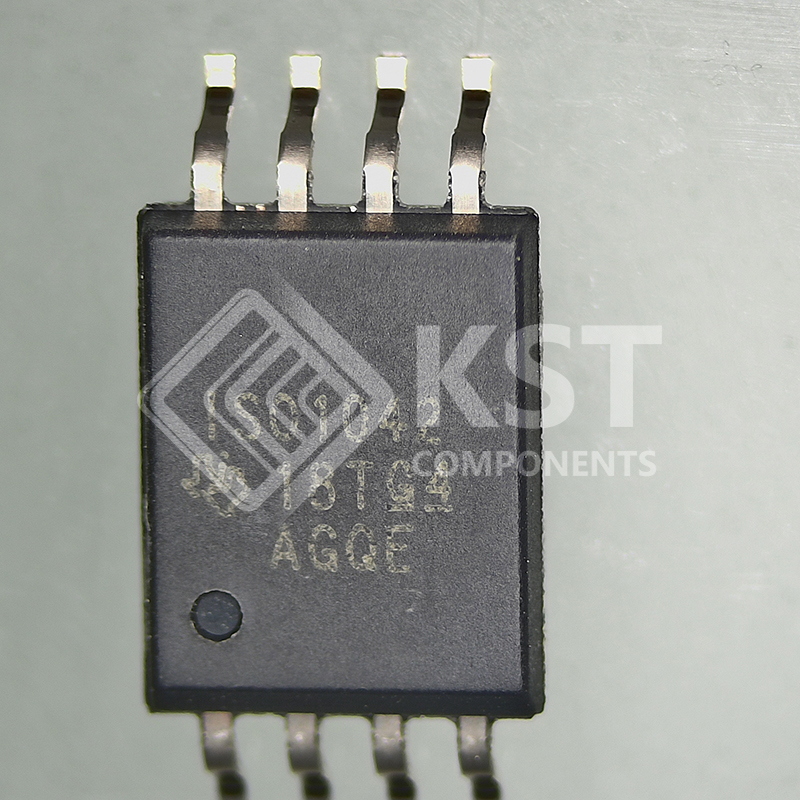

    The device is available in the SOIC-16 (DW) package
    and a smaller SOIC-8 (DWV) package.

    Categories: ,

    Download Details PDF
    Notice:

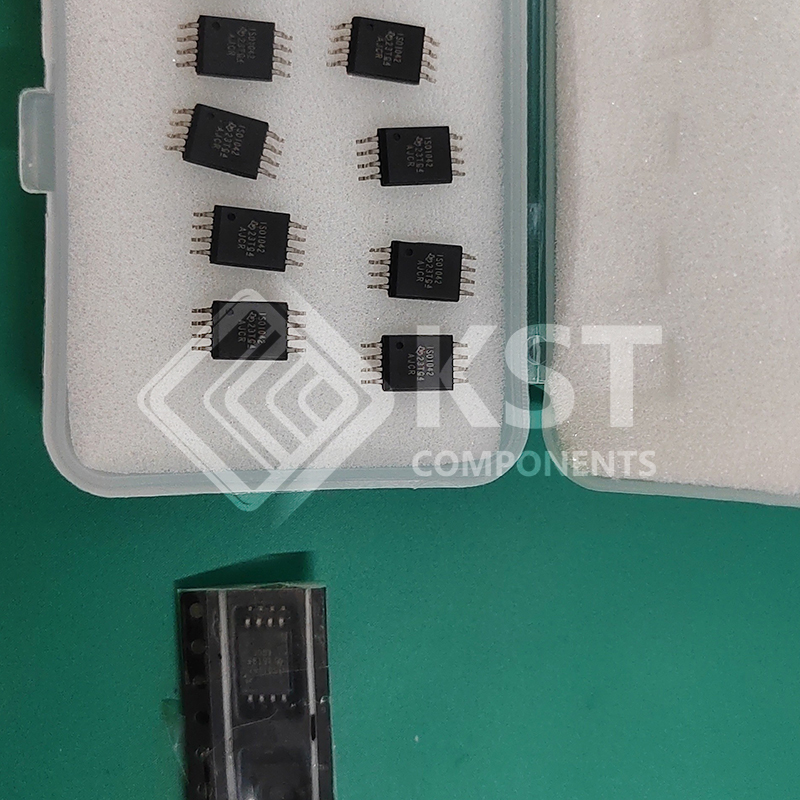

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      • Meets the ISO 11898-2:2016 physical layer
      standard
      • Supports classic CAN up to 1 Mbps and FD
      (Flexible Data Rate) up to 5 Mbps
      • Low loop delay: 152 ns
      • Protection features
      – DC bus fault protection voltage: ±70 V
      – HBM ESD tolerance on bus pins: ±16 kV
      – Driver Dominant Time Out (TXD DTO)
      – Undervoltage protection on VCC1 and VCC2
      • Common-Mode Voltage Range: ±30 V
      • Ideal passive, high impedance bus terminals when
      unpowered
      • High CMTI: 100 kV/µs
      • VCC1 voltage range: 1.71 V to 5.5 V
      – Supports 1.8-V, 2.5-V, 3.3-V and 5.0-V logic
      interface to the CAN controller
      • VCC2 Voltage Range: 4.5 V to 5.5 V
      • Robust Electromagnetic Compatibility (EMC)
      – System-level ESD, EFT, and surge immunity
      – Low emissions
      • Ambient Temperature Range: –40°C to +125°C
      • 16-SOIC and 8-SOIC package options
      • Automotive version available: ISO1042-Q1
      • Safety-related certifications:
      – 7071-VPK VIOTM and 1500-VPK VIORM
      (Reinforced and Basic Options) per DIN VDE
      V 0884-11:2017-01
      – 5000-VRMS Isolation for 1 Minute per UL 1577
      – IEC 60950-1, IEC 60601-1 and EN 61010-1
      certifications
      – CQC, TUV and CSA certifications
