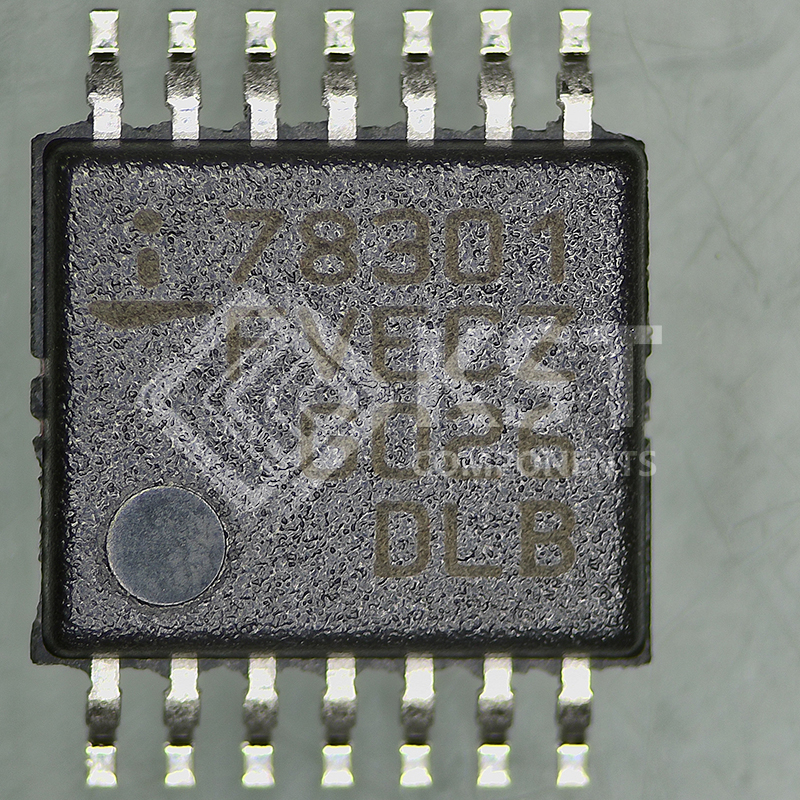

ISL78301FVECZ
INQUIRY ONLINE
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators – Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr
|
Renesas Electronics Corporation
|
|
|
Series
|
–
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
Output Configuration
|
Positive
|
|
|
Output Type
|
Adjustable
|
|
|
Number of Regulators
|
1
|
|
|
Voltage – Input (Max)
|
40V
|
|
|
Voltage – Output (Min/Fixed)
|
2.5V
|
|
|
Voltage – Output (Max)
|
12V
|
|
|
Voltage Dropout (Max)
|
–
|
|
|
Current – Output
|
150mA
|
|
|
Current – Quiescent (Iq)
|
24 µA
|
|
|
Current – Supply (Max)
|
125 µA
|
|
|
PSRR
|
66dB (100Hz)
|
|
|
Control Features
|
Enable
|
|
|
Protection Features
|
Over Current, Over Temperature
|
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
|
Grade
|
Automotive
|
|
|
Qualification
|
AEC-Q100
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|

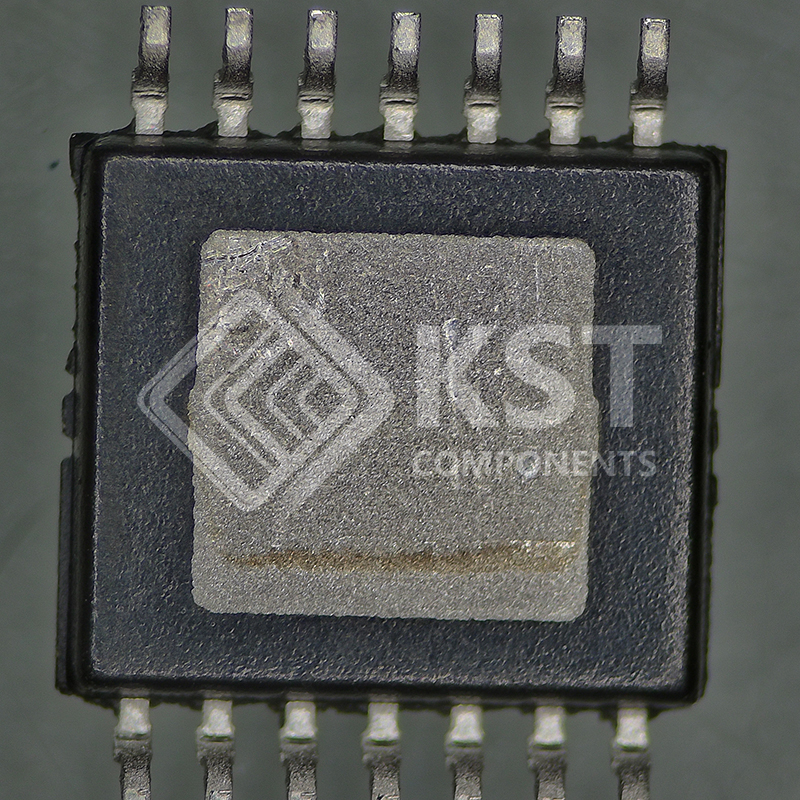

14-TSSOP (0.173″, 4.40mm Width) Exposed Pad
|
|
|
Supplier Device Package
|
14-HTSSOP
|
|
|
Base Product Number
|
ISL78301
|
|
