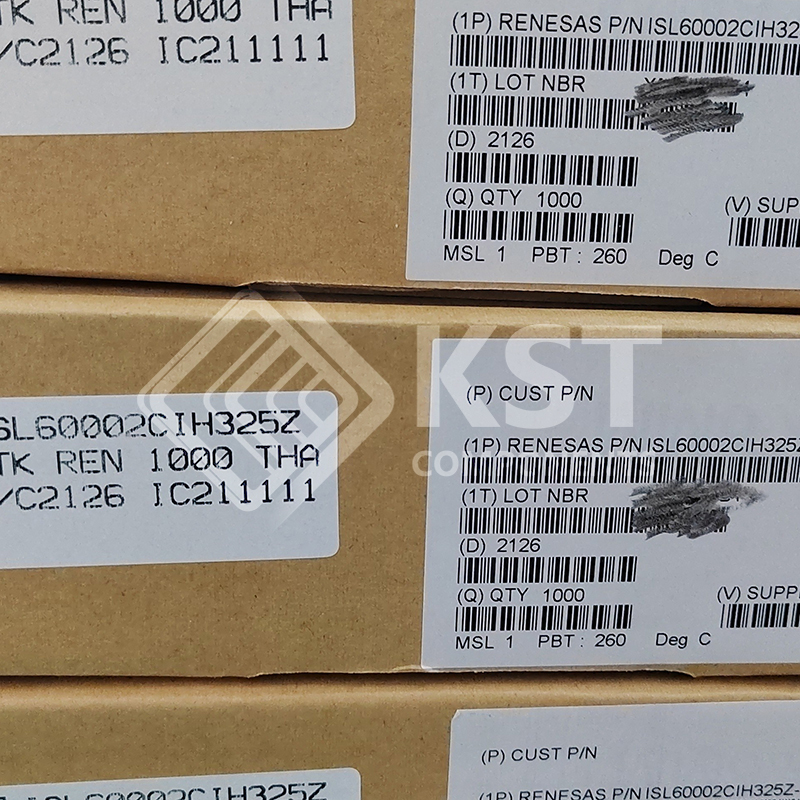

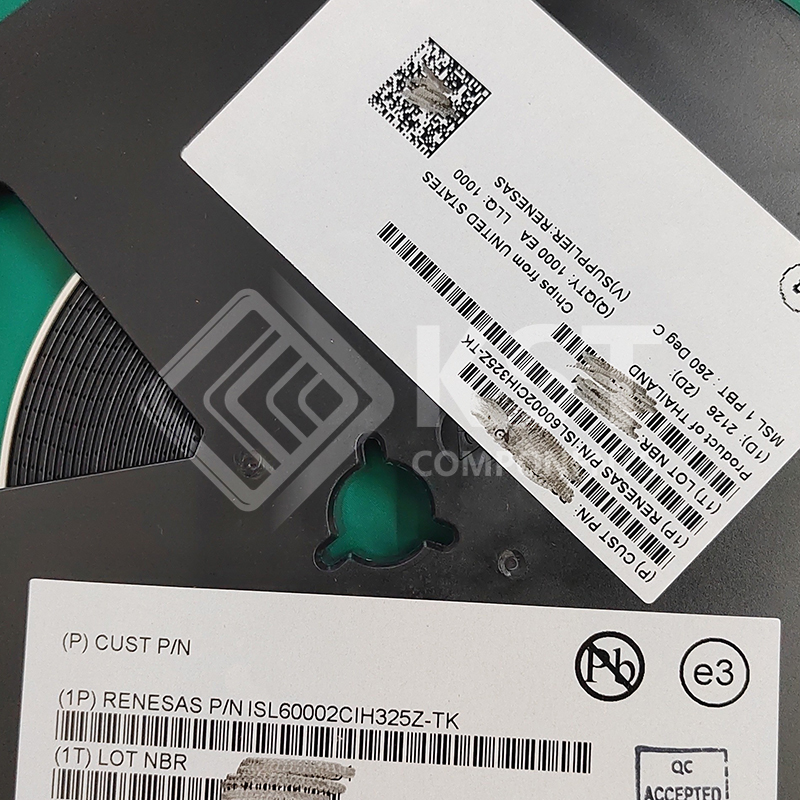

ISL60002CIH325Z-TK

The ISL60002 FGA voltage references are very high precision
analog voltage references fabricated using the Renesas
proprietary Floating Gate Analog (FGA) technology and feature
low supply voltage operation at ultra-low 350nA operating
current.
Additionally, the ISL60002 family features ensured initial
accuracy as low as ±1.0mV and 20ppm/°C temperature
coefficient. The initial accuracy and temperature stability
performance of the ISL60002 family, plus the low supply
voltage and 350nA power consumption, eliminates the need
to compromise thermal stability for reduced power
consumption, making it an ideal companion to high resolution,
low power data conversion systems.
Special Note: Post-assembly x-ray inspection can lead to
permanent changes in device output voltage and should be
minimized or avoided. For further information, please see
“Applications Information” on page 34 and AN1533, “X-Ray
Effects on FGA References”.


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    • Reference voltages . . . . . 1.024V, 1.2V, 1.25V, 1.8V, 2.048V,
    2.5V, 2.6V, 3.0V, and 3.3V
    • Absolute initial accuracy options . . . . . . . . .±1.0mV, ±2.5mV,
    and ±5.0mV
    • Supply voltage range
    – ISL60002-10, -11, -12, -18, -20, -25 . . . . . . . . 2.7V to 5.5V
    – ISL60002-26 . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.8V to 5.5V
    – ISL60002-30 . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2V to 5.5V
    – ISL60002-33 . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5V to 5.5V
    • Ultra-low supply current. . . . . . . . . . . . . . . . . . . . . . .350nA typ
    • Low 20ppm/°C temperature coefficient
    • ISOURCE and ISINK = 7mA
    • ISOURCE and ISINK = 20mA for ISL60002-33 only
    • ESD protection . . . . . . . . . . . . . . . 5.5kV (Human Body Model)
    • Standard 3 Ld SOT-23 packaging
    • Operating temperature range
    – ISL60002-10, -11, -12, -18, -20, -25,
    -26, -30 . . . . . . . . . . . . . . . . . . . . . . . . . . . -40°C to +85°C
    – ISL60002-33 . . . . . . . . . . . . . . . . . . . . . . .-40°C to +105°C
    • Pb-free (RoHS compliant)
