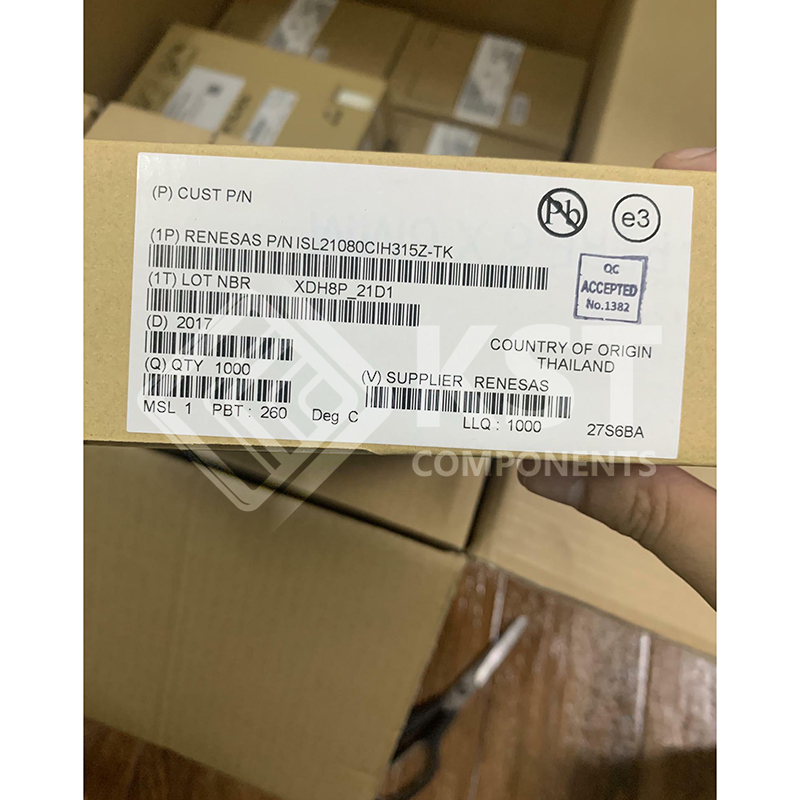

ISL21080CIH315Z-TK

V-Ref Precision 1.5V 7mA 3-Pin SOT-23 T/R


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    • Reference output voltage . . . . . . . . 0.900V, 1.024V, 1.250V,
    1.500V, 2.048V, 2.500V, 3.000V, 3.300V, 4.096V, 5.000V
    • Initial accuracy:
    – ISL21080-09 and -10 . . . . . . . . . . . . . . . . . . . . . . . . . ±0.7%
    – ISL21080-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±0.6%
    – ISL21080-15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±0.5%
    – ISL21080-20 and -25 . . . . . . . . . . . . . . . . . . . . . . . . . ±0.3%
    – ISL21080-30, -33, -41, and -50 . . . . . . . . . . . . . . . . . ±0.2%
    • Input voltage range:
    – ISL21080-09 . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.0V to 5.5V
    – ISL21080-10, -12, -15, -20 and -25. . . . . . . . . 2.7V to 5.5V
    – ISL21080-30 . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2V to 5.5V
    – ISL21080-33 . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5V to 5.5V
    – ISL21080-41. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5V to 8.0V
    – ISL21080-50 . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5V to 8.0V
    • Output voltage noise . . . . . . . . . . . . .30µVP-P (0.1Hz to 10Hz)
    • Supply current . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5µA (max)
    • Tempco . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50ppm/°C
    • Output current capability . . . . . . . . . . . . . . . . . . . . . . . . ±7mA
    • Operating temperature range. . . . . . . . . . . . . -40°C to +85°C
    • Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Ld SOT-23
    • Pb-Free (RoHS compliant)
