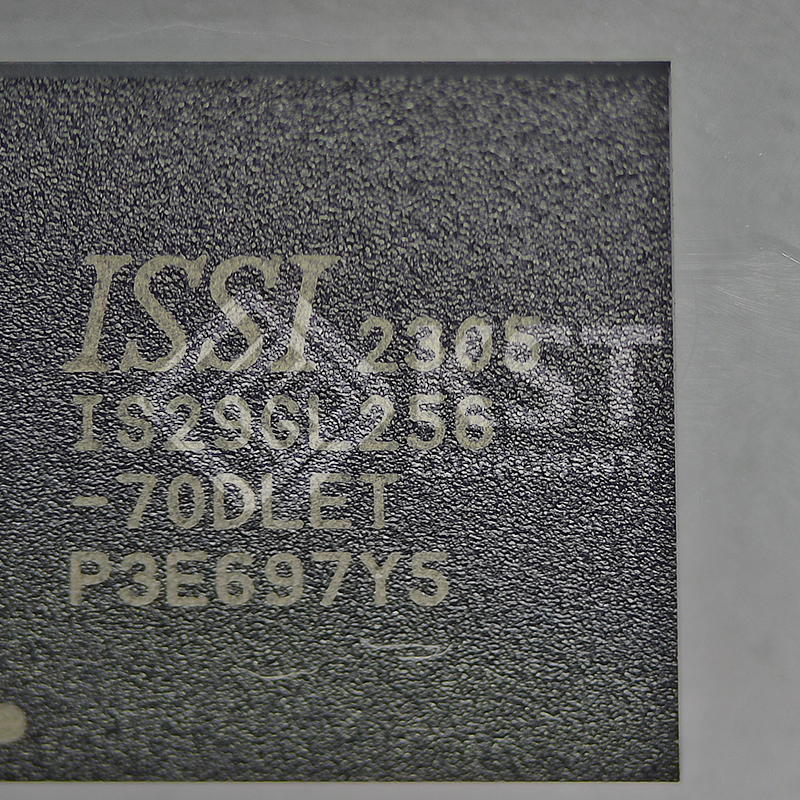

IS29GL256-70DLET

• Single power supply operation
– Full voltage range: 2.7 to 3.6 volts read and
write operations
• Fast Access Time at -40°C to +125°C:
– 70ns (1) at Vcc = 3.0V~3.6V, VIO = 3.0V~3.6V
– VIO Input/Output 1.65V to 3.6V.
– All input levels (address, control, and DQ input
levels) and outputs are determined by voltage
on VIO input.
• 8-word/16-byte page read buffer
• 32-word/64-byte write buffer reduces overall
programming time for multiple-word updates
• Secured Silicon Region (SSR)
– 512-word/1024-byte sector for permanent,
secure identification
– 256-word Factory Locked SSR and 256-word
Customer Locked SSR
• Uniform 64Kword/128KByte Sector
Architecture
• Suspend and Resume commands for Program
and Erase operations
• Write operation status bits indicate program
and erase operation completion
• Support for CFI (Common Flash Interface)
• Volatile and non-volatile methods of Advanced
Sector Protection
• WP#/ACC input
– Accelerates programming time (when VHH is
applied) for greater throughput during system
production
– Protects first or last sector regardless of sector
protection settings
• Hardware reset input (RESET#) resets device
• Ready/Busy# output (RY/BY#) detects program
or erase cycle completion
• Minimum 100K program/erase endurance
cycles.
• Data retention : 20 years (TYP)
• Package Options
– 56-pin TSOP
– 64-ball 13mm x 11mm BGA (Call Factory)
– 64-ball 9mm x 9mm BGA
– 56-ball 9mm x 7mm BGA (Call Factory)
• Temperature Range
– Extended Grade: -40°C to +105°C
– Automotive Grade: -40°C to +125°C
