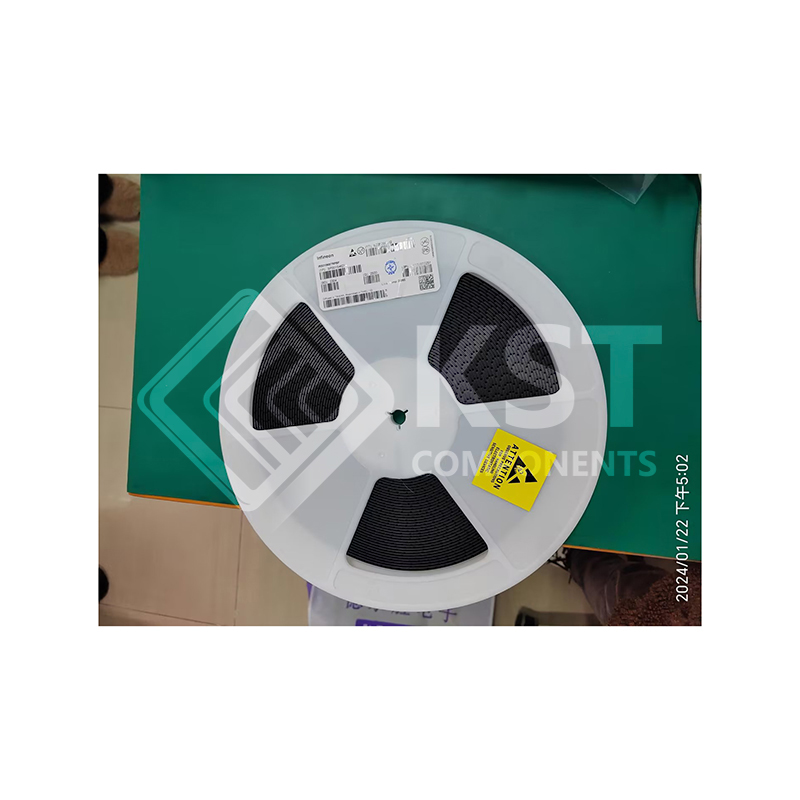

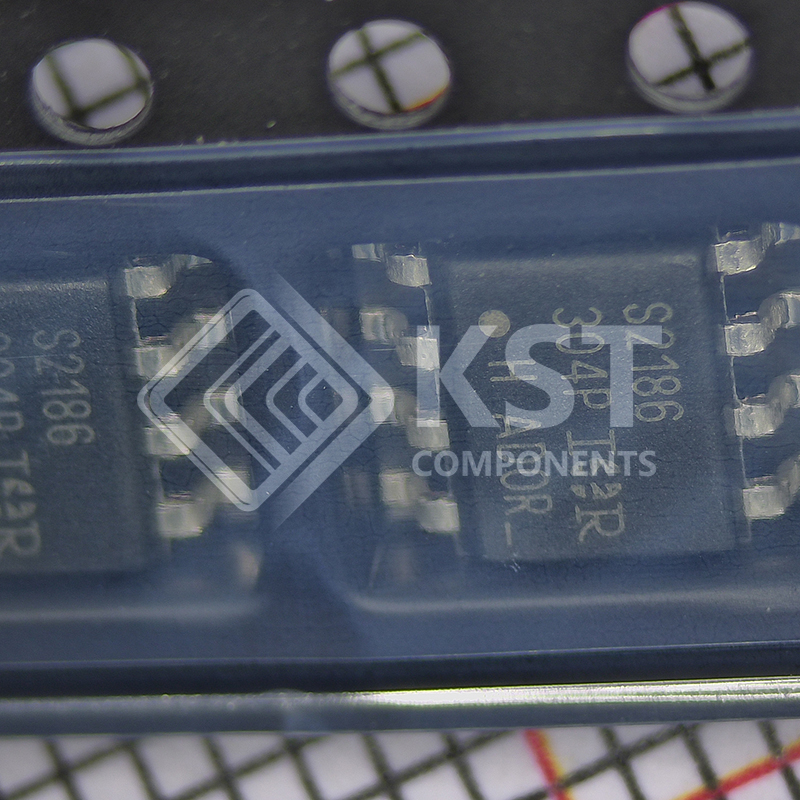

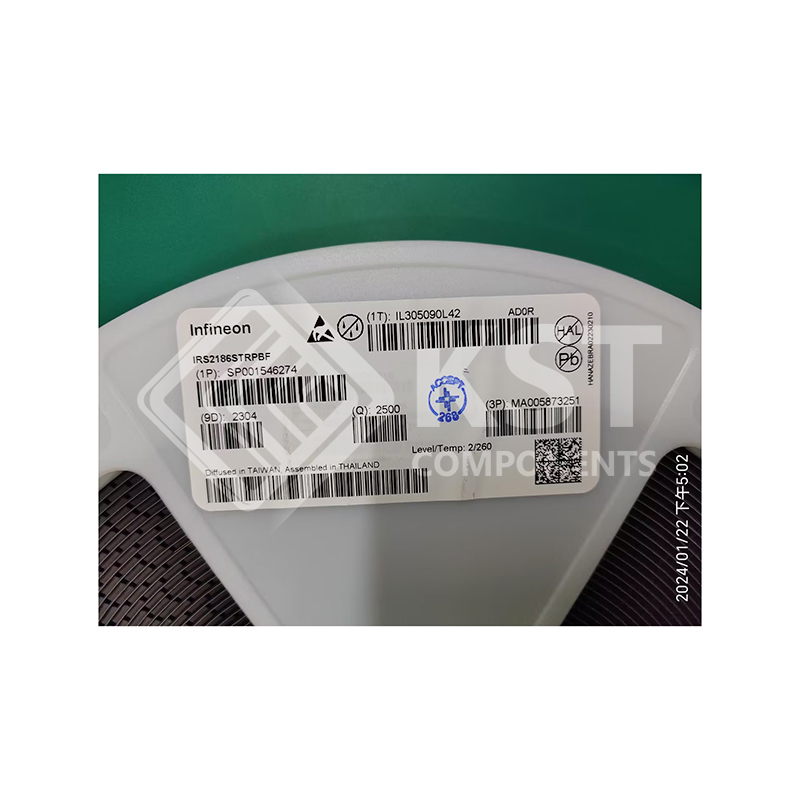

    IRS2186STRPBF

    The IRS2186(4) are high voltage, high speed power MOSFET and
    IGBT drivers with independent high-side and low-side referenced
    output channels. Proprietary HVIC and latch immune CMOS
    technologies enable ruggedized monolithic construction. The logic
    input is compatible with standard CMOS or LSTTL output, down to
    3.3 V logic. The output drivers feature a high pulse current buffer
    stage designed for minimum driver cross-conduction. The floating
    channel can be used to drive an N-channel power MOSFET or IGBT
    in the high-side configuration which operates up to 600 V.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

       Floating channel designed for bootstrap operation
       Fully operational to +600 V
       Tolerant to negative transient voltage
       dV/dt immune
       Gate drive supply range from 10 V to 20 V
       Undervoltage lockout for both channels
       3.3 V and 5 V logic compatible
       Matched propagation delay for both channels
       Logic and power ground +/- 5 V offset
       Lower di/dt gate driver for better noise immunity
       Output source/sink current 4 A / 4 A
       RoHS compliant
