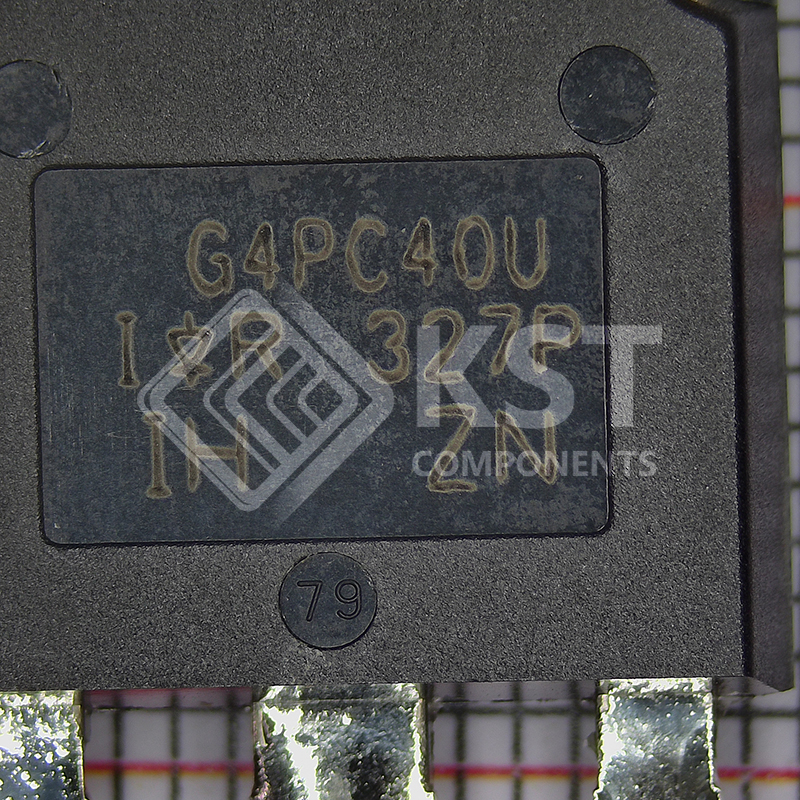

IRG4PC40UPBF
INQUIRY ONLINE
|
Manufacturer
|
Infineon Technologies
|
|
|
Series
|
–
|
|
|
Packaging
|
Bag
|
|
|
Part Status
|
Obsolete
|
|
|
IGBT Type
|
–
|
|
|
Voltage – Collector Emitter Breakdown (Max)
|
600 V
|
|
|
Current – Collector (Ic) (Max)
|
40 A
|
|
|
Current – Collector Pulsed (Icm)
|
160 A
|
|
|
Vce(on) (Max) @ Vge, Ic
|
2.1V @ 15V, 20A
|
|
|
Power – Max
|
160 W
|
|
|
Switching Energy
|
320µJ (on), 350µJ (off)
|
|
|
Input Type
|
Standard
|
|
|
Gate Charge
|
100 nC
|
|
|
Td (on/off) @ 25°C
|
34ns/110ns
|
|
|
Test Condition
|
480V, 20A, 10Ohm, 15V
|
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type
|
Through Hole
|
|
|
Package / Case
|
TO-247-3
|
|
|
Supplier Device Package
|
TO-247AC
|
