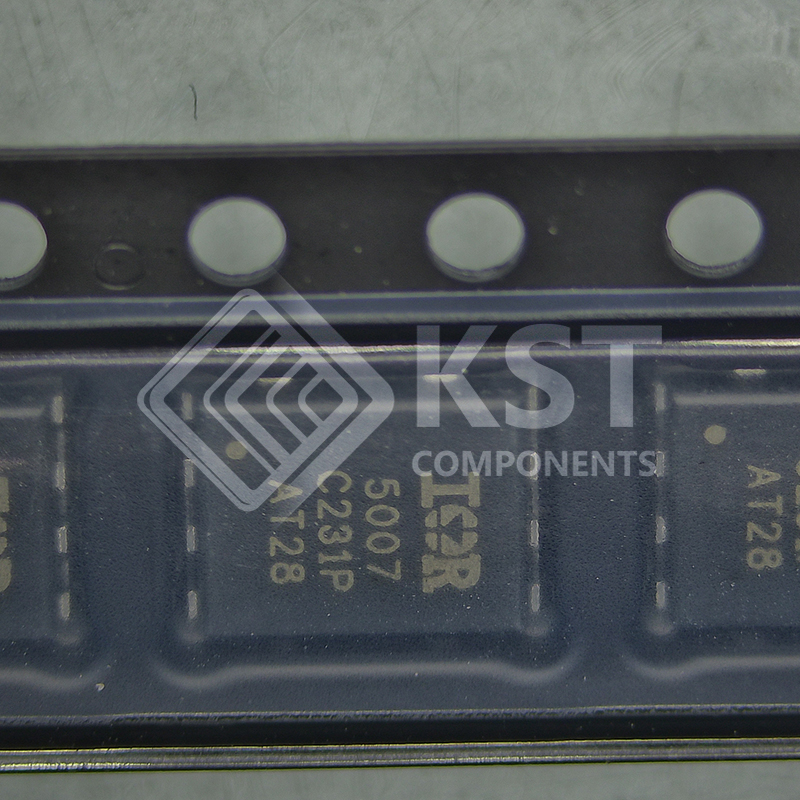

IRFH5007TRPBF
INQUIRY ONLINE
| Mfr | Infineon Technologies |
| Series | HEXFET® |

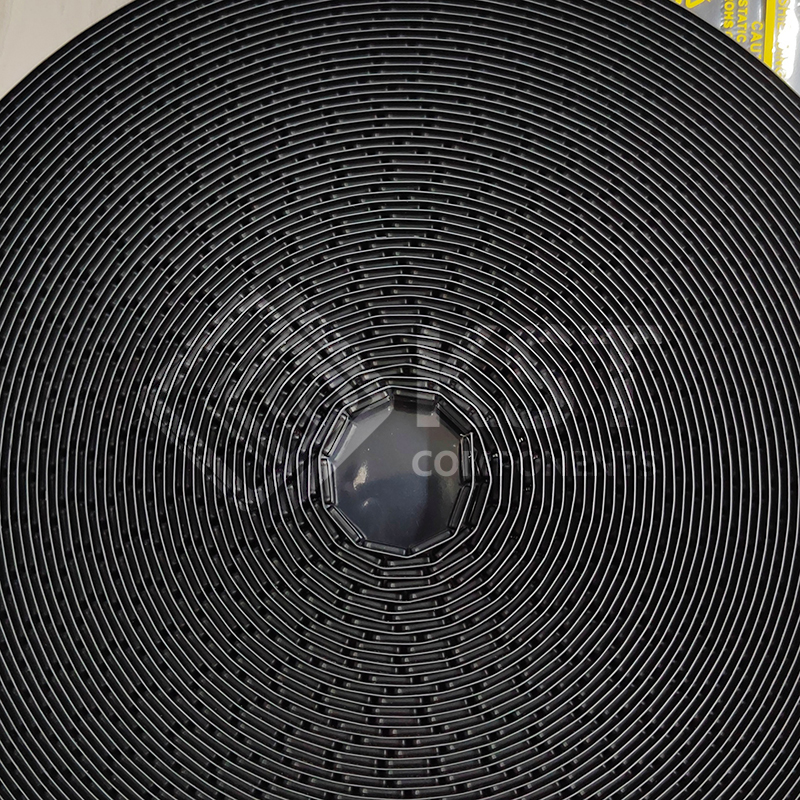

| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 75 V |
| Current – Continuous Drain (Id) @ 25°C | 17A (Ta), 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 5.9mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 150µA |
| Gate Charge (Qg) (Max) @ Vgs | 98 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4290 pF @ 25 V |
| FET Feature | – |
| Power Dissipation (Max) | 3.6W (Ta), 156W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-PQFN (5×6) |
| Package / Case | 8-PowerTDFN |
| Base Product Number | IRFH5007 |
