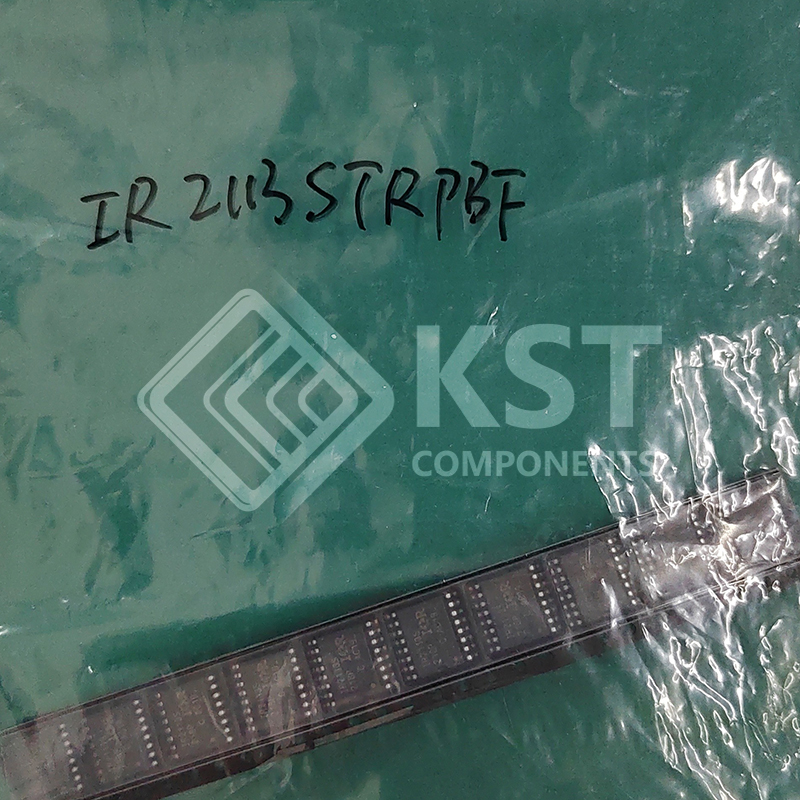

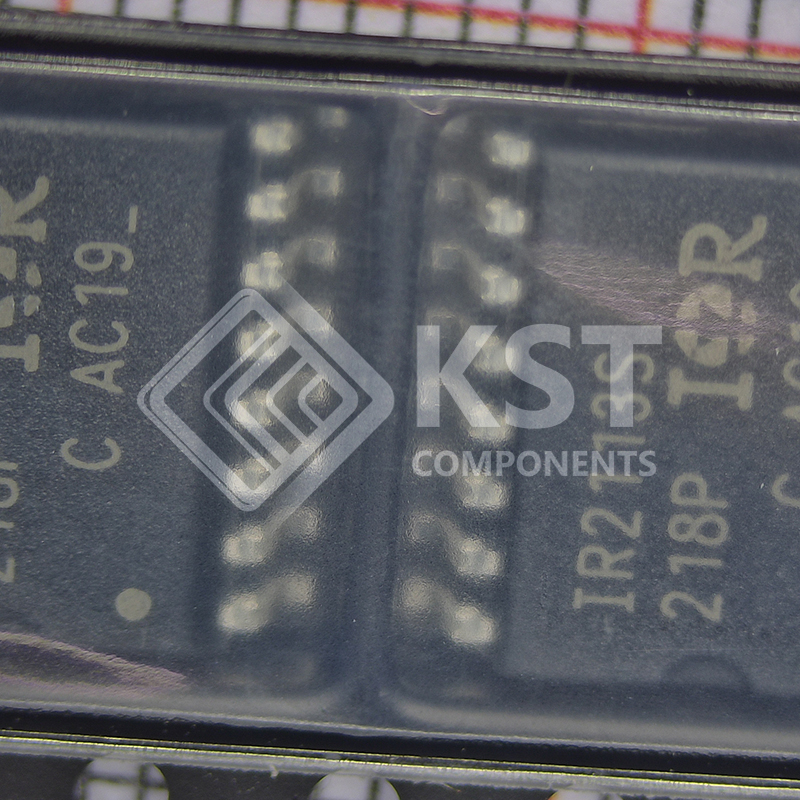

IR2113STRPBF

The IR2110/IR2113 are high voltage, high speed power MOSFET and
IGBT drivers with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable
ruggedized monolithic construction. Logic inputs are compatible with
standard CMOS or LSTTL output, down to 3.3V logic. The output
drivers feature a high pulse current buffer stage designed for minimum
driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications. The
floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which
operates up to 500 or 600 volts.


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    • Floating channel designed for bootstrap operation
    Fully operational to +500V or +600V
    Tolerant to negative transient voltage
    dV/dt immune
    • Gate drive supply range from 10 to 20V
    • Undervoltage lockout for both channels
    • 3.3V logic compatible
    Separate logic supply range from 3.3V to 20V
    Logic and power ground ±5V offset
    • CMOS Schmitt-triggered inputs with pull-down
    • Cycle by cycle edge-triggered shutdown logic
    • Matched propagation delay for both channels
    • Outputs in phase with inputs
