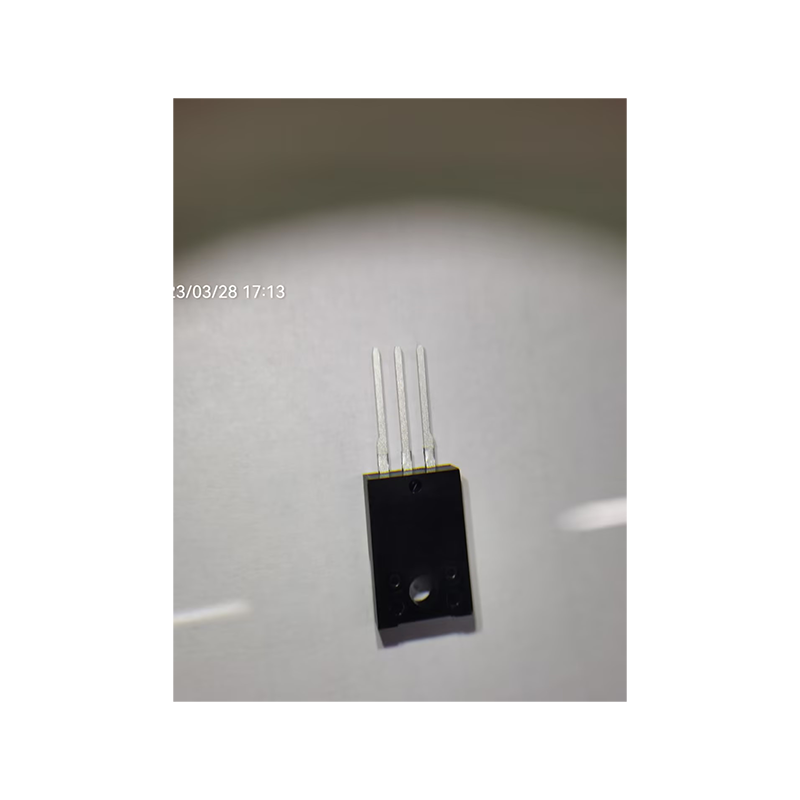

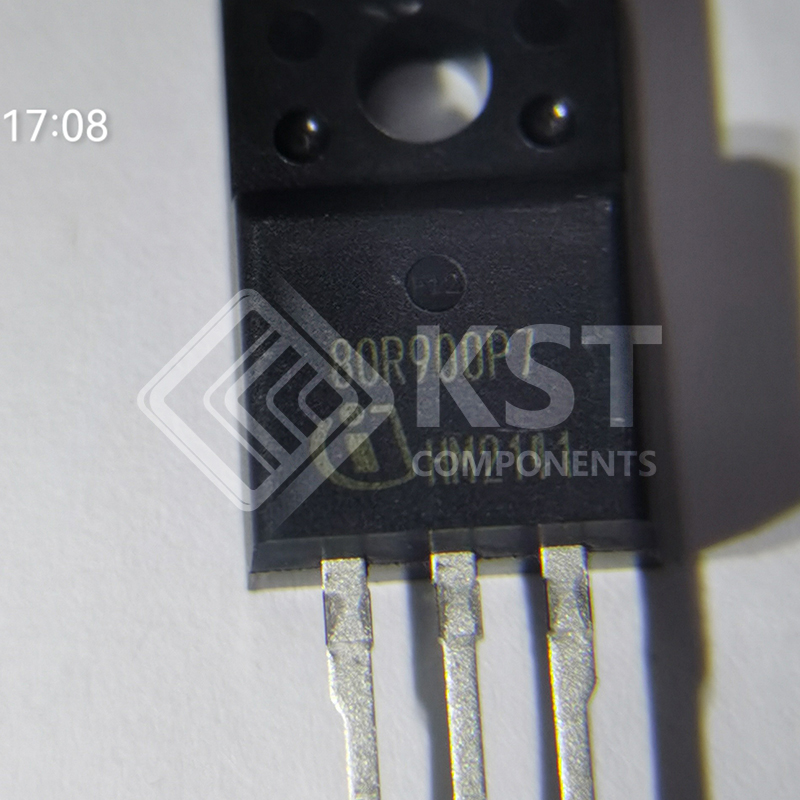

IPA80R900P7XKSA1
INQUIRY ONLINE
|
Category
|
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr
|
Infineon Technologies
|
|
|
Series
|
CoolMOS™ P7
|
|
|

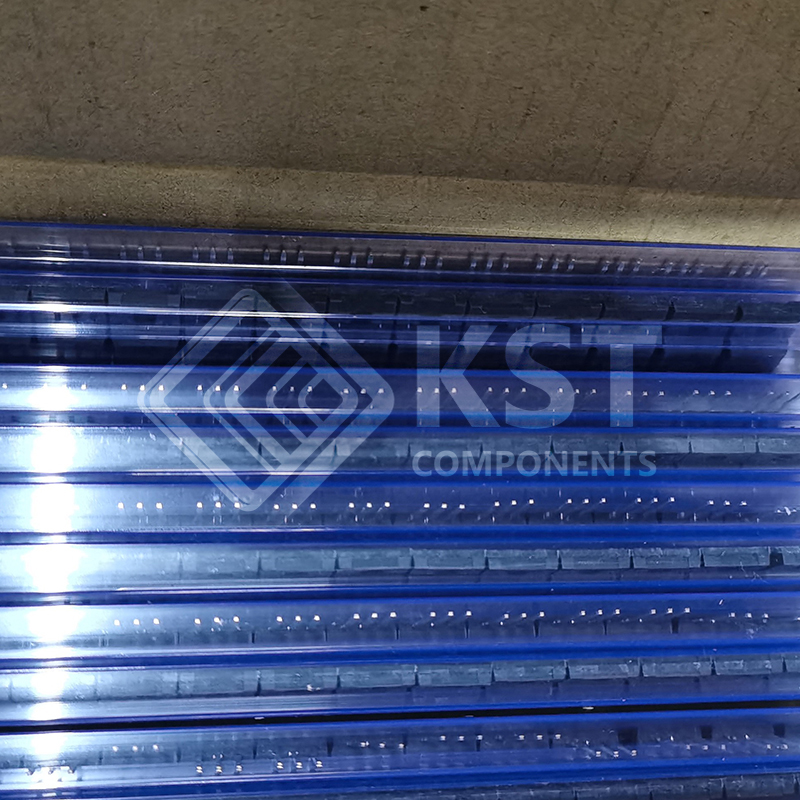

Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
FET Type
|
N-Channel
|
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
|
Drain to Source Voltage (Vdss)
|
800 V
|
|
|
Current – Continuous Drain (Id) @ 25°C
|
6A (Tc)
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
10V
|
|
|
Rds On (Max) @ Id, Vgs
|
900mOhm @ 2.2A, 10V
|
|
|
Vgs(th) (Max) @ Id
|
3.5V @ 110µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
15 nC @ 10 V
|
|
|
Vgs (Max)
|
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
350 pF @ 500 V
|
|
|
FET Feature
|
–
|
|
|
Power Dissipation (Max)
|
26W (Tc)
|
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type
|
Through Hole
|
|
|
Supplier Device Package
|
PG-TO220-3-31
|
|
|
Package / Case
|
TO-220-3 Full Pack
|
|
|
Base Product Number
|
IPA80R900
|
